TN40 Trapezoidal Roof Panel Roll Forming Machine With PLC Control System

TN40 sheet roll forming machine is a common roof sheet roll forming machine, but the finished products are used mainly in European and Africa market.

Metal sheet roll formers are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here.

Quick Detail:

Thickness : 0.4-0.8mm

Material : G550, pre-painted sheets

Input width : 1250mm

Coil ID: 508mm

Effective width:1000+/-4mm

Material weight: 5Tons cap.

Certificate : CE by TUV

Driven motor: by 7.5Kw or 11kw motor with gear box or higher

Cutter Material: Cr12, heat treatment

Description/Technical Parameter details of complete line:

  • 5TX1250mm Hydraulic Un-Coiler

Hydraulic system to expand coil inner hole, Pump motor: 3KW

Coil Inner-diameter= 510±30mm

Load Capacity: Max. 5 Tons, Coil Width Max. 1250mm

Taper wedge expand type

Driving motor to turn the coil, 3KW,

Delta/Schneider brand inverter

Other design such as snubber arm /support arm/coil car as per request

  • Entry bench & Manual Pre-shearing device

to cut off the end of the final piece of sheet only

Working thickness: max. 0.8mm

  • Roll forming machine with cutting details as below table :
Suitable roll forming material Color steel sheet or galvanized steel sheet, G550
Thickness 0.4-0.8mm
Coil feed in width 1219mm
Carriage Frame design Wall-plate-frame-design or stand frame desig
Roll forming stages 24 stages
Material of forming roller 45# steel, CNC lathes, Hard Chrome Coated
Shafts Diameter Φ75/95mm
Main motor power 7.5Kw with reducer
Line speed of roll former 15m/min or higher
Hydraulic group power 4.0 Kw
Cutting material Cr12, hear treatment
Electric Voltage Standard 415V/50Hz/3PH or as request
Major Painting Color Customized and RAL5015 as standard
  • PLC Control System

Cut to length control

Cut-to-length tolerance≤±1mm

Siemens brand PLC and touch screen, Schneider/ Shihlin/ Delta brand Inverter, Omron encoder

Schneider brand low voltage electric elements

  • Product Rack 3 units, no power rack

Normally, the full mesh around un-coiler and the roll forming machine and cutting device is required as the CE request, the interlock and safe relay is also included.

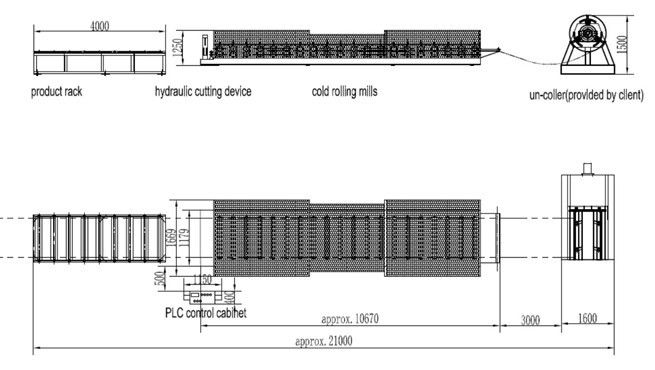

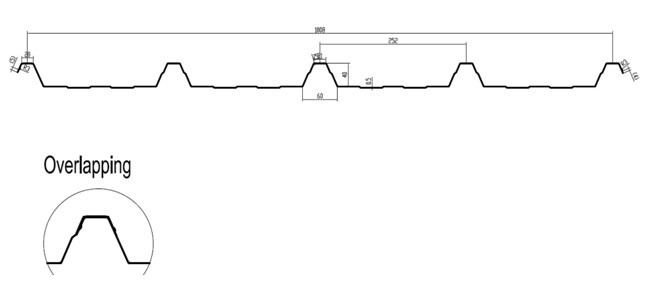

Profile Drawing/Layout/Equipment reference pictures:

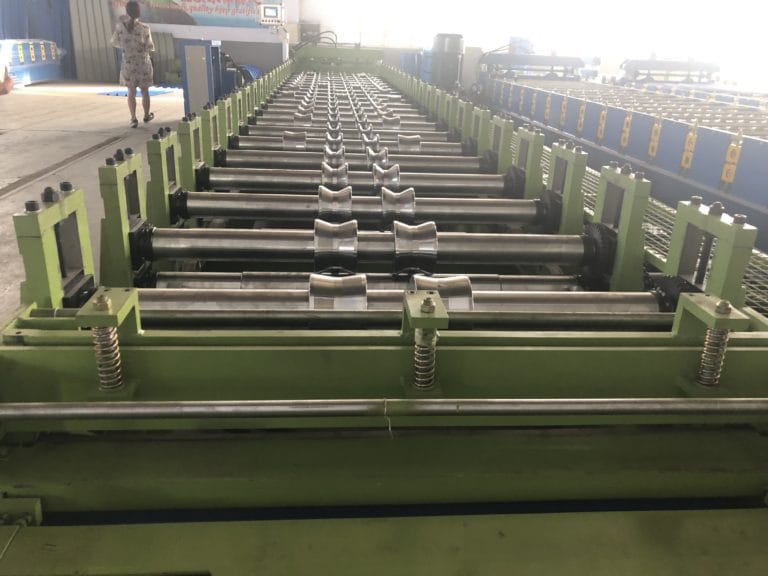

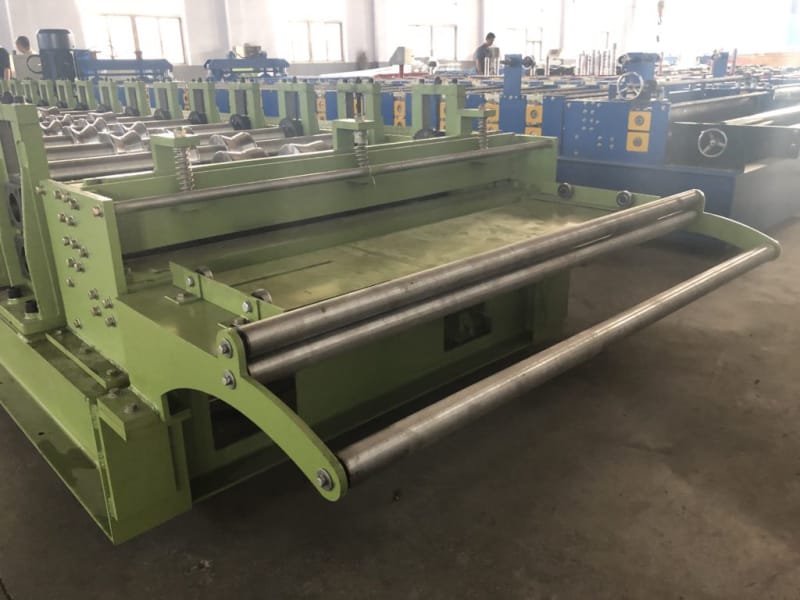

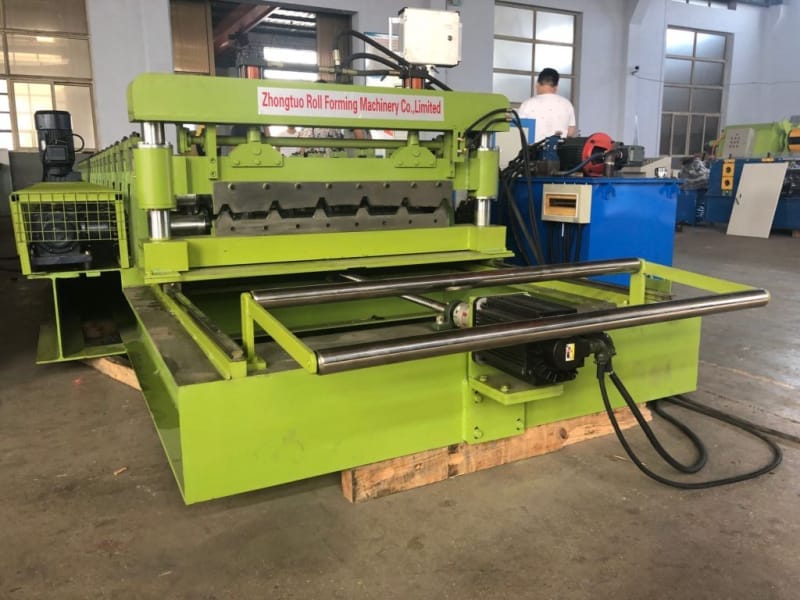

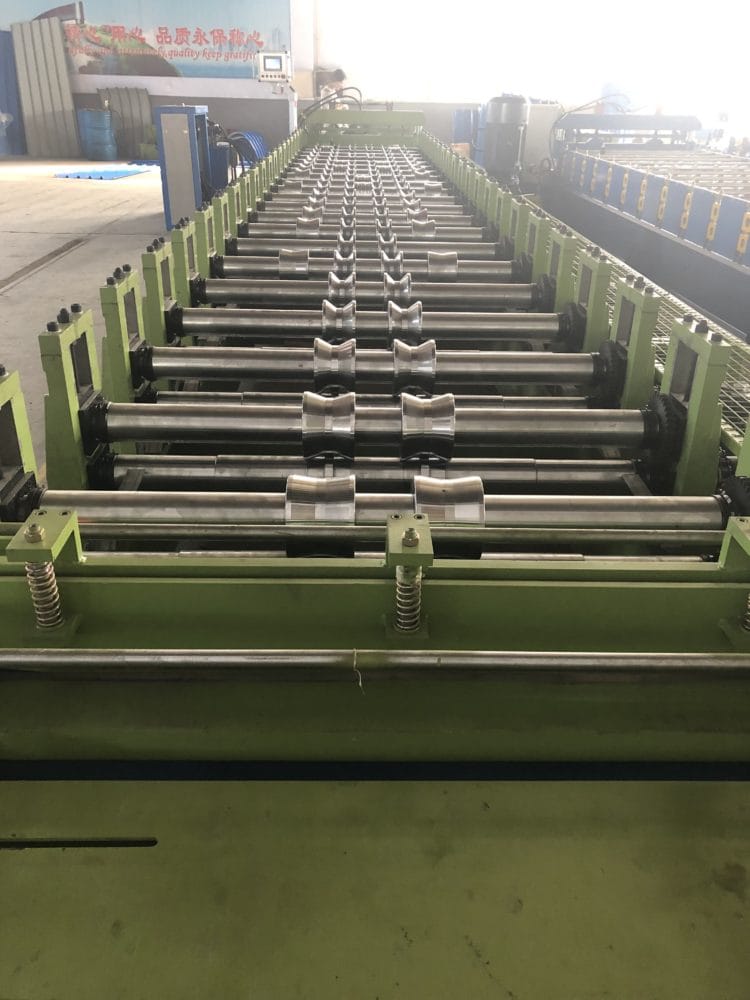

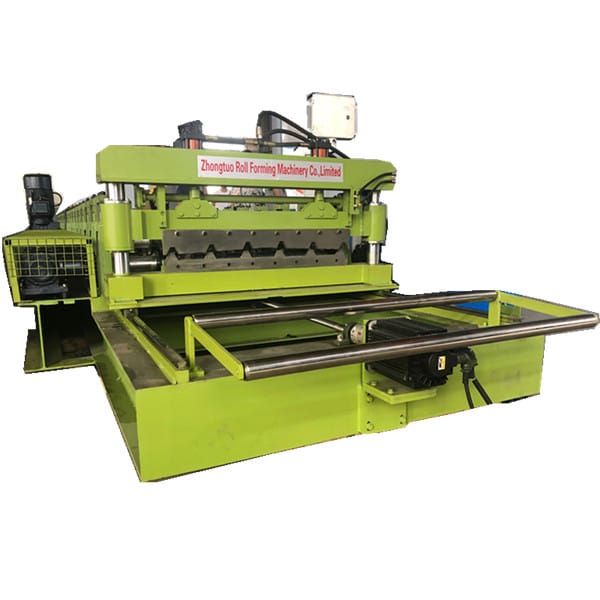

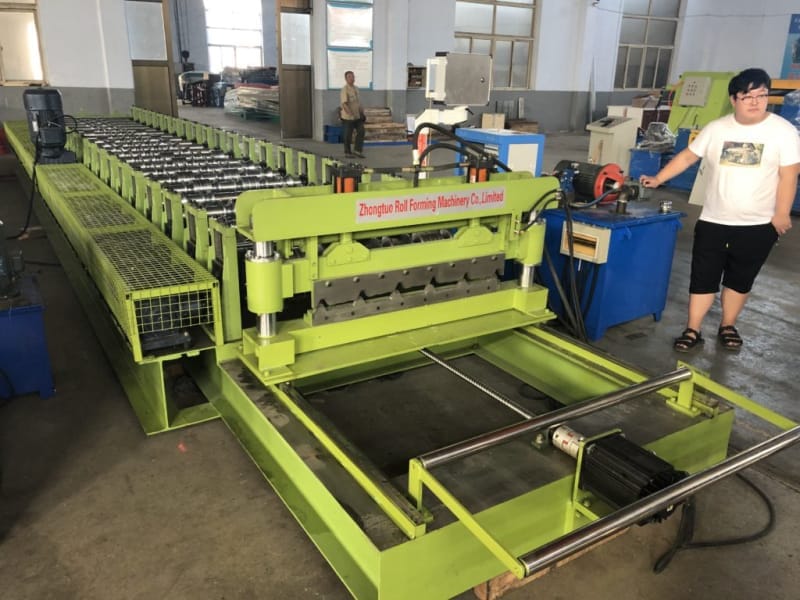

More pictures of TN40 roof panel machine:
