Floor and Roof Deck Roll Forming Machine

Metal decking is used in a wide variety of commercial and industrial applications. It includes steel roof and floor decking, aluminum floor decking, and acoustical metal decking. Metal decking typically has a ribbed or corrugated profile that is achie
Products Inquiry

PRODUCT INFORMATION

Steel Structure Floor Deck Roll Forming Machine for Colombia
metal deck systems,metal decking,metal decking types‎,forming machine,steel decking sheets,metal decking panels,metal floor decking panels,metal decking machine,decking machine,metal deck roll forming machine,steel decking floor,floor steel decking,floor deck roll forming machine,lotosforming,roll form,roll form machine,roll former,roll forming,roll forming machine,roll forming process,rollform machinery,rollforming

For the steel structure building, if we want to make a multi story or single story steel building there are many components that you have to consider. From the frame, walls, roof, floor and so on, the engineer has many factors that need to be accounted for. Metal decking floor system is one of the system. There are many ways to design and construct a stronger metal decking floor system. Here we take an machine of metal decking rolling machine for Colombia for example.

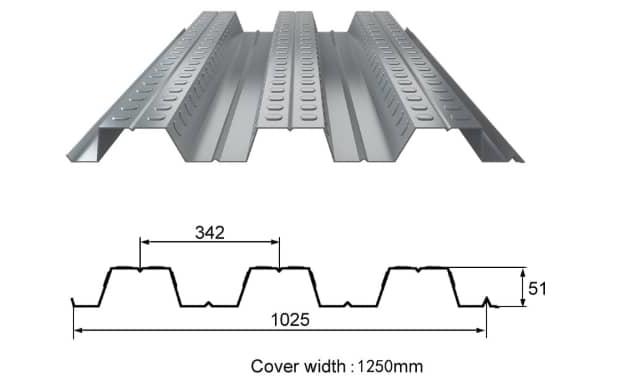

Most of your options to make the floor system stronger require adding extra weight, which has an impact on other aspects of the building such as the steel framingHere is the metal decking drawing profile for your reference:

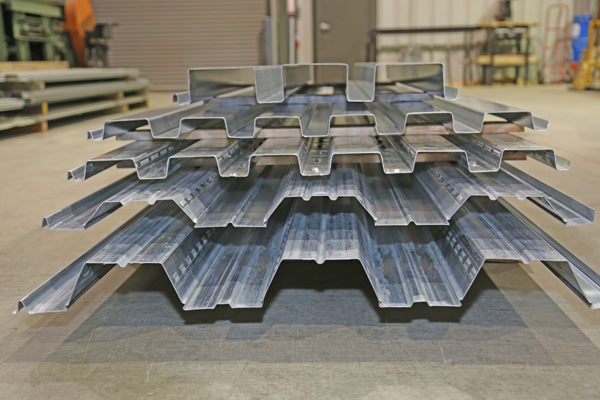

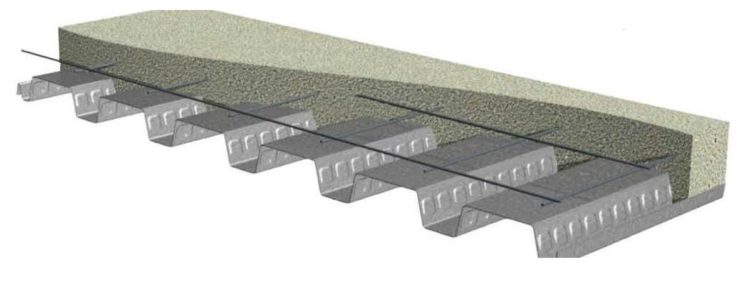

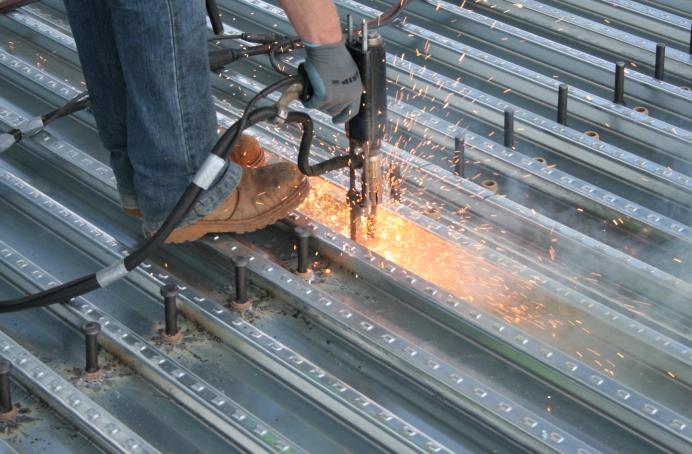

How metal decking is used in our life?

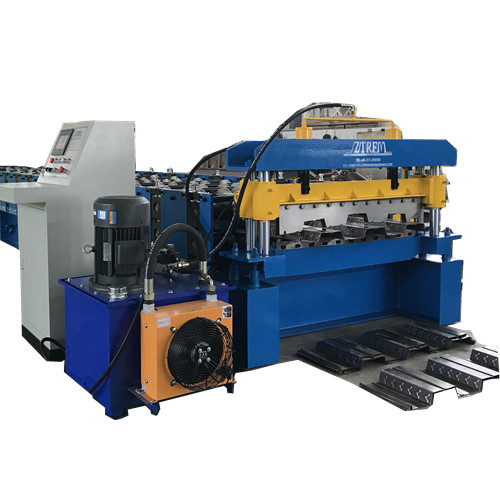

Zhongtuo Steel Structure Floor Deck Roll Forming Machine



Steel Structure Floor Deck Roll Forming Machine for Colombia parameters for your reference:

Technical Proposal

  1. Material: Steel, GI, hot rolled or cold rolled
  2. Material Thickness: 0.7-1.2mmor some to 15mm, it is also okay.
  3. Main roll forming machine Power: 15KW*2sets
  4. Motor: Siemens
  5. Forming Speed: 12-13m/min
  6. Machine size: 14000*1700*1500mm
  7. Machine weight: 15000KG
  • Main Partsof metal decking machine.

1.5T Hydraulic Decoiler with cart or you can use manual or 10 Ton.

  1. Hydraulic feeding table
  2. Hydraulic sheet pre-cutting unit
  3. Roll Forming System
  4. Hydraulic stop cutter
  5. Control system
  6. Output table

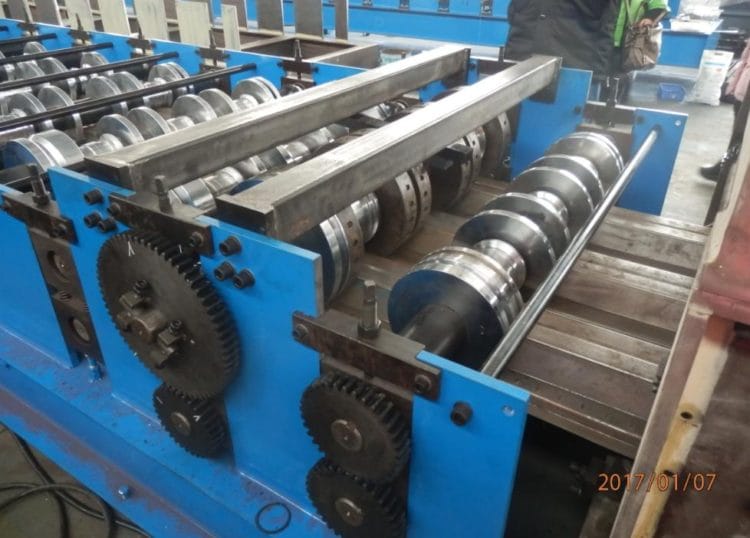

More detail pictures of Steel Structure Floor Deck Roll Forming Machine:

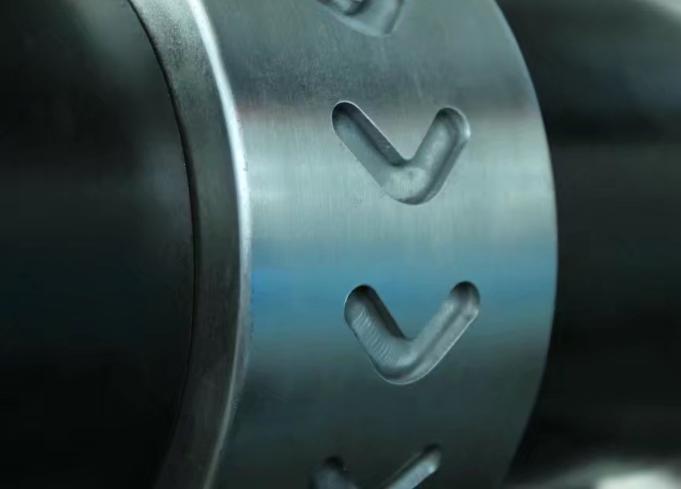

Embossing rollers:

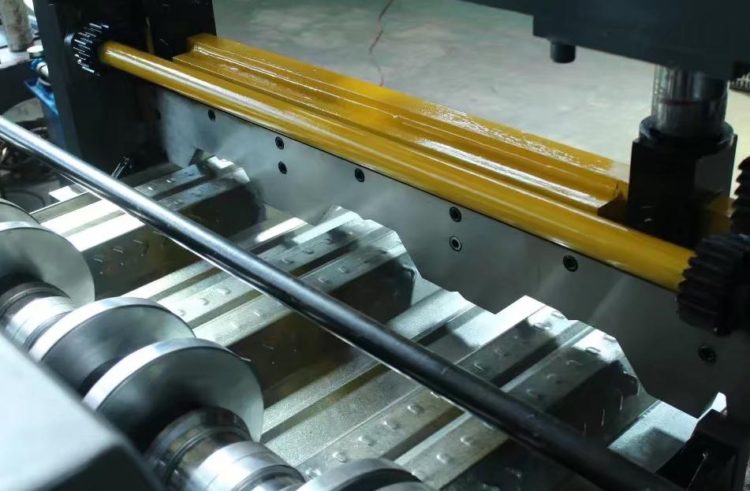

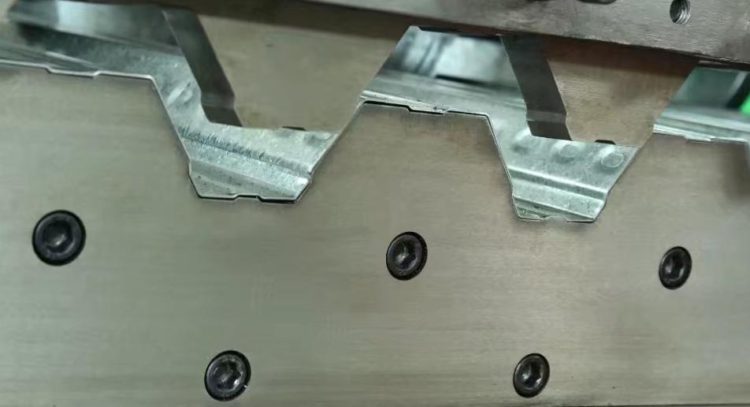

As to the cutting part of the metal decking machine:

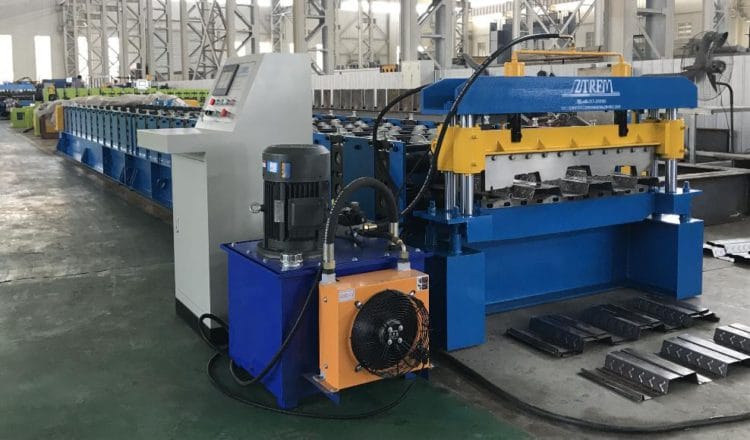

Here are some metal decking machine pictures for your reference:
