Roofing Sheet Making Machine For Algeria
Detailed Product Description
Basic Info
| Model No.: ZT | Tile Type: Colored Steel |
| Certification: SGS, CE, ISO | Condition: New |
| Customized: Customized | Usage: Roof, Wall, Floor |
| Transmission Method: Hydraulic Pressure | Control System: PLC Control |
|
After Sale Service: Engineer Available To Service Machine Abroad |
Certificate: CE/ISO9001 |
| Transmission: By Chain | Width Of Material: Accroding To Client’s Request |
| Cutting Device: Hydraulic Cutting | Payment: By T/T |
| Package: With Water Proof Paper | Warranty: 5 Years |
| Product Name: Glazed Roof Sheet Forming Machine | |
Additional Info
|
Packaging: Main machine is packed with water proof paper, the computer control box is packed by carton box |
Productivity: 30 sets per month |
| Brand: KAIYITE | Transportation: Ocean,Land,Air |
| Place of Origin: China | Supply Ability: 30 sets per month |
| Certificate: ISO9001/CE | HS Code: 84552210000 |
| Port: Tianjin Port,Shanghai Port,Qingdao Port | |
Product Description
Roofing Sheet Making Machine For Algeria
Some client want to know what the roofing sheet making machine is . Actually this equipment belong to the cold bending machinery . It can form the metal roof sheet ( the roof sheet profile is according to the client requirement) by pressing several steps . The Metal Roof Roll Forming Machine has the PLC control system , we can set the length and pieces by entering the data in the PLC , so that the machine will cut the roof sheet into the setted length and quantity .

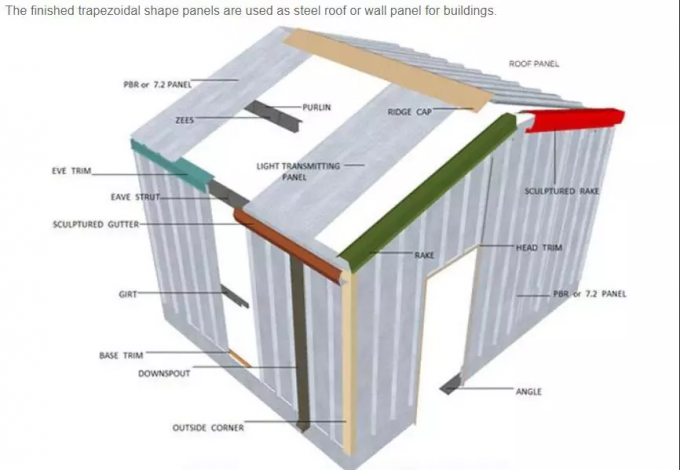

The following picture can help you understand much better for the application of the roof profiles
Profile And Finished Roof profile by the Metal Roofing Panel Machine

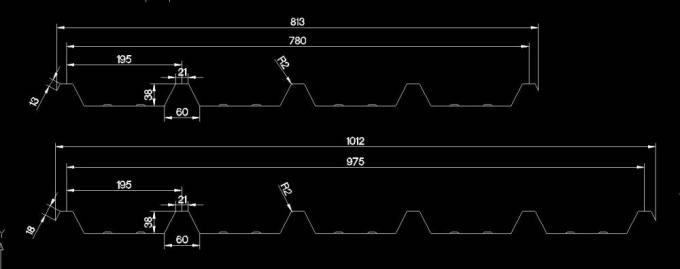

The following drawing is designed for the Algeria client , depend on his needs , one machine can make the two different profiles . This profiles is very popular in Algeria .
Also the other advantage of this Roof Panel Roll Forming Machine is its speed , we adopt the gear box transmission system . so that it can reach 35 meter per minute , very fast compared with the common machine . Because the common machine can only reach 8-12 meter per minute . If the client has a large demant of the profile , this design is a good choice for you .
Main Specification Of Roof And Wall Panel Roll Forming Machine
| No. | Type | Specification | |
| 1 | Row Material | Type | Aluminum / Steel / Galvanized Panel |
| Feeding width | 1200mm | ||
| Thickness | 1200mm | ||
| 2 | Main body | Roller station | 22 Steps |
| Diameter of shaft | ￠105mm | ||
| Shaft material | 45# Steel , Heat Treatment and Polishing | ||
| Roller material | 45# Steel , Heat Treatment and Polishing | ||
| Frame | 400mm H Steel | ||
| Frame thickenss | 22 mm | ||
| Operation | Manual and Automatic | ||
| Working speed | 30-35m/min | ||
| Size (L*W*H) | About 11500*1650*1450mm | ||
| Weight | About 3.5 Tons | ||
| Cutting type | Hydraulic cutting | ||
| Material of blade | Cr12, HRC60-62°C | ||
| 3 | Power | Motor power | 15 kw |
| Hydraulic power | 4 kw | ||
| Voltage | 380V 50Hz 3phases or Customerization | ||
| Driving way | Gear box | ||

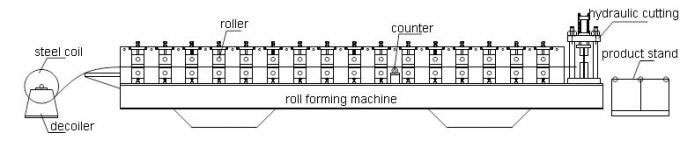

Working Flow Of metal roof panel machine
5 Tons Decoiler — Panel Feeding And Guiding Table — Main Roll Forming Machine — PLC Control System — Hydraulic Cutting Device — Product Receiving Table

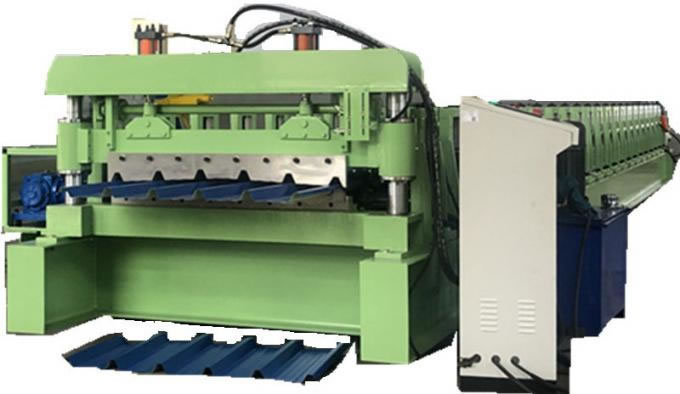

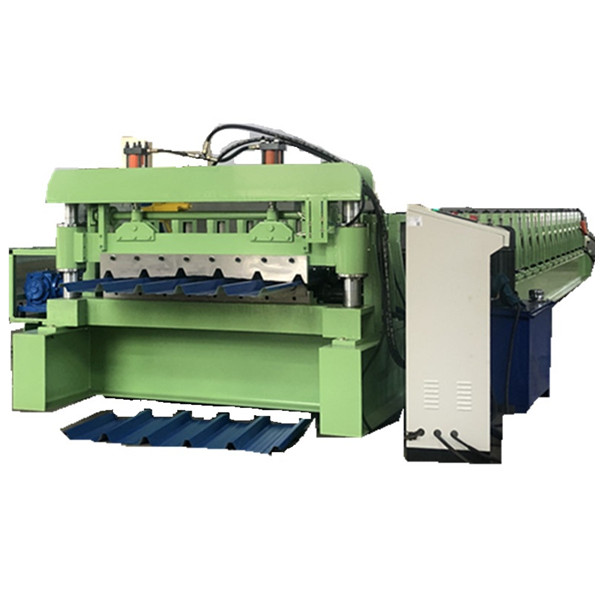

More picture of the metal roof roll forming machine
When we ship the roof panel machine to you , we will also send the client the necessary spare parts .
* 5T Decoiler………………………………1 Set
* Discharge Table………………………………2 Set
* The tool box ………………………………..1 set

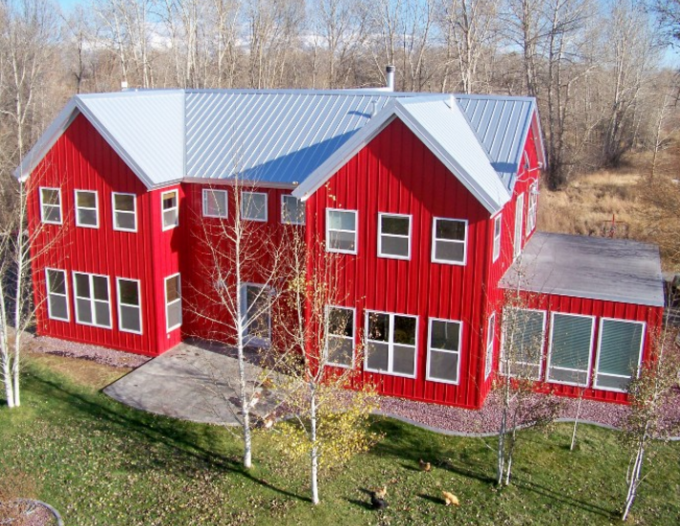

Application
This type of sheet are widly used in warehouse, workshop, roofing and other part. It has a large market.
Loading And Shipping
* We will packed water proof paper on the machine .
* This Glazed Tile Roll Forming Machine need 1*40 GP container to load .
* Fix machine by steel wire rope, to ensure it will not damage when shaking on sea.
* We will take photos and videos for customer when loading to container .
