ZT28-252-1010 Profile Roof Panel Roll Forming Machine is designed for making the metal roof panel sheet production in batch fully automatically. Metal profile ZT28-252-1010 is designed as:

The wave height is 28mm, the wave distance is 252 and the effective width is 1010 and we use the input coil width is 1200mm. And this metal profile is popular in Europe, and other counties.

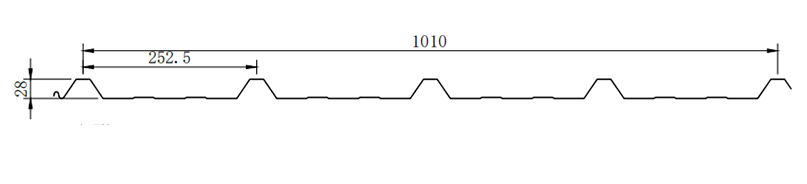

ZT28-252-1010 Profile Roof Panel drawing profile for your reference:

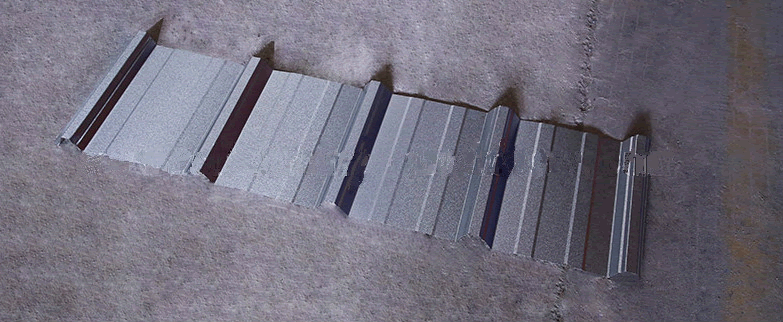

Finished product profile:

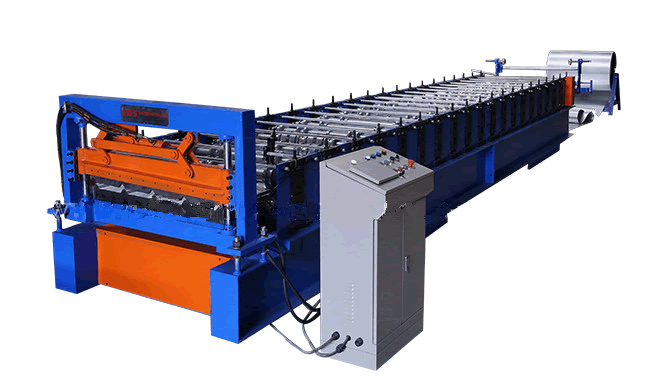

Based on the customer requirements and our experience, we design the ZT28-252-1010 Profile Roof Panel Roll Forming Machine like following picture:



The ZT28-252-1010 Profile Roof Panel Roll Forming Machine is composed by the following elements:

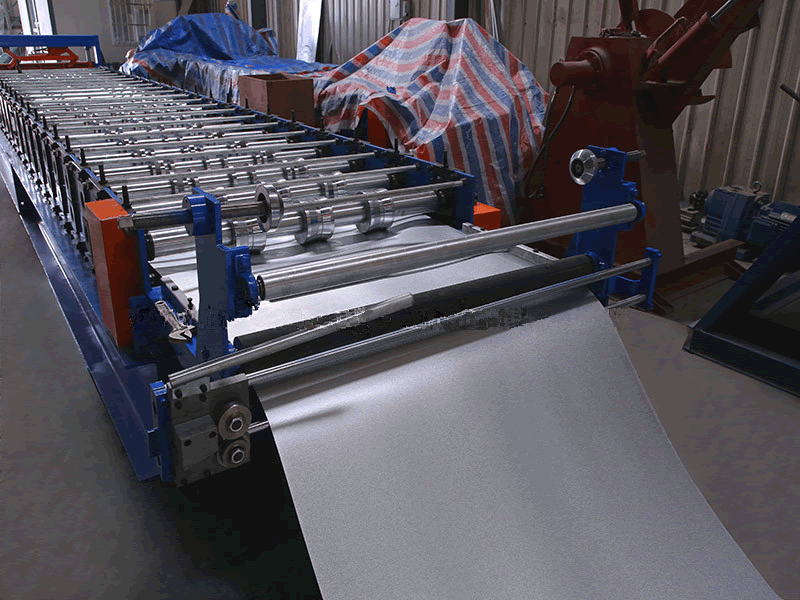

1.Roof panel machine pre-cutter

With manual pre-cutter for easy operation and save material:The pre-cutter is

connected with PLC control system,PLC is calculating profile length within roll

forming. Once material is required to change,PLC is calculating the length for

total quantity and remind operator production finishes and able to manual

shearing material before roll forming so as to change material for new

production.It is the advanced function and good for production to save

material, no waste.



2. Main Machine

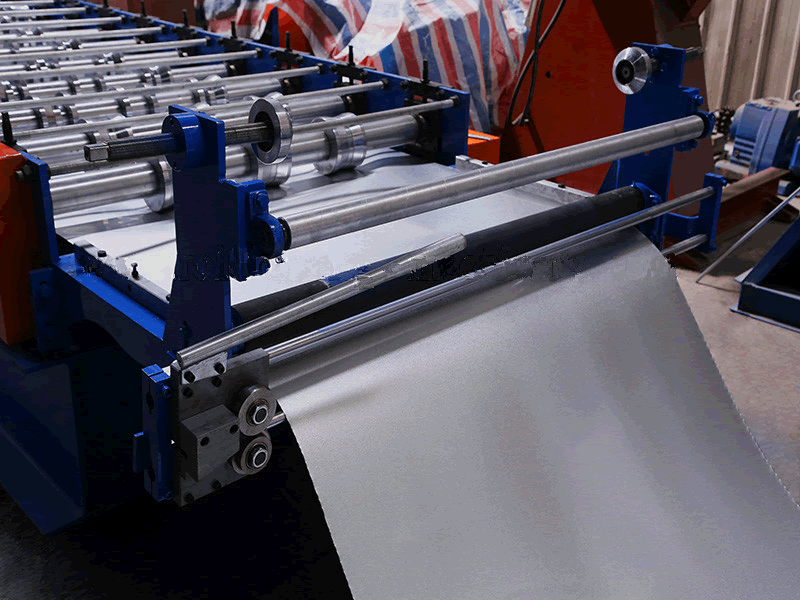

With feeding material guide, body frame made from H450 type steel by welding.

Side wall thickness: Q235 t18mm.

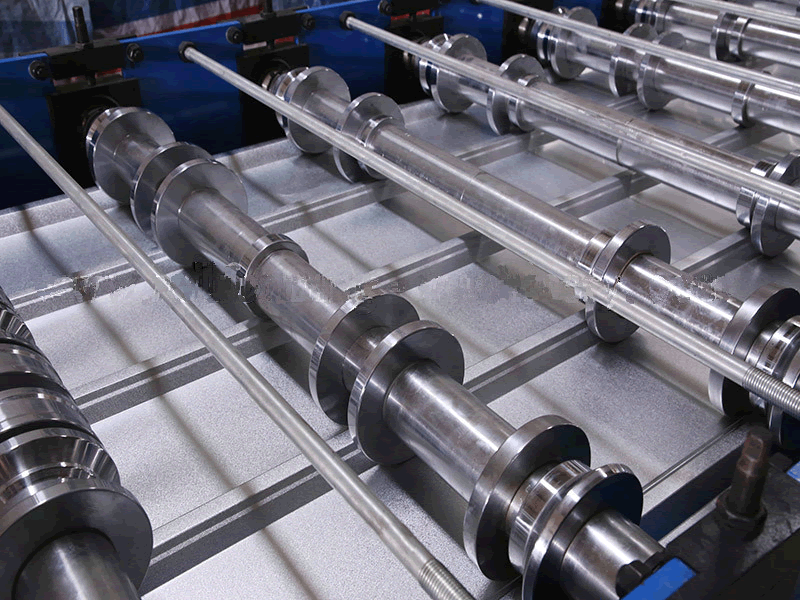

Rollers manufactured from 45# steel,CNC lathes,Heat

Treatment,hard Chrome Coated.

with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust).

Shafts Diameter=p80/95mm,precision machined. .

Gear/ Sprocket driving,about 18-step to form.

Main Motor=7.5KW , Frequency speed control.

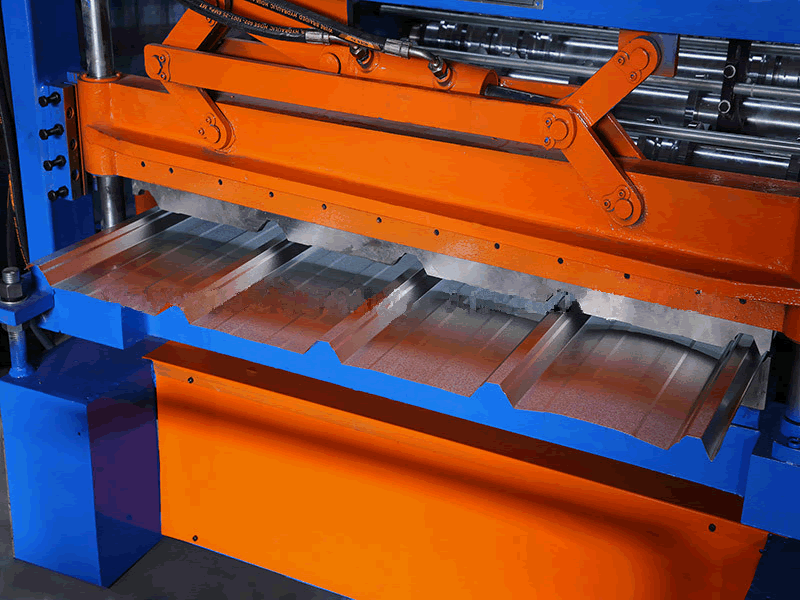

3.Shearing part of ZT28-252-1010 Profile Roof Panel Roll Forming Machine

It takes high quality mold steel Cr12 with heat treatment and the frame made from high quality 20mm steel plate by welding. The power we design Hydraulic motor:3KW, Hydraulic pressure range: 0-16Mpa



4.PLC operation system:

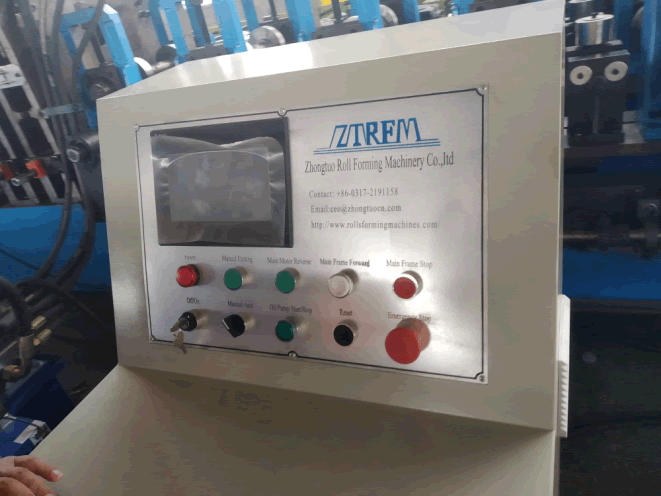

roof panel machine touching screen and control panel(Button brand :Schneider / screen brand Schneider)



ZT roofing panel machine advantages as follows:

1.Low cost, light weight but high strength, short building period, and re-cycle use

2. Save material ,no waste.

3.Easy operation, low maintenance cost

4. .Able to deal with stainless material
