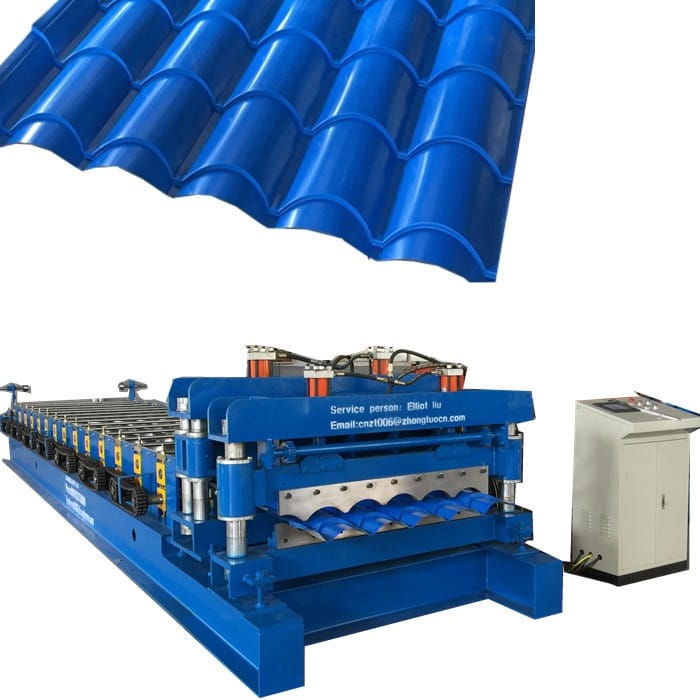

Zhongtuo Powerful step tile roll forming machine At Low Prices

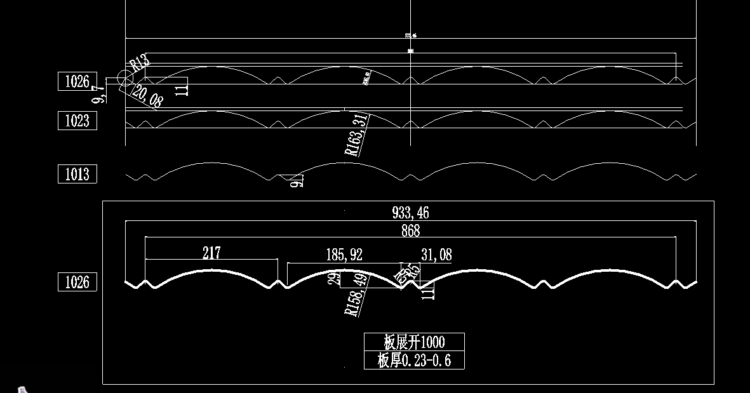

Zhongtuo Step tile roll forming machine is designed to produced the metal step tiles, which are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here. Here we take a random popular design in South American for your reference:

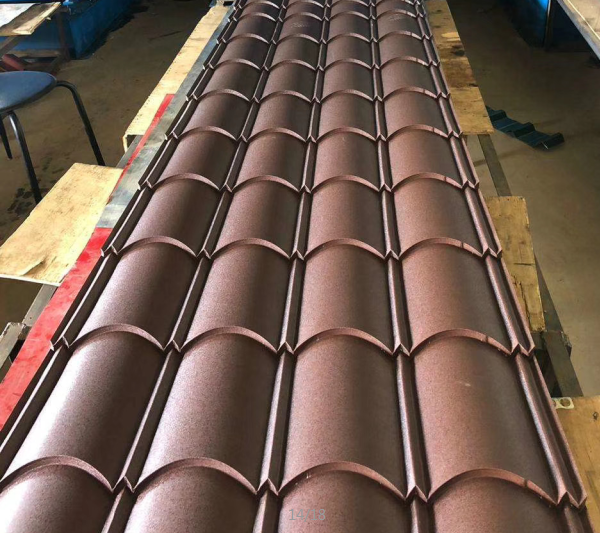

Zhongtuo Step tile roll forming machine can rollform aluminium or steel metro copo roof step tiles. After roll formed by this corrugation machine, the surface of finished metecoppo steptiles are very smooth and beautiful without any scratch on the surface of metro cop step tile profile sheets. The metcopo step tile roof sheet production line is with fully automatic control system with PLC from Japan. The parameters of length, quantity of sheets is adjustable.

Here are some parameters for your reference:

Technical Information

Items Metro Copo Steptile Roof Sheet Corrugation Machine
Material Thickness 0.4-0.6mm
Coil width 1200mm
Yield Strength 235 Mpa
Material Aluminium Coils, PPGI, Color Steel, GI.
Decoiler / Uncoiler Uncoiler Type Manual or Hydraulic or Auto Type
Coil Width Max. 1250mm
I.D 508-610mm
O.D Max. 1500mm
Flat Sheet Rolling Mill Forming Stations 14 Stations ( Depend on Profiles )
Roller material 45# steel coated with 0.05mm hard chrome
Diameter of shaft 72mm
Shaft material High grade 45# steel
Drive type Chains transmission
Forming speed 4-6m/min
Main power 7.5KW
Step Pressing Device Pressing Type Hydraulic type pressing
Pressing Mould Cr12 Mov steel, HRC58-62
Automatic Cutting Device Cutting type Hydraulic cutting
Cutting Die Material Cr12Mov steel, HRC58-62
CuttingTolerance 10m+/-1.5mm
Encoder OMRON Brand
PLC Electrical Control Board PLC Mitsubishi from Japan
Inverter Mitsubishi from Japan
Touch screen Mitsubishi from Japan
Operation type Touching screen & Buttons
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic Power 5.5KW
Runout Tables Table type Simple unpowered type
Function To support the finished panels

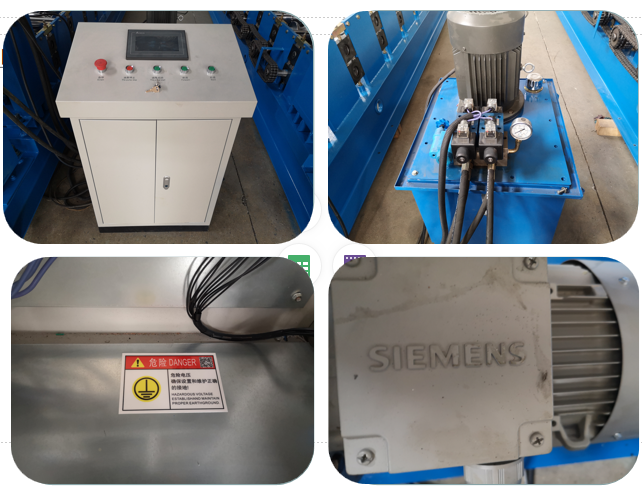

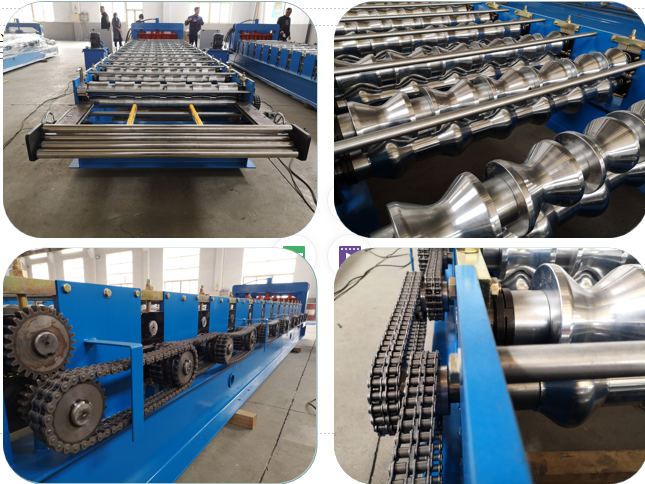

Here are more details of the machine for your reference:

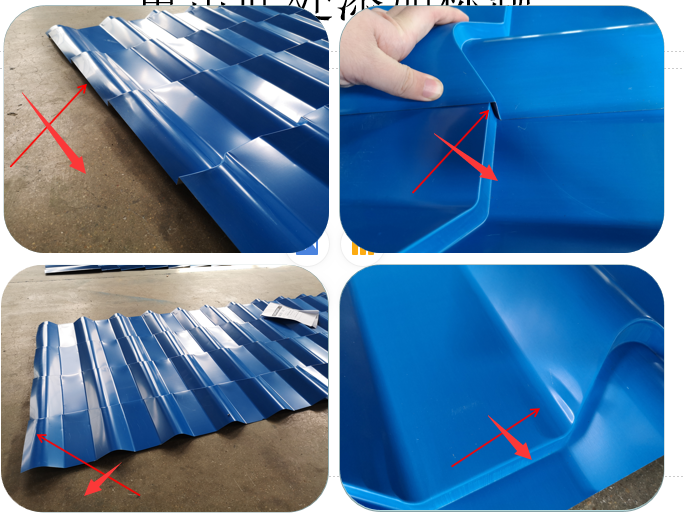

Here we check some pictures to check, if the machine not good, which kind of product will make:

So for the metal step tile rolling forming machine, quality is very important, or else you make the machine wasting your coil.
