Portable Standing Seam Roofing Machine Roll Forming Machine

Category: roofing machine
Products Inquiry

PRODUCT INFORMATION

Adjustable Size Portable Standing Seam Roofing Roll Forming Machine

This Adjustable Size Portable Standing Seam Roofing Roll Forming Machine is a complete, new molding processing equipment. Mainly includes Decoiler,Main forming Machine,Electric control cabinet,And related attachments.

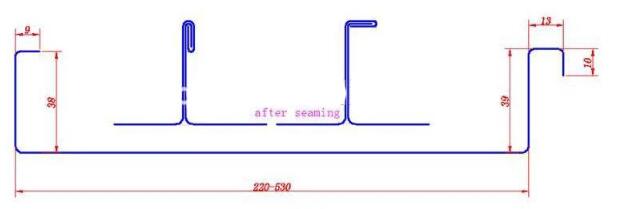

the drawing profile for your reference:

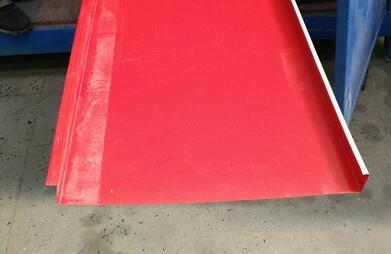

Finished product profile:



The Adjustable Size Portable Standing Seam Roofing Roll Forming Machine is used to make unexposed screw roof panel.
Firstly, the standing seam roof panels have a hidden fixing or seaming method by turning upward the edges of two adjacent panels, and then folding or interlocking them.  In this way, the seaming or fixing parts are invisible,  so sometimes we called the panels hidden fixing panels!
The material thickness varies from 0.4-0.8mm But some other hidden fix standing seam roofing are thicker from 0.8-1.2mm.

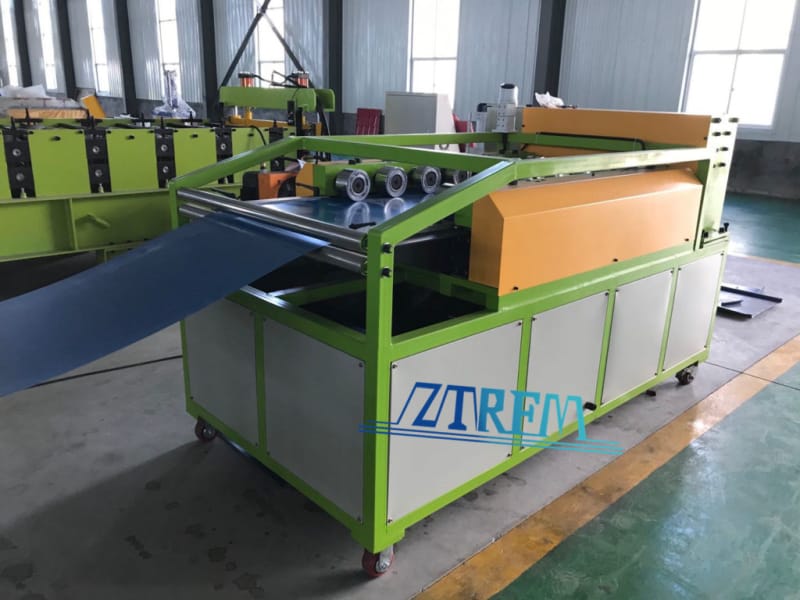

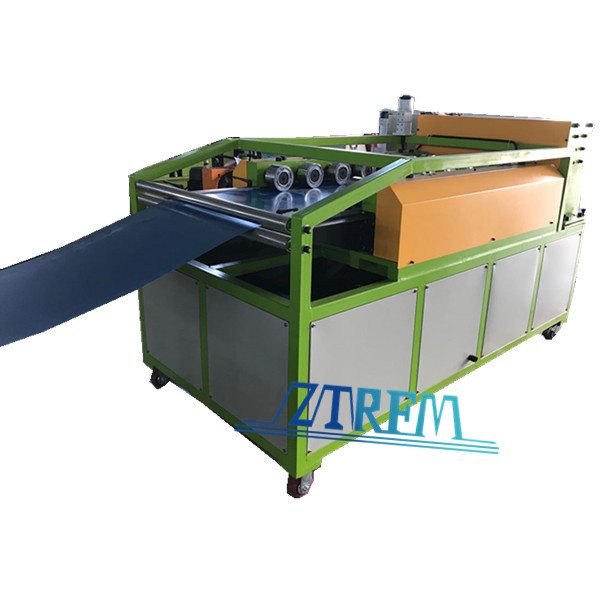

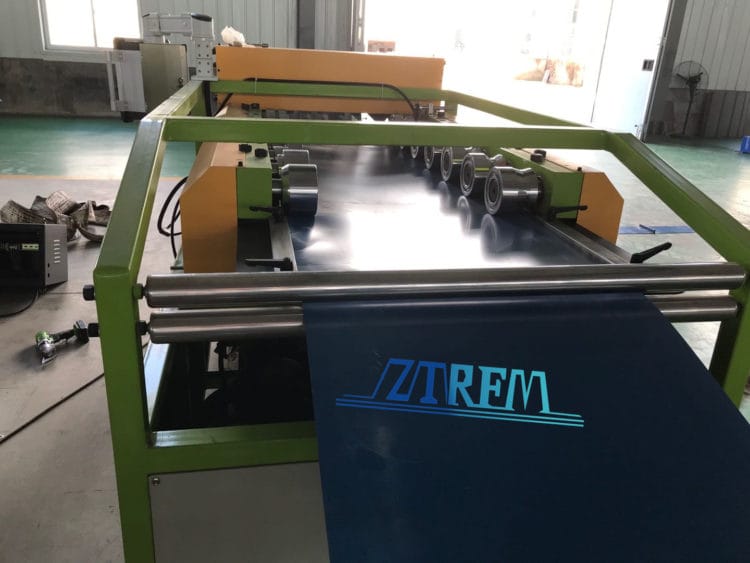

So based on those drawing profile, we design the Adjustable Size Portable Standing Seam Roofing Roll Forming Machine like the following:



The Main Technical Parameters of Adjustable Size Portable Standing Seam Roofing Roll Forming Machine:
Main Technical Parameters And Range Of Application
Motor Power 3KW
Press Thickness 0.6-0.9mm
Wheel Gear Box Horizontal gear reducer
Rolling Raw Material PPGI
Type Of Transmission By chain
Feeding Material Width 290-600mm

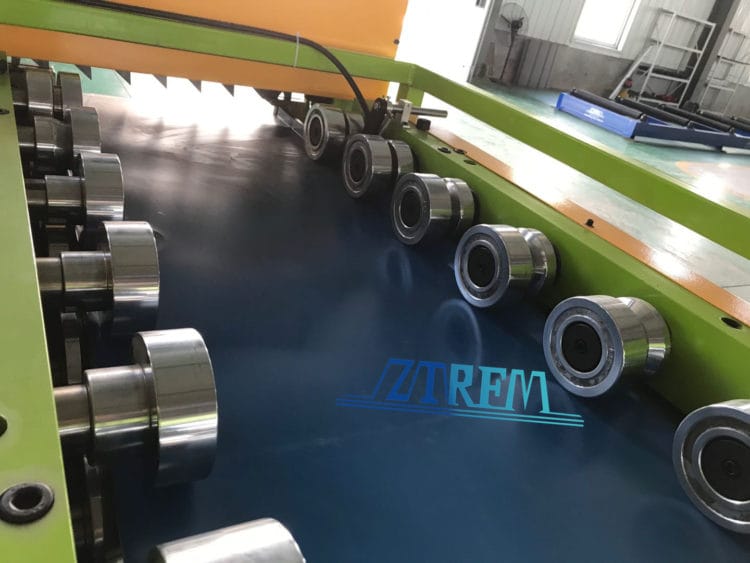

Forming Stations 8 Stations
Forming Width 220-505m
Roller Material CNC S45C Steel with hard chrome coating
Forming Speed 0-12m/min(not including cutting time)
Cutting Blade Material Cr12
Cut-length Gauging The rotary encoder measures the length,
OMRON From Japan
Hydraulic Power 2.2KW

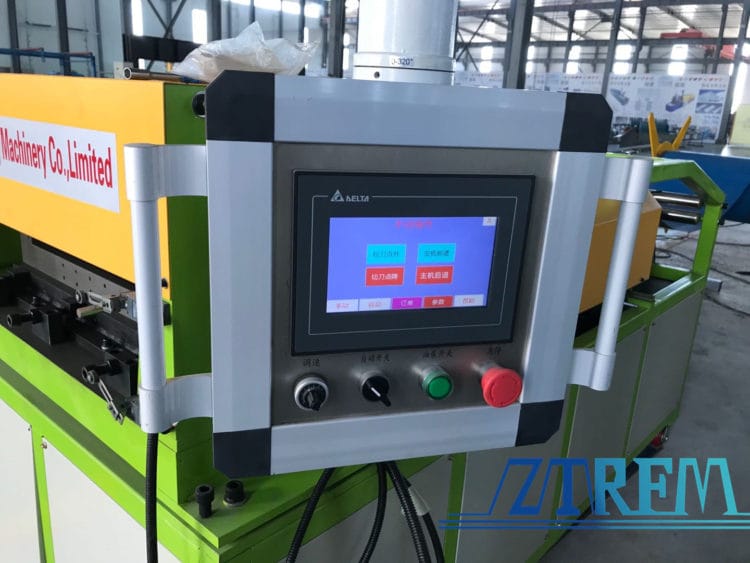

Electric Control Panasonic PLC frequency control,
Vinlon touch screen operation
Weight Of Machine About 1.2 Ton
Brand Of Electric Spare Parts Low voltage electric : Schneider
Size of the machine About 2.8m×1.3m×1.2m
Working Voltage 380V, 50HZ, 3phrase

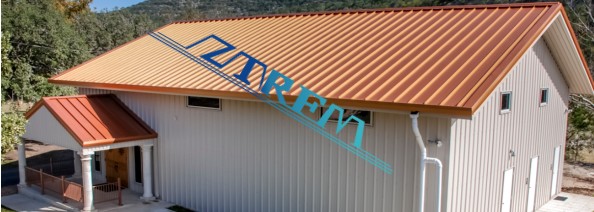

Where the metal panel is used and how the application scence:

ZT MACHINE give good after-sale service.

  1. The warranty of Portable Standing Seam Roofing Machineis 2 years after the client receives the machine. Within the two years, we will courier the replacement parts to the client free of charge.
  2. We offer technical support for the entire life of our machines.
  3. We can send our technicians to install and train the workers in the clients’ factories with extra cost.
