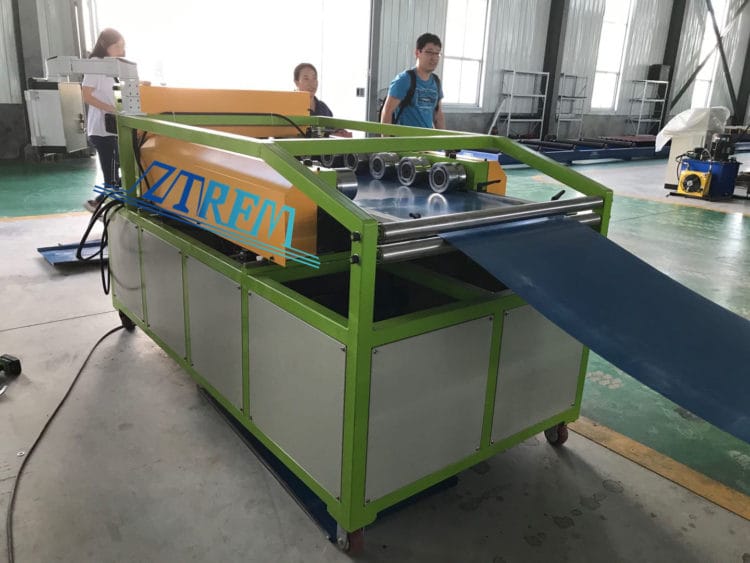

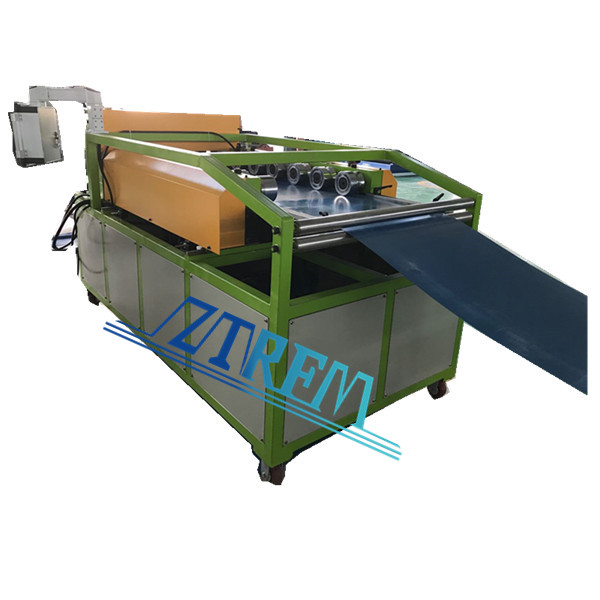

Portable Standing Seam Metal Roof Roll Forming Machine ZT25- 220-530
The Portable Standing Seam metal Roof Roll Forming Machine ZT25-220-530 is a complete, new molding processing equipment. Mainly includes Decoiler,Main forming Machine,Electric control cabinet,And related attachments.

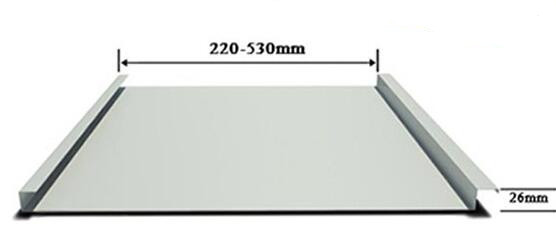

Finished product profile:
Based on the customer requirements and our experience,we design the Portable Standing Seam Roofing Roll Forming Machine like the following:
Specifications of standing seam roof panel machine
1)Main Techincal Data:
| Size |
ZT38-220-530
(hydraulic cutting) |
ZT25-220-530
(manual cutting) |
| Dimension | 2000*1300*1400mm | 2000*1300*1400mm |
| Weight | 1200KGS | 1200KGS |
| Motor Power | 1.5KW | 1.5KW |
| Hydraulic Power | 1.2KW | |
| Voltage | 380V/50HZ/3PH | 380V/50HZ/3PH |

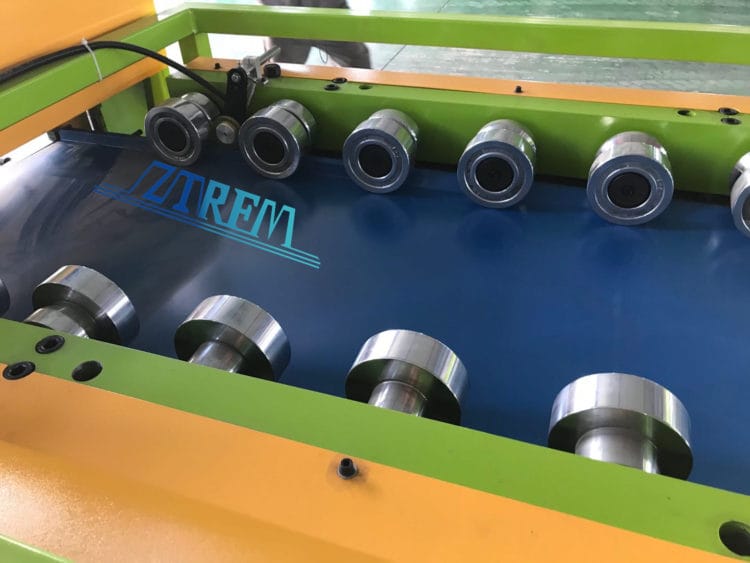

| Forming Steps | 6 steps | 6 steps |
| Forming Speed | 8-12m/min | 8-12m/min |
| Effective Width | 220-530mm | 220-530mm |
| Material of Width | 290-600mm | 290mm-600mm |
|
Material of AL-Mg-Mn,Galvanized Sheet
Thickness |
0.4-0.8mm | 0.4-0.8mm |
| Material Thickness | 0.5-0.8mm | 0.5-0.8mm |
| Standing Height of Roofing | 38mm | 26mm |
|
Thickness for common use
and testing machine |
0.6mm, 0.7mm(material: PPGI, GI, Aluminum) |
0.6mm, 0.7mm
(material: PPGI, GI, Aluminum) |
2)Main Accessories:

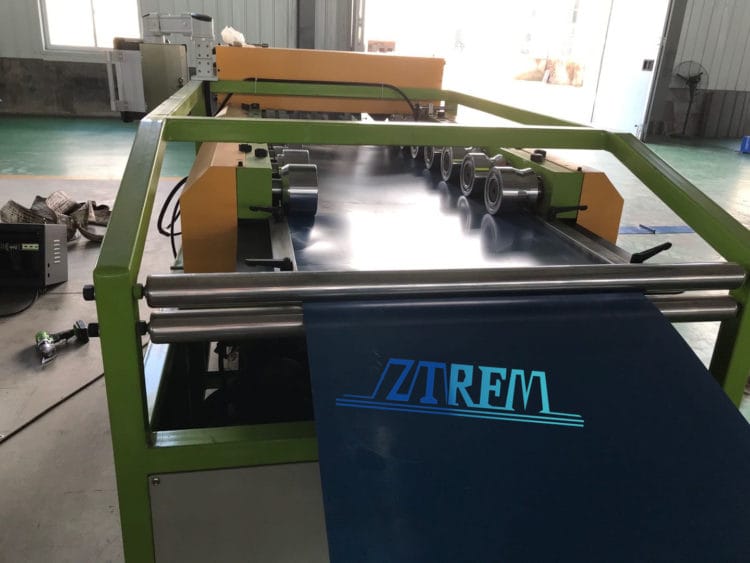

(1) Main Seamlock Roofing Forming Machine;

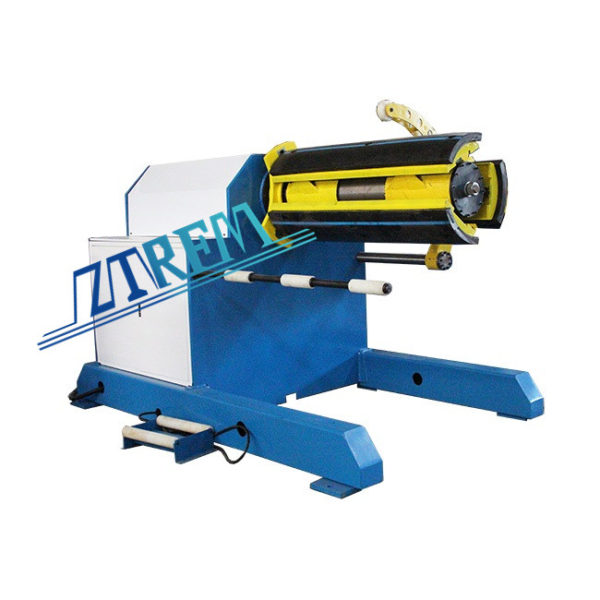

(2) Main uncoiler;

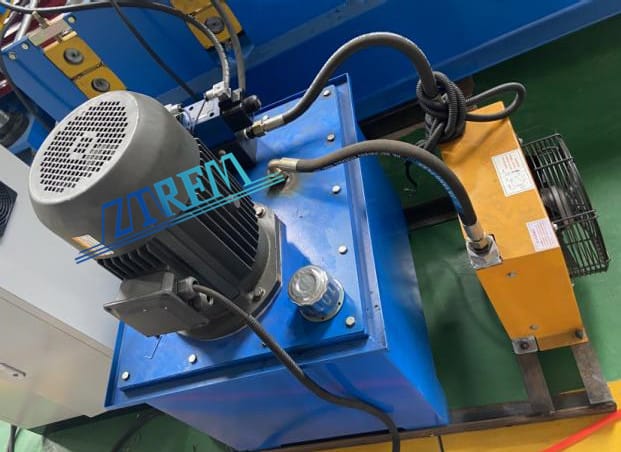

(3) Hydraulic System;

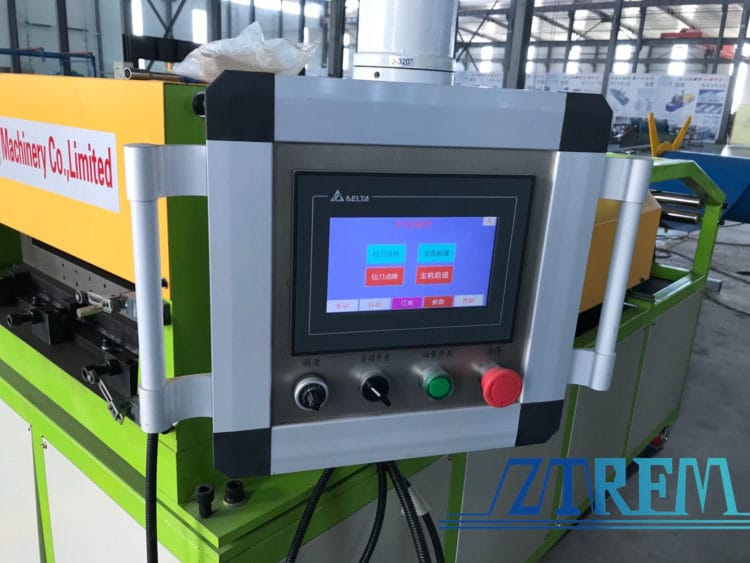

(4) PLC Computer Controlling System With Touch Screen;

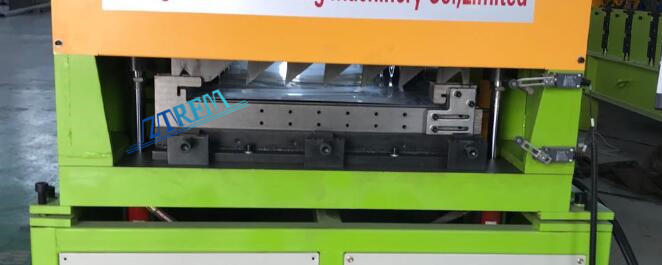

(5) Hydraulic Forming Cutter;
ZT MACHINE give good after-sale service.
