R Panel Roll Forming Machine

Introduction R Panel Roofing Panel Roll Forming Machine manufacture R Panel profile drawing panel roofings. This is one of the popular trapezoidal/ibr profile drawing in North American market. The specification for the machine can be custom
Products Inquiry

PRODUCT INFORMATION

Types of metal roofing panels | Roofing machine "best type of metal roof"

Introduction

R Panel Roofing Panel Roll Forming Machine manufacture R Panel profile drawing wall panel. This is one of the popular trapezoidal/ibr profile drawing in North American market. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety. This machine is control by PLC system with world famous brand such as Mitsubishi Electric, Siemens, Delta to ensure flawless production wiht precision for a lifetime. It is ideal for manufacturing 36" R Panels on demand with precision and efficiency.

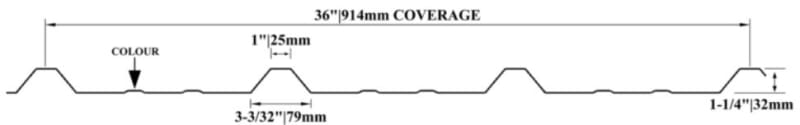

R Panel Profile Drawing






Technical Parameters (depending on specific requirements of customers)



Decoil - Fedding - Main Roll Forming - Hydraulic Cutting - Receiving

Roller stations
16 stations
Roller material
Gcr 15 steel quenching processing HRC 58-60℃ chrome plated
Shaft material
45# solid steel
Shaft diameter
70mm
Workding speed
0-18m/min
Hydraulic cutting blade
Gcr 12 Mov chromed and quenched HRC 58-62℃
Hydraulic cutting power
4.5kw
Hydraulic oil
46#
Transmission
Chain
Voltage
380v 50hz 3 phrase
Forming motor power
5.5kw
Machine structure 500# H-beam
Color
Blue & yellow (customizable)

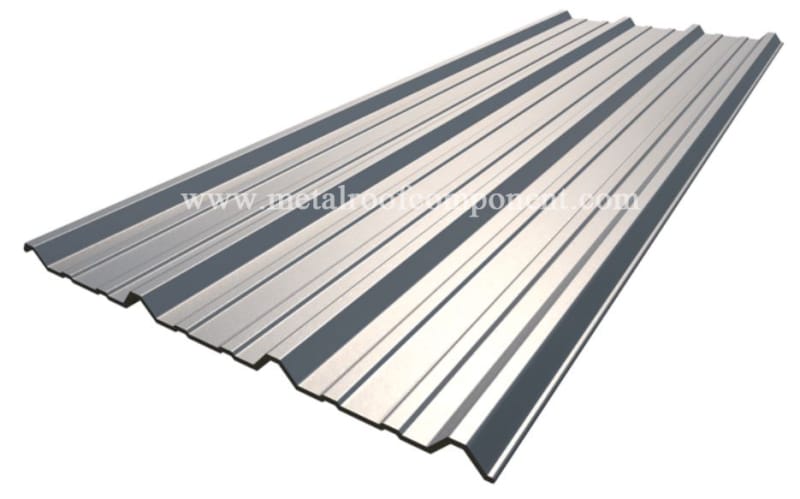

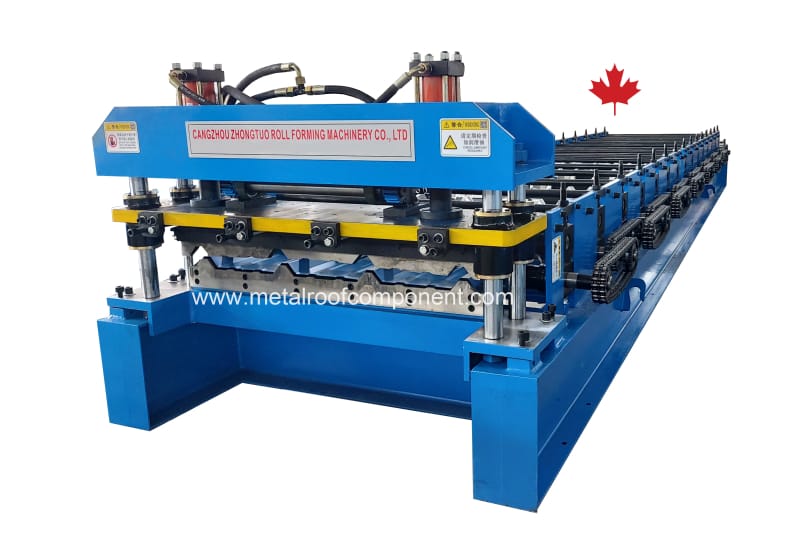

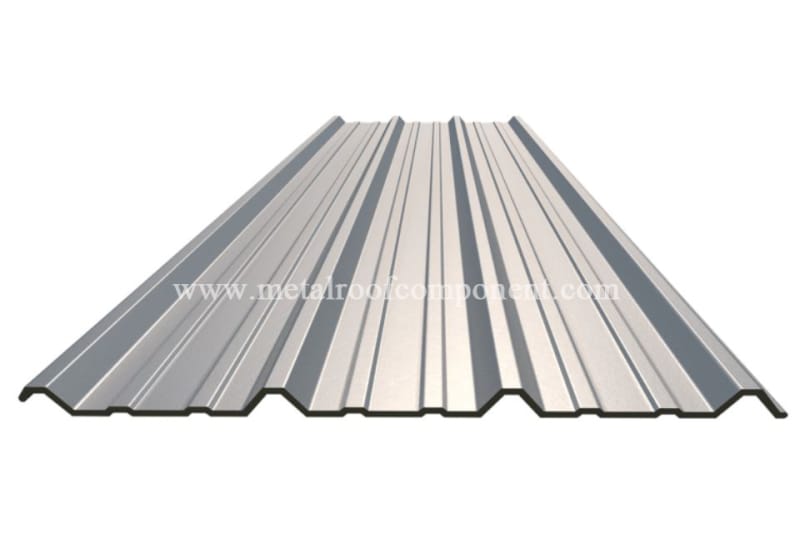

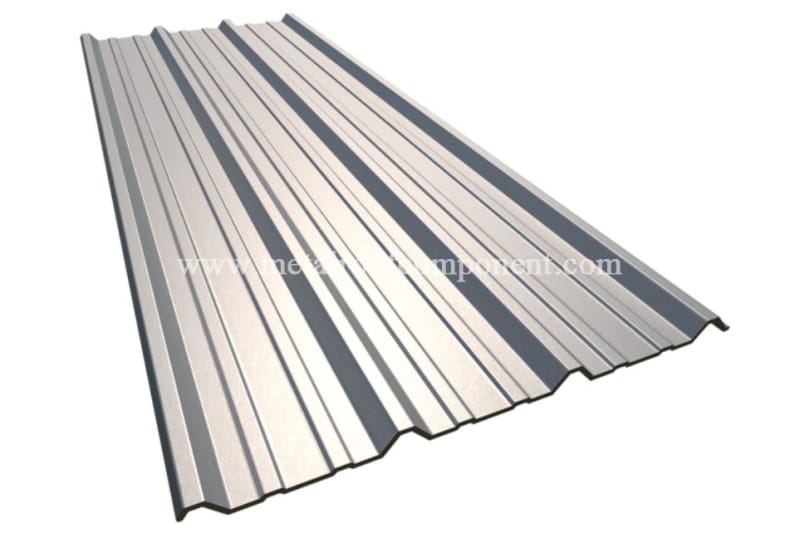

Machine Sample Pictures:






* Machine pictures are for reference only. Machine is cutomized to your specifications.
ZTRFM introduce all kinds of roofing sheets and wall panels to you...you can see this video and know all of the roof tile panel and wall tile panel SUCH AS: 1. r panel profile 2. u panel profile 3. TUFF-RIB PANEL profile 4. Box Rib PANEL profile 5. AG metal PANEL profile 6. Corrugated PANEL profile 7. STANDING SEAM METAL ROOFS profile 8. batten style panel profile 9. GLAZED TILE profile 10. Belvedere Penum Wall panels 11. Grand V panels / Grand C panels 12. SPAN WALL PANEL profile
