Introduction

Solar panel mounting bracket profile rolling forming machine is designed to make solar panel mounting bracket profile in batch fully automatically. The solar photovoltaic bracket is a special bracket designed for placing, installing and fixing solar panels in the solar photovoltaic power generation system. The general materials are aluminum alloy, carbon steel and stainless steel.

The related products of the solar support system are made of carbon steel and stainless steel. The surface of the carbon steel is hot-dip galvanized, and it will not rust for 30 years when used outdoors. The solar photovoltaic mounting system is characterized by no welding, no drilling, 100% adjustable and 100% reusable.

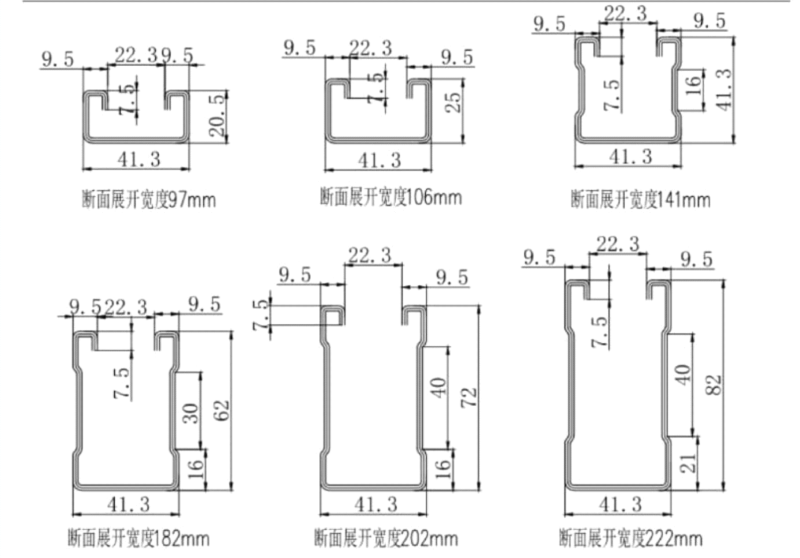

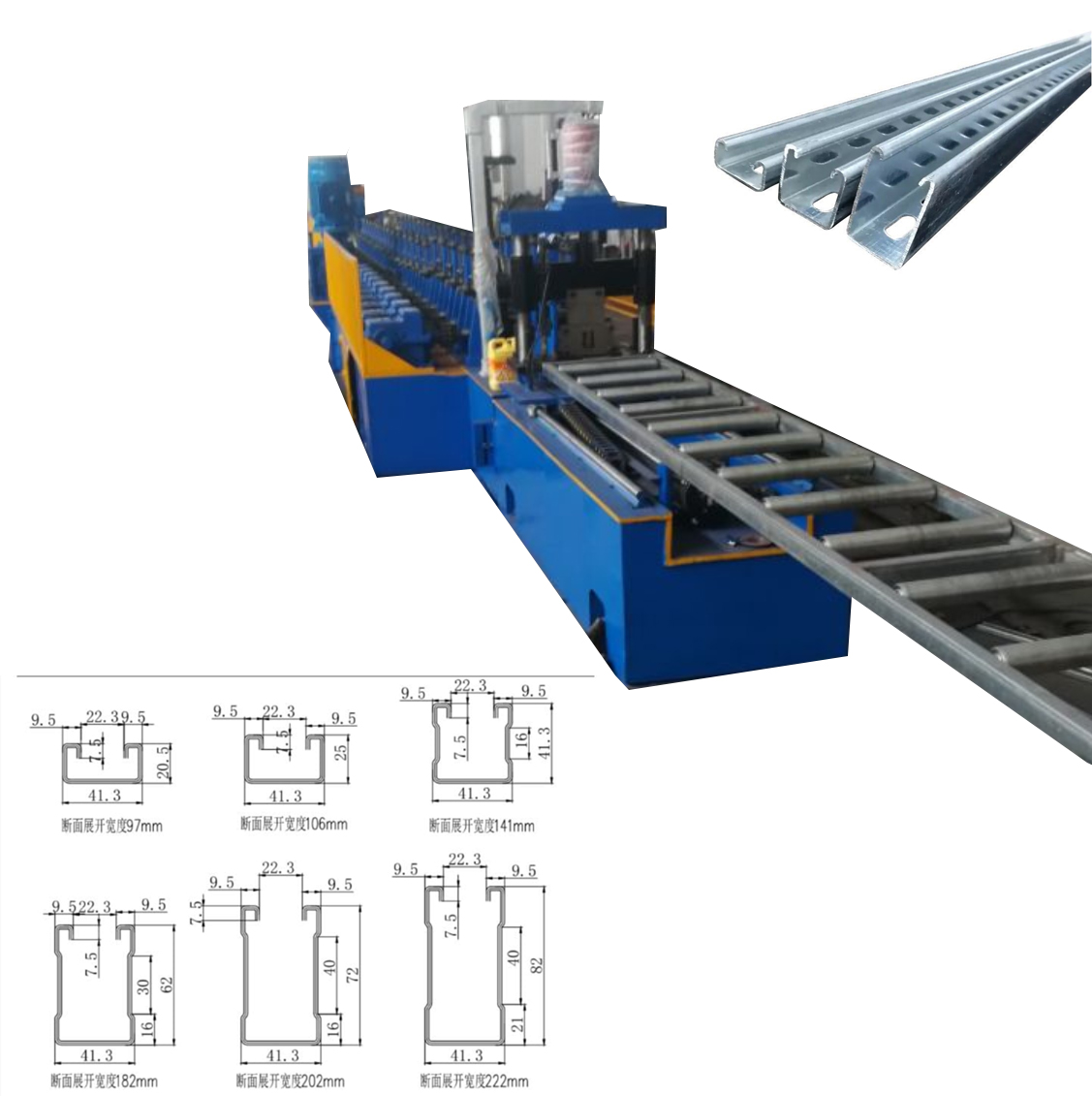

Profile Drawing

These profiles are standard solar panel mounting bracket profiles, which could be made by one machine by adjusting the molds or spacer and also need to change the cutting blade.

Machine Parameters

Solar panel mounting bracket profile rolling forming machine designs, we have two types:

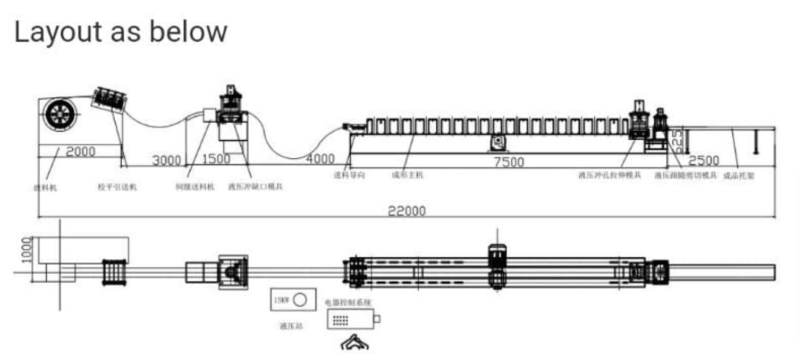

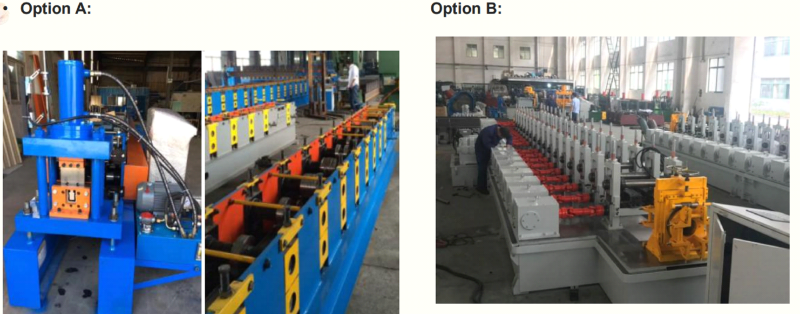

Economic Design Option A

For the economic design, we use the middle plate as frame and using the GCR15 as the roller material.

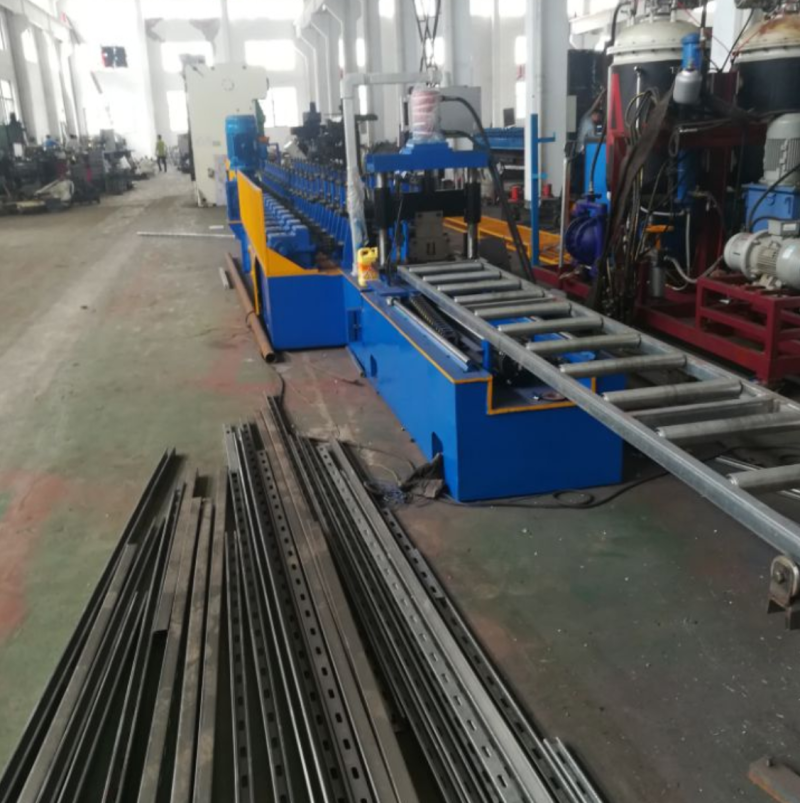

Strong version Option B

For this design, we use the gearbox as transmission, and the molding frame as the machine based .And the flying tracking cutting system, the roller material is GCR12 mov.

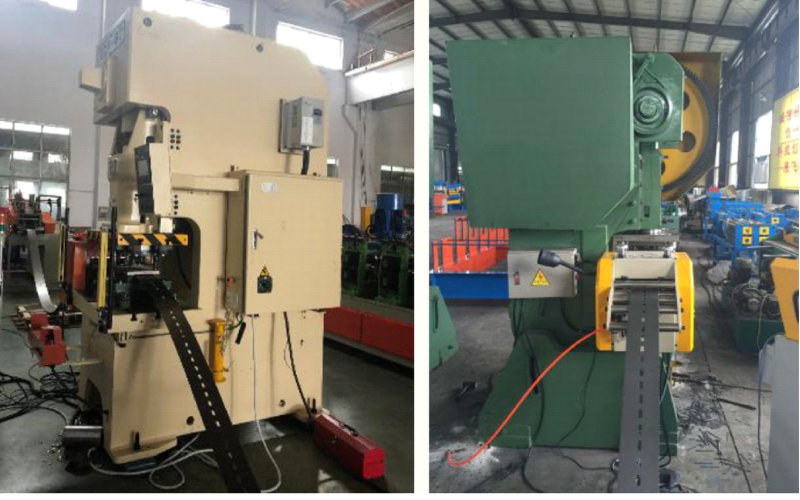

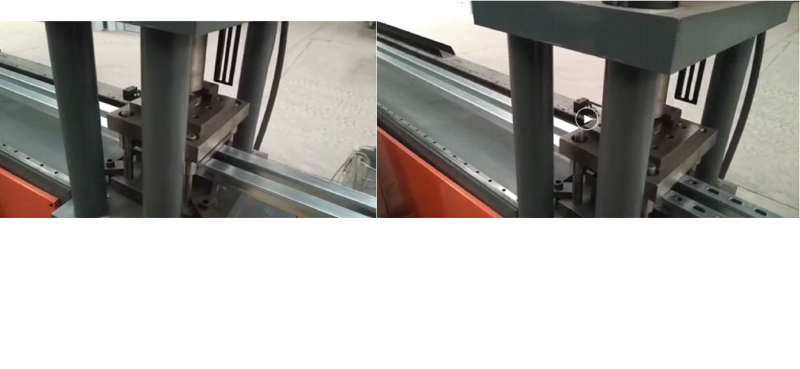

We also have two options for punnching machine: online punching and off line punching.

Online punching means the fully automatic production line, punching will be made before rolling forming. It is good for fully automatic degree and use less workers.

Offline punching means we do the rolling forming first and then do the punching separated. It is good for speed and lower cost but it needs more workers to do this.

Each time can do the punching two pieces. Also it can make sure the hole will not be stretched out.

We can design the machine fully according to your requirement.

Some reasons of effecting the machine cost

• 1.Decoiler manual or hydraulic with loading car or not.

• 2.Punching machine, normal brand or Chinese famous brand or world famous brand, which speed you need.

• 3. Main machine , transmission, gearbox or chain.

• 4. Machine motor, Siemens or normal brand.

• 5. PLC, Siemens or Delta

As to the rolling forming machine of Solar panel mounting bracket profile, here are some parameters for your reference:

Main forming machine of Solar panel mounting bracket profile machine:

1) Forming steps: 28 steps

2) Outer diameter: 80mm

3) Machine frame (type): pillar frame

Thickness of memorial arch frame: 30mm

4) Roller information:

5) A. Raw material: GCr12MoV

B. Quenched degree: 56-58°C

5) Shaft material: 45# steel with heat treats and hard chrome plated on the surface

6) Main motor power: 18.5kw, Reducer ratio: 1:14,Reducer Type: Hardened reducer

7) With cooling device
