Deck Mate Panel Roll Forming Machine

Introduction Deck Mate Panel Roll Forming Machine manufacture 36 Deck Mate Panel profile drawing wall panels for cladding. This is one of the popular wall cladding profile drawing in North American market. The specification for the machine
Products Inquiry

PRODUCT INFORMATION

Introduction

Deck Mate Panel Roll Forming Machine manufacture 36" Deck Mate Panel profile drawing wall panels for cladding. This is one of the popular wall cladding profile drawing in North American market. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety. This machine is control by PLC system with world famous brand such as Mitsubishi Electric, Siemens, Delta to ensure flawless production wiht precision for a lifetime. It is ideal for manufacturing Deck Mate Panels on demand with precision and efficiency.

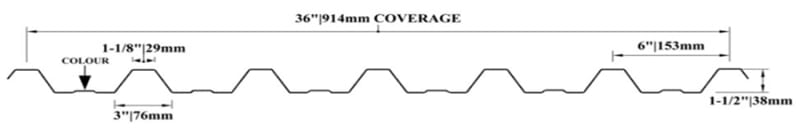

Deck Mate Panel Profile Drawing











Technical Parameters (depending on specific requirements of customers)



Decoil - Fedding - Main Roll Forming - Hydraulic Cutting - Receiving

Roller stations
23 stations
Roller material
Gcr 15 steel quenching processing HRC 58-60℃ chrome plated
Shaft material
45# solid steel
Shaft diameter
80mm
Workding speed
0-15m/min
Hydraulic cutting blade
Gcr 12 Mov chromed and quenched HRC 58-62℃
Hydraulic cutting power
4.5kw
Hydraulic oil
46#
Transmission
Chain
Voltage
380v 50hz 3 phrase
Forming motor power
5.5kw
Machine structure 500# H-beam
Color
Blue & yellow (customizable)

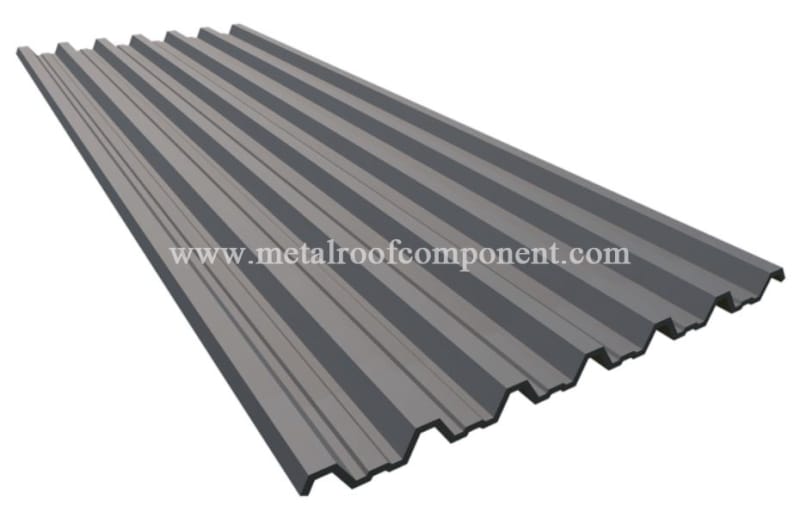

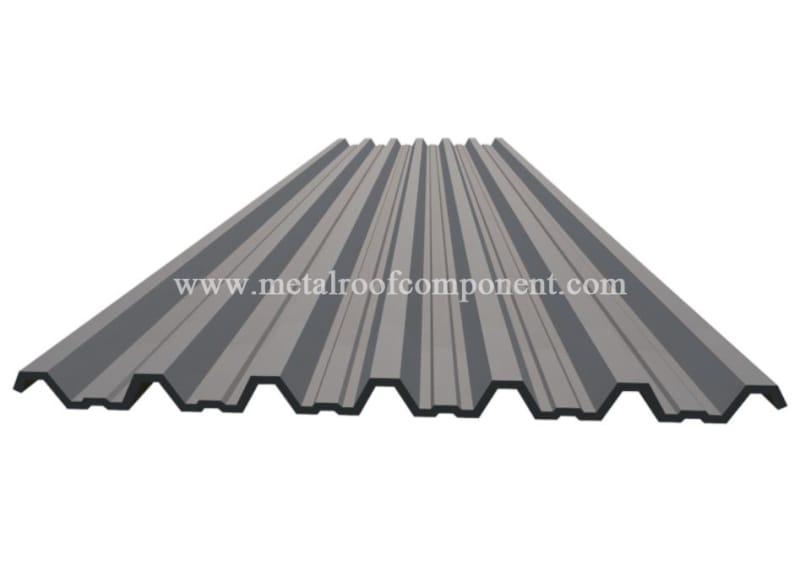

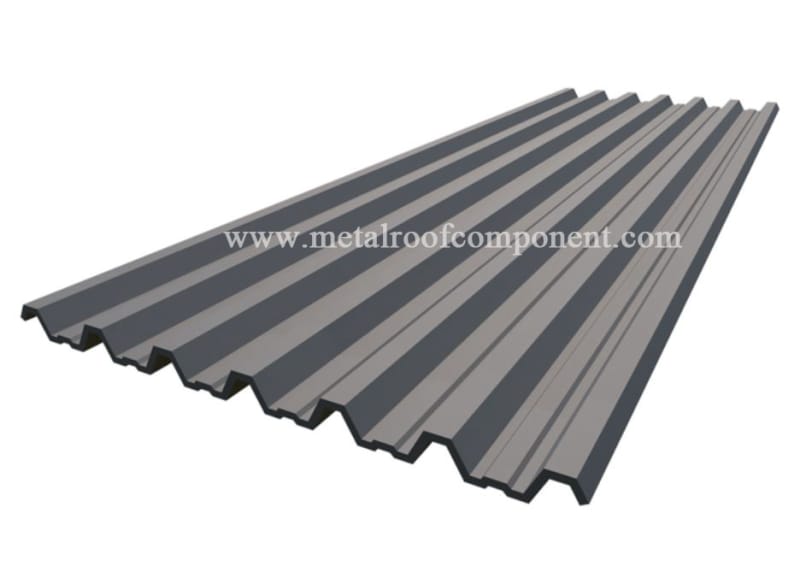

Machine Sample Pictures:




Roll forming machine fabricates specific configurations out of long strips of metal, most commonly coiled steel. Roll forming machines, for the most part, work in a continuous cycle. The material is fed into the machine where it continuously makes its way through the stages of each operation, ending with the completion of a final product.
Metal decking is used in a wide variety of commercial and industrial applications. It includes steel roof and floor decking, aluminum floor decking, and acoustical metal decking. Metal decking typically has a ribbed or corrugated profile that is achieved through a process called roll forming. Metal Roof Decks are available in 1-1/2” Deep Type A (narrow rib), Type F (intermediate rib), Type B (wide rib), or 3” Deep Type N (Deep Rib). manufacture of roll forming machine

* Machine pictures are for reference only. Machine is cutomized to your specifications.
