Introduction

Wall Deck Panel Roll Forming Machine manufacture Wall Deck Panel profile drawing wall panels for cladding. Wall Deck Panel comes in two different designs, regular design and ribbed design. This is one of the popular wall cladding profile drawing in North American market. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety. This machine is control by PLC system with world famous brand such as Mitsubishi Electric, Siemens, Delta to ensure flawless production wiht precision for a lifetime. It is ideal for manufacturing Wall Deck Panels on demand with precision and efficiency.

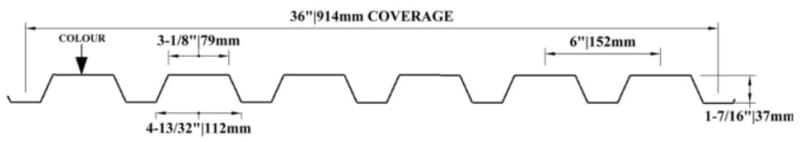

Wall Deck Panel Profile Drawing

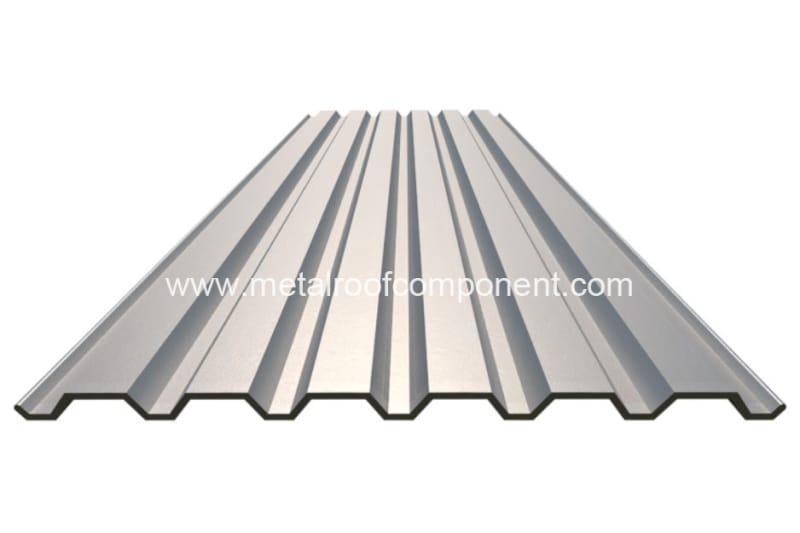

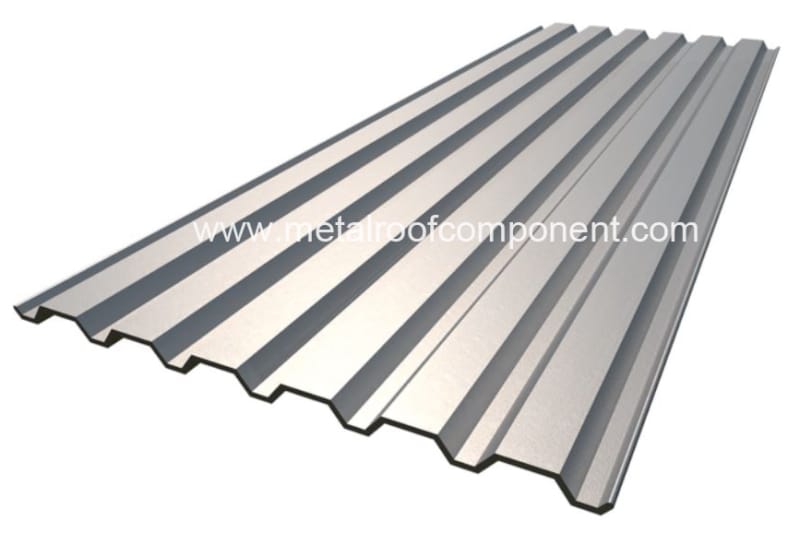

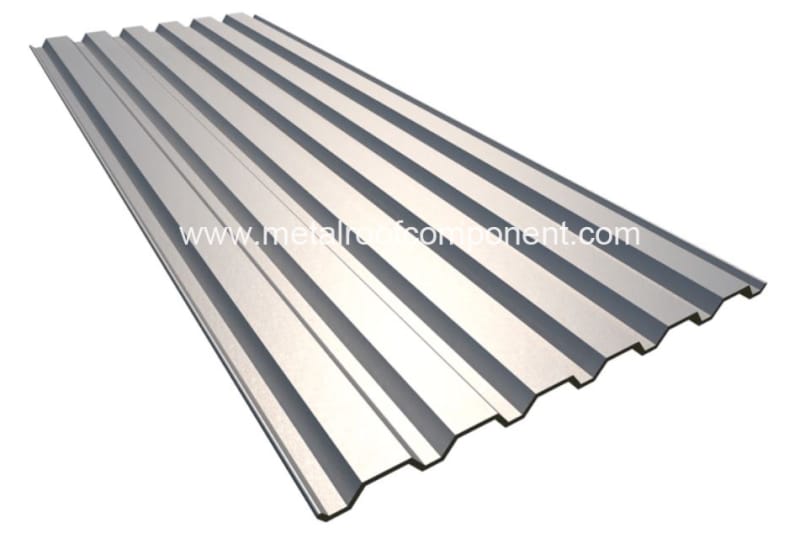

Wall Deck Panel - Regular

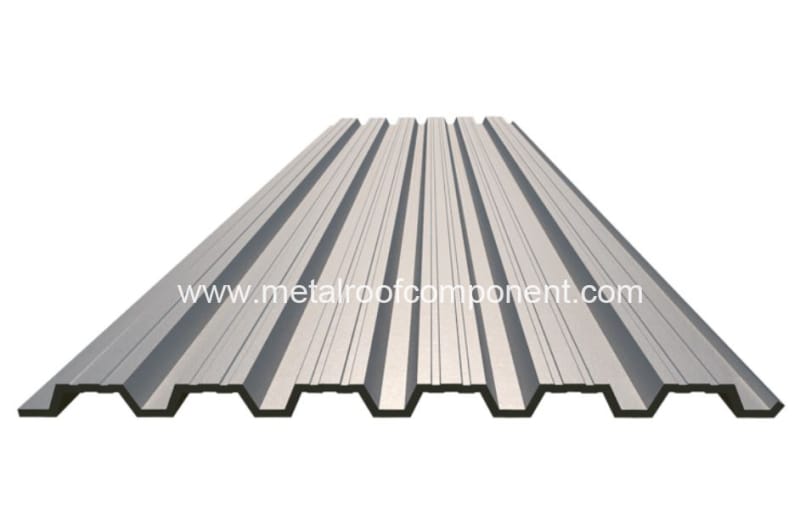

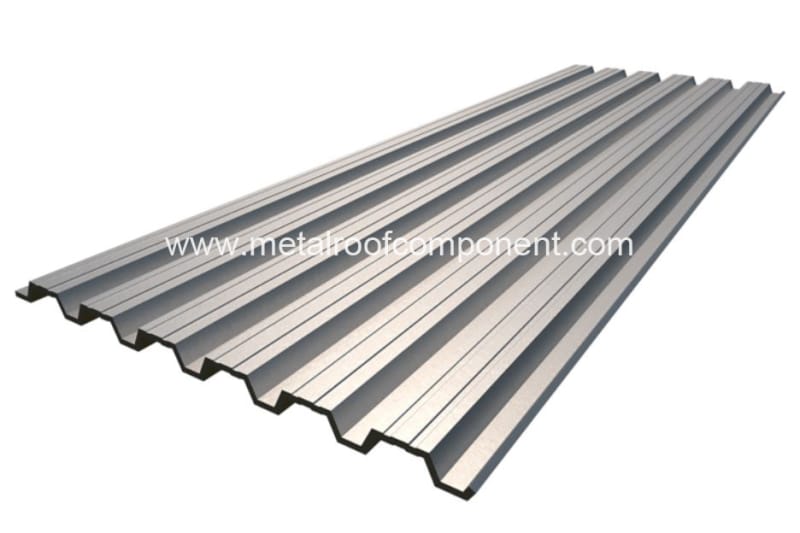

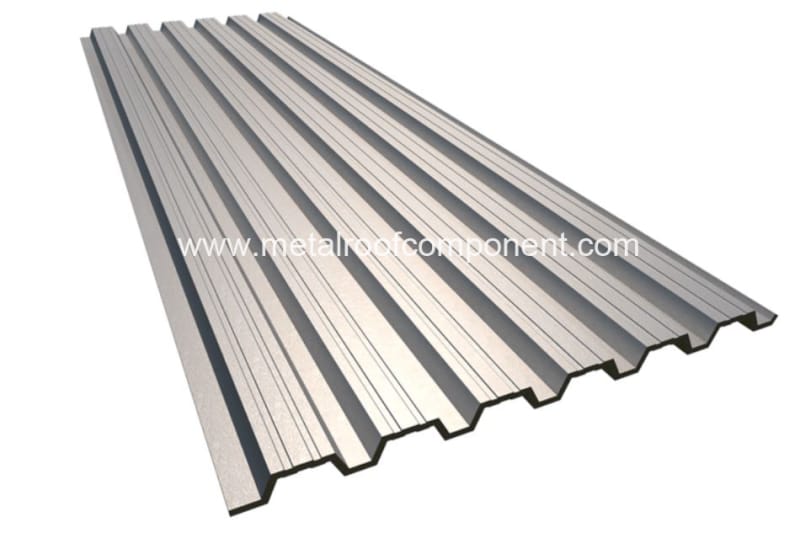

Wall Deck Panel - Ribbed

Technical Parameters (depending on specific requirements of customers)

Decoil - Fedding - Main Roll Forming - Hydraulic Cutting - Receiving

Roller stations	16 stations
Roller material	Gcr 15 steel quenching processing HRC 58-60℃ chrome plated
Shaft material	45# solid steel
Shaft diameter	80mm
Working speed	0-15m/min
Hydraulic cutting blade	Gcr 12 Mov chromed and quenched HRC 58-62℃
Hydraulic cutting power	4.5kw
Hydraulic oil	46#
Transmission	Chain
Voltage	380v 50hz 3 phrase
Forming motor power	5.5kw
Machine structure	500# H-beam
Color	Blue & yellow (customizable)

Machine Sample Pictures:

* Machine pictures are for reference only. Machine is cutomized to your specifications.
