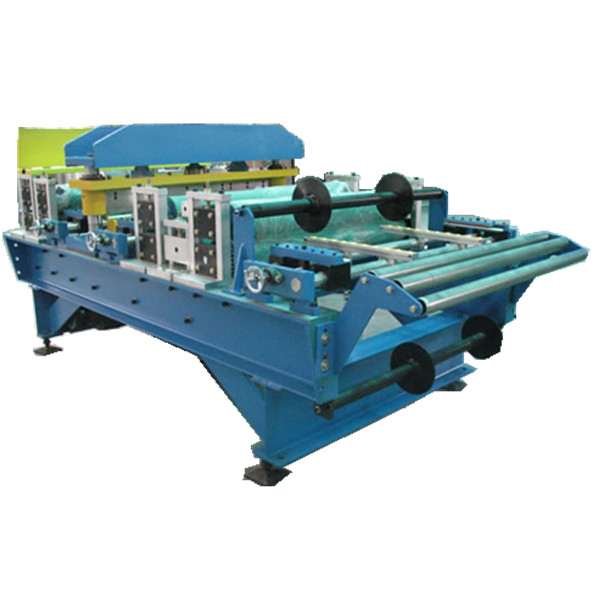

Cut to Length combined slitting machine

Cut to Length combined slitting machine

This  cut to length line is mainly used for terminal customers convenient processing production Simple operation, convenient maintenance

1.The design of the whole machine is reasonable, compact, high precision, high efficiency, flexible and convenient to adjust.

2.Function: Automatically detect steel coil parameters, one-button scrolling, one-button reclaiming, and automatic adjustment.

3.The manufacturing process of the whole machine is strictly in accordance with the mechanical standard specifications, and the production and manufacture of each component is tracked and controlled.

4.Cooperation with well-known domestic and foreign manufacturers, the introduction of first-class leveling technology, and on this basis by professional technical team to develop and extend.

5.The bearings and slide rails of the main engine are imported brands, with advanced lubrication system and long service life.

6.Electrical components are selected from imported high-end brands, and mechanical parts are well-known brands at home and abroad.

So we design the cut to length combined slitting machine as following :

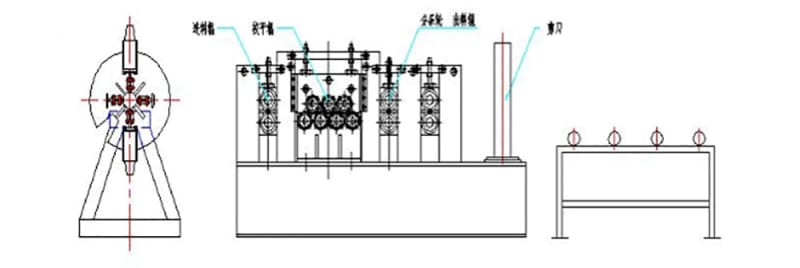

The Working Flow of the  cut to length combined slitting machine:

Uncoiler — Feeding — Leveling — Straightener — Measuring shears — Output table



The Technical Parameters of the cut to length combined slitting machine:

Main components of the machine:

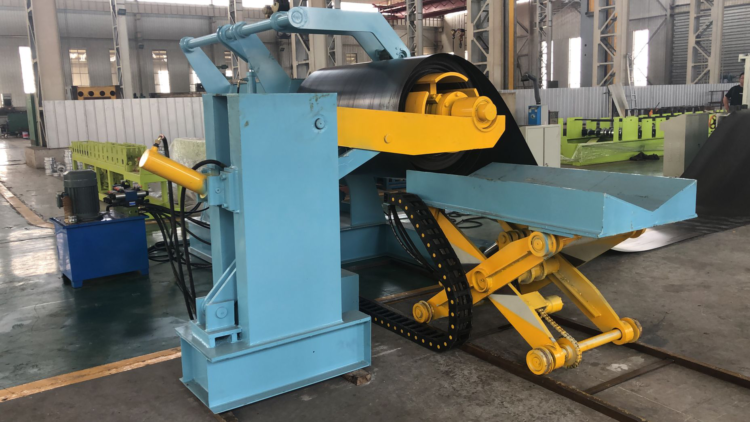

1.Hydraulic decoiler with loading car

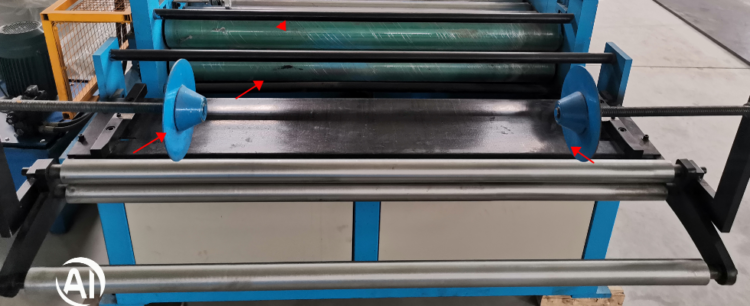

2.Filming function:

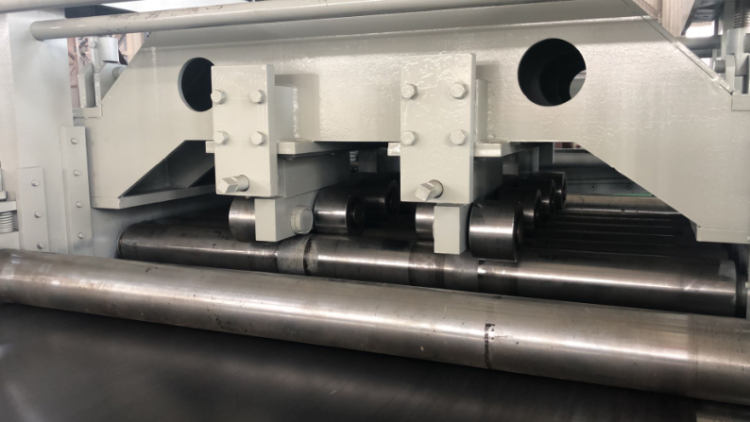

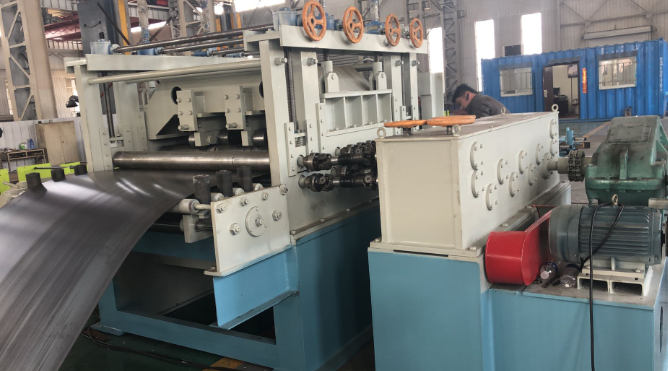

3.Leveling and cutting
