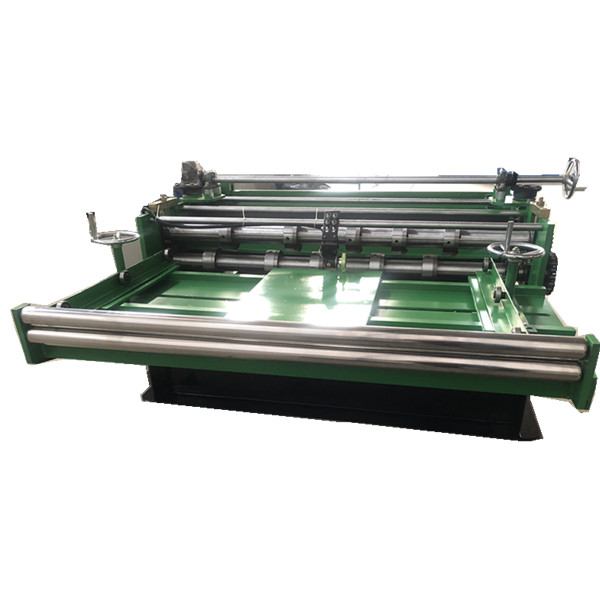

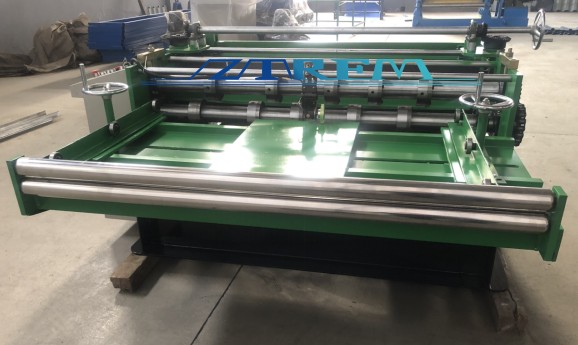

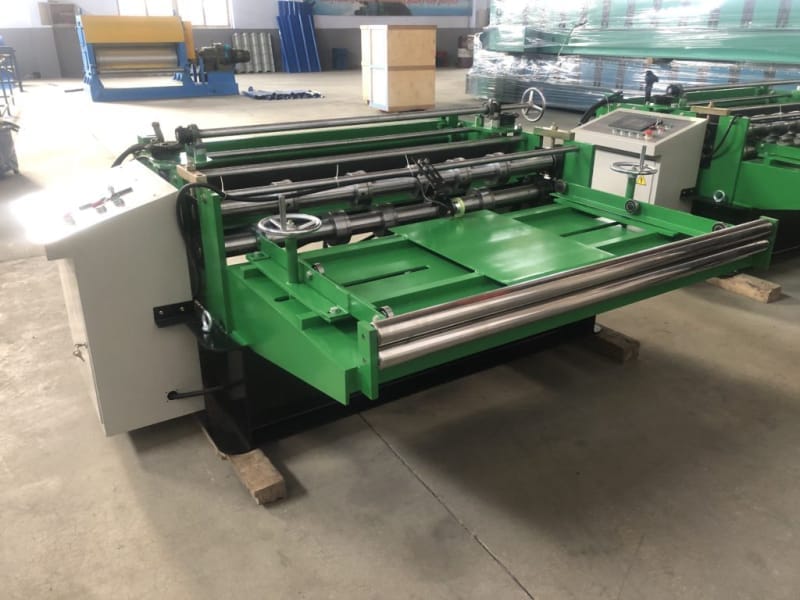

Simple Slitting Cut To Length Line Machine Frequency Speed Control For Sheet Metal

Metal sheets suppliers always need Sheet Metal Slitting And Cut To Length Machine Line, Simple Slitting Machine for kinds for width and length from GI, PPGI coils.

The regular width (1000mm, 1219mm and 1250mm) GI, PPGI or Stainless coils are always brought from steel metal mill factory, but roll forming machine need kinds of material width, like roll formed roofing or wall panels, while there are many not common used steel strips are necessary, for example, the production of stud and tracks, roof battens or angle steel bars is always made from narrow steel strips.

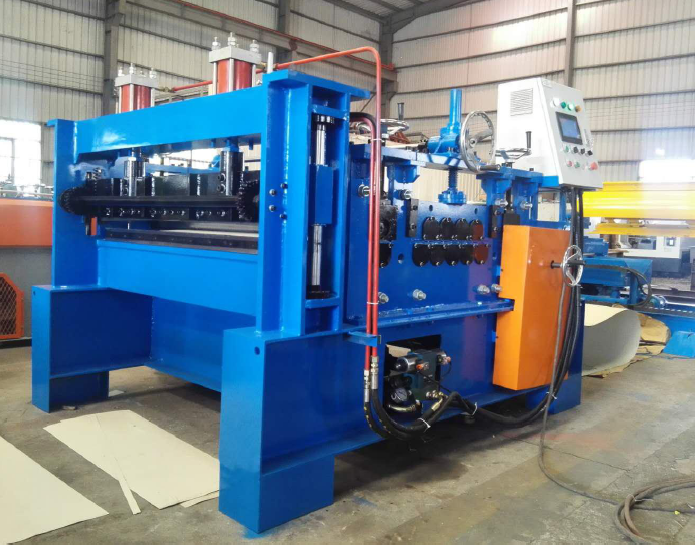

A whole Sheet Metal Slitting And Cut To Length Machine Line, Simple Slitting Machine includes: metal sheet guider, seven rollers leveling device, slitting rollers and cutting off blades.

A Sheet Metal Slitting And Cut To Length Machine Line, Simple Slitting Machine has been designed to cut longitudinally the wide steel coils into different narrow steel strips for producing continuously cold formed sectional steel products, like light gauge steel frames, c/z steel purlines and highway guard rails etc.



Detailed Product Description

Suitable Width: Max. 1400mm

Material Thickness: 0.15-1.5mm Suitable For Material: PPGI, GI

Hydraulic Motor: 5.5KW Control Type: PLC Control Cutting Length

High Light: steel sheet roll forming machine, cold roll forming machine

Technical Parameter

Straightening Machine Seven rollers for straightening
Rollers manufactured from 45# steel, CNC lathes, hard Chrome Coated, fine polished.
Shafts Diameter=ф75mm, Precision Machined, fine Polished
Main motor =5.5KW, Frequency speed control
Max Line speed of roll Former: Approx. 0-20m/min
Hydraulic Cutting Device Stop to cut, Post cut
Cutting tool material: Cr12, Heat treatment
Hydraulic unit, Pump motor =3KW
PLC Control System Control the quantity & cutting length automatically
Combined with: PLC (Delta), Touch Screen (Delta), Encoder (Omron), etc
Cut-to-length tolerance≤±2mm
24V Control voltage
Product Rack (or auto Stacker) Un-powered, 3 units

Feeding Table With Guiding Rollers

The feeding table is designed one group feeding rollers together,one key channel is designed for suiting different width of raw material, the biggest width is 1400mm.


Slitting And Cutting Off
