Orange peel pattern color steel aluminum coil embossing machine

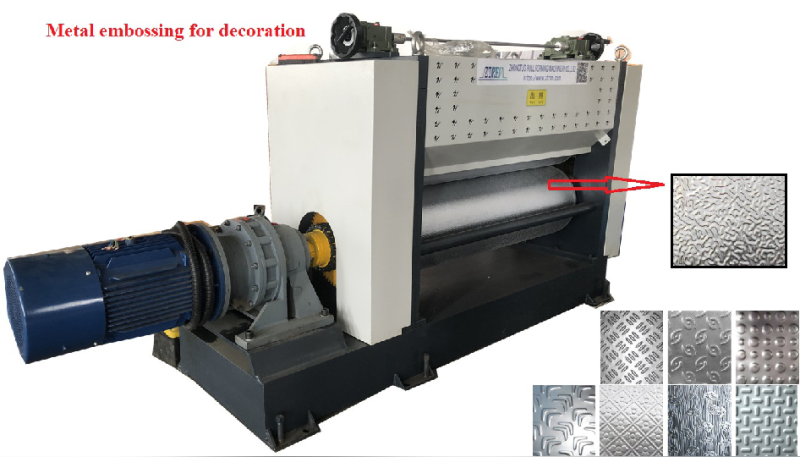

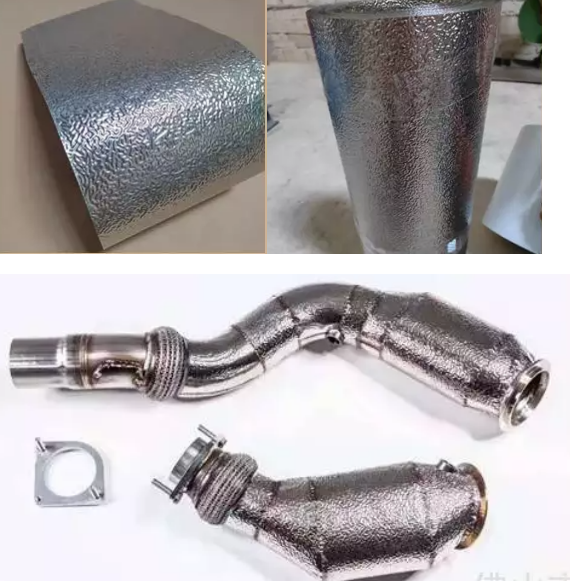

400-1500mm wide orange peel pattern color steel aluminum coil embossing machine metal sheet embossing machine is designed to make the metal embossing sheets in batch fully automatically. The material could be like color steel PPGI, could be aluminum, stainless steel or others. Mostly it works for decoration and some times for automobile exhaust pipe insulation board. Here are some samples of embossing types for your reference;
400-1500mm wide orange peel pattern color steel aluminum coil embossing machine metal sheet embossing machine
The width is adjustable. For this machine, we have some options for your reference:
Option A: Use the coil and then from coil to embossing and then recoiler.
Option B: Use the plate, only embossing and supporting table.
Option C: Use the coil and then from coil to embossing and then cut to length.
Embossing machine parameters for your reference :
1. Embossing roller material: 42crmo solid forged alloy steel
3. The thickness of the pressed material: 1mm
4. Width of pressed material: within 1200mm
5. Speed: 0-8m/min
6. Pattern: water ripple
7. Material to be pressed: carbon steel coil
8. Pattern depth: 0.5-2cm, pattern depth is adjustable
9. Embossing roll specifications: ø410*1600mm. The width of the pressed material finished product is less than or equal to 1500mm;
10. Roll structure: integral forging;
11. Roll heat treatment: medium frequency quenching of the roll body;
12. Roll hardness: ≦HRC55;
13. Roll pattern: According to drawing requirements: CNC engraving;
14. Flower roller surface: anti-rust treatment (self-spraying chrome paint)
15. Rolling mill stand; steel plate combined structure
16. Rolling mill drive; adopts frequency conversion speed regulation
17. Embossing method; two rolls of concave and convex opposing pressure
18. Pressure adjustment method: reducer pressure adjustment (upper embossing roller and lower embossing roller matching gear adjustment function)
19. Center height (between the ground and the two rollers): 750mm

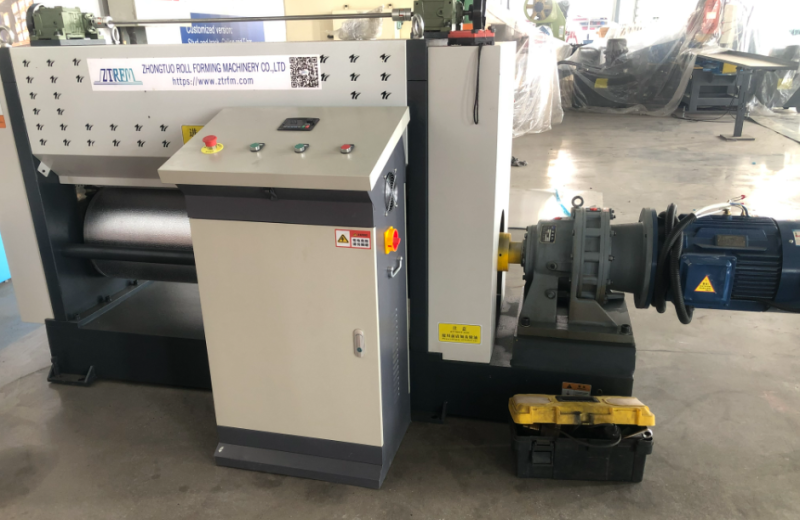

20. Electric control part; independent control cabinet
21. The gap between the rolls can be adjusted
22. Flower roller: detachable to change the roller.
23. Cycloidal pinwheel reducer: XWD8-15
24. Frequency conversion motor power: 15KW/380V(50Hz) 3 phases, (voltage optional)
25. Inverter brand: Delta
26. Three-phase asynchronous motor: Nanjing Shunbai Motor
Orange peel pattern color steel aluminum coil embossing machine working video for your reference:
