Introduction
Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch. we can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc.Steel roller shutters are very versatile and come with various options. PU foam shutter door section which is ideal for showrooms. So we take the following drawing profile for example to show you the PU roller shutter door roll forming machine designed.
Youtube Video:
https://www.youtube.com/watch?v=uUGl8rGQVWk
Profile Drawing
Machine Parameters
|
Roller stations |
14 station |
|
Roller material |
Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface |
|
Shaft material |
45# solid steel |
|
Shaft diameter |
60mm |
|
Working speed |
20m/min Not including cutting |
|
Hydraulic cutting blade |
Gcr 12 Mov Chromed and quenched HRC 58-62 |
|
Hydraulic Cutting Power |
3kw |
|
Hydraulic Oil |
46# |
|
Transmission |
Chain with protective cover |
|
Electricity |
380V, 50HZ, 3 Phrase (Customizable) |
|
Forming motor power |
5.5kw |
|
Machine Frame |
Middle plate 20mm |
|
Color |
Blue & Yellow (Customizable) |

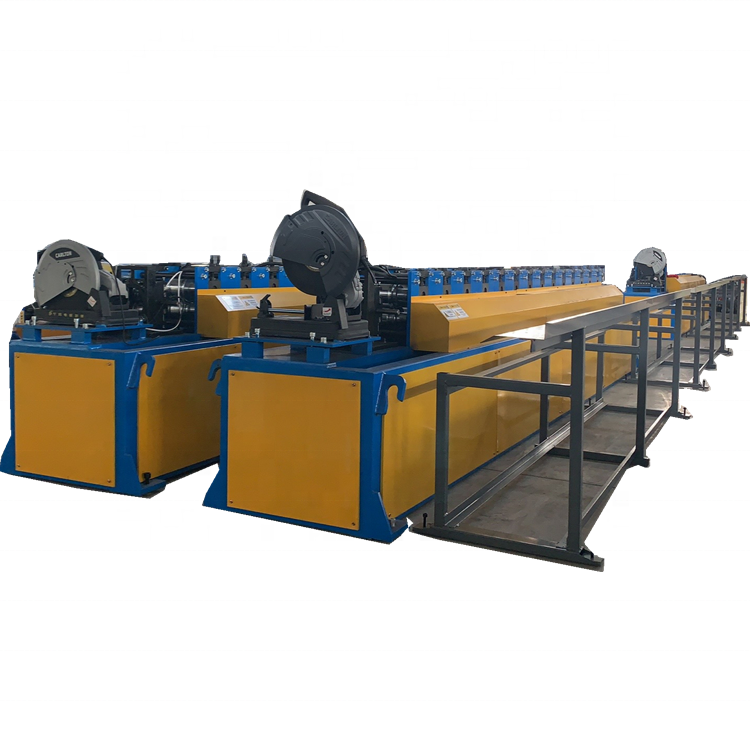

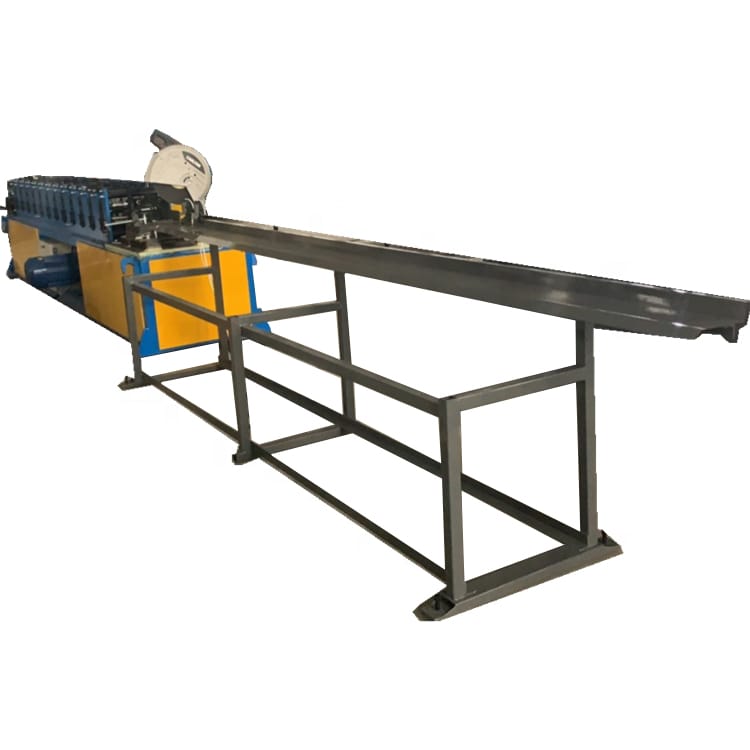

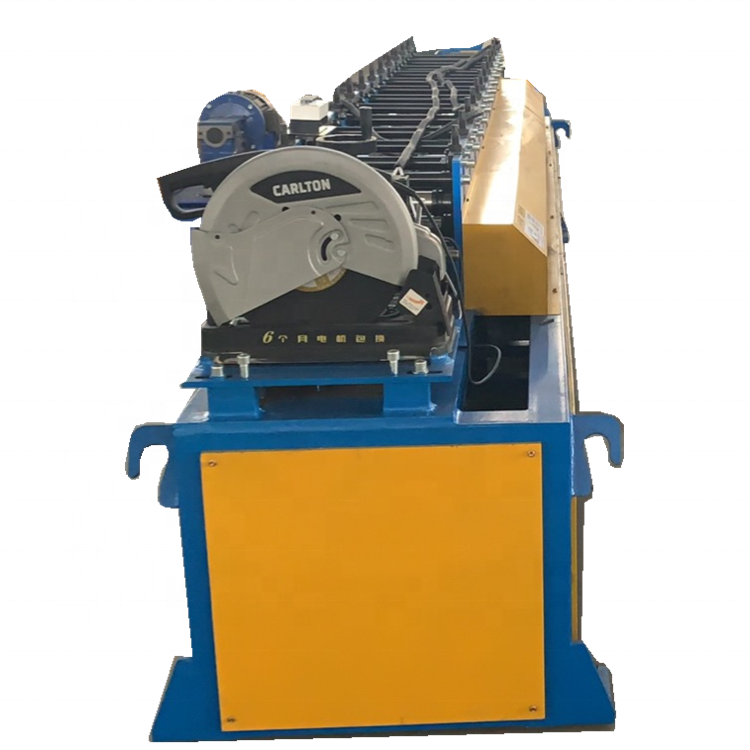

Machine Photos
Roller Shutter Door Roll Forming Machine, Rolling Shutter Door Forming Machine, Shutter Door Slat Forming Machine, Rolling Shutter Door Slat Roll Forming Machine, Shutter Door Roll Forming Machine, Rolling Shutter Forming Machine. This video is to show the working of Roller shutter door roll forming machine. For more details, pls contact us freely. Mobile: +86-15613740026
