65 PU Rolling Shutter Door Slat Roll Forming Machine

A roller shutter, coiling door, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats hinged together.Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming
Products Inquiry

PRODUCT INFORMATION

PU roller shutter door roll forming machine

Introduction

A roller shutter, coiling door, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats hinged together. ZTRFM FORMING Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch we are the professional manufacturer for roll forming machine in China and we export roll forming machinery all over the world.


Profile Drawing



Machine Parameters

Roller stations 38+1 station
Roller material Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface
Shaft material 45# solid steel
Shaft diameter 50mm
Working speed 10-12m/min
Hydraulic cutting blade Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic Cutting Power 2.2kw
Cutting Servo tracking cutting
Hydraulic Oil 46#
Transmission Gearbox welded structure
Electricity 380V, 50HZ, 3 Phrase (Customizable)
Forming motor power 7.5kw
Machine Frame Middle plate 20mm
Color Blue & Yellow (Customizable)

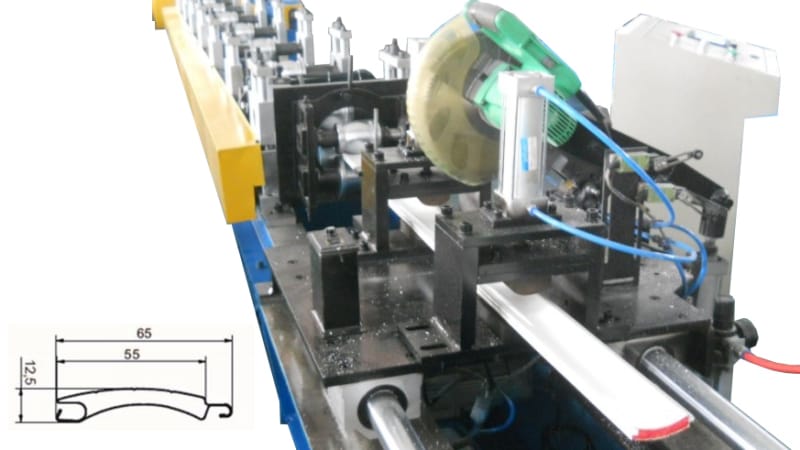

Machine Photos




PU foamed rolle shutters is to make the rolling door shutters. With forming, foam injection, cutting and punching holes completely in one production line. The speed can reach 30~35meters per minute. www.zhongtuocn.com Email: cnzt007@zhongtuocn.com, Tel: 0086-1563740026
