92.99 Rolling Shutter Door Slat Roll Forming Machine

Introduction

Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch. we can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc.Steel roller shutters are very versatile and come with various options. PU foam shutter door section which is ideal for showrooms. So we take the following drawing profile for example to show you the PU roller shutter door roll forming machine designed.

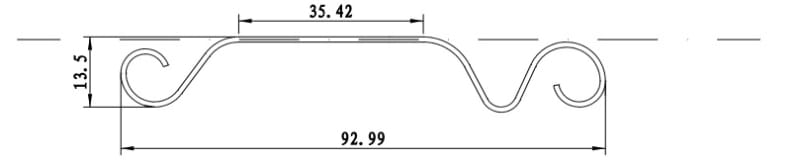

Profile Drawing



Machine Parameters

Roller material	Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface
Shaft material	45# solid steel
Shaft diameter	60mm
Working speed	35m/min
Hydraulic cutting blade	Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic Cutting Power	3kw
Hydraulic Oil	46#
Transmission	Chain with protective cover
Electricity	380V, 50HZ, 3 Phrase (Customizable)
Forming motor power	7.5kw
Machine Frame	Middle plate 20mm
Color	Blue & Yellow (Customizable)

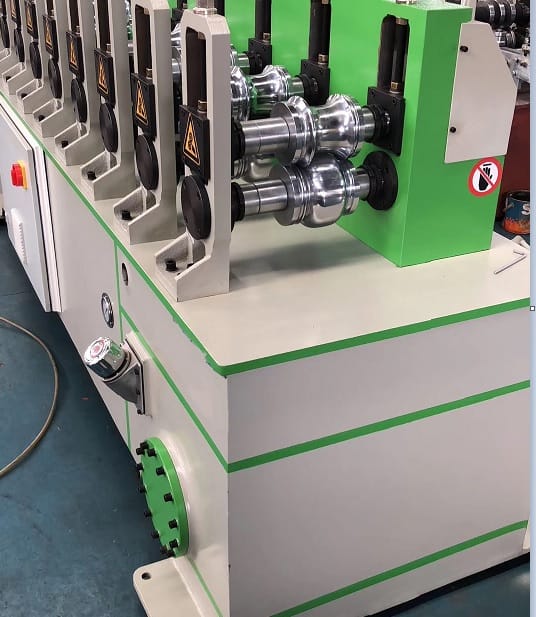

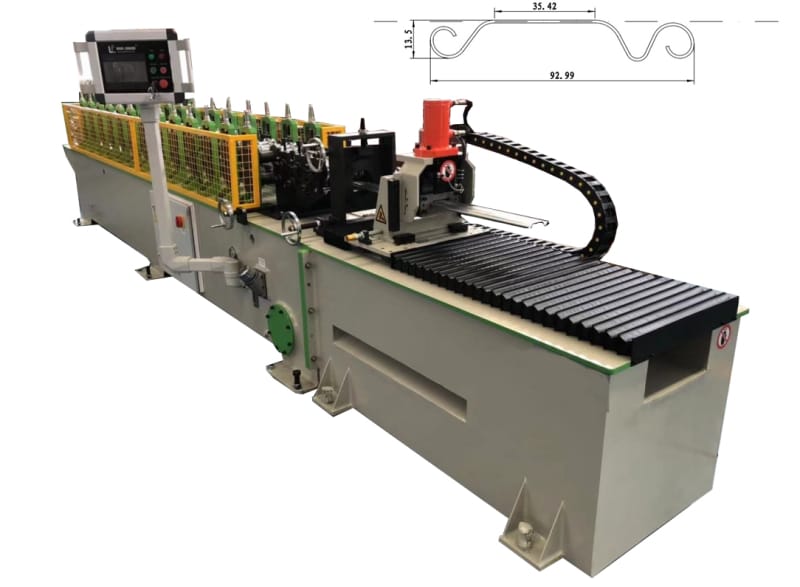

Machine Photos
