51.5 PU Rolling Shutter Door Roll Forming Machine

Introduction Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished comp
Products Inquiry

PRODUCT INFORMATION

Introduction

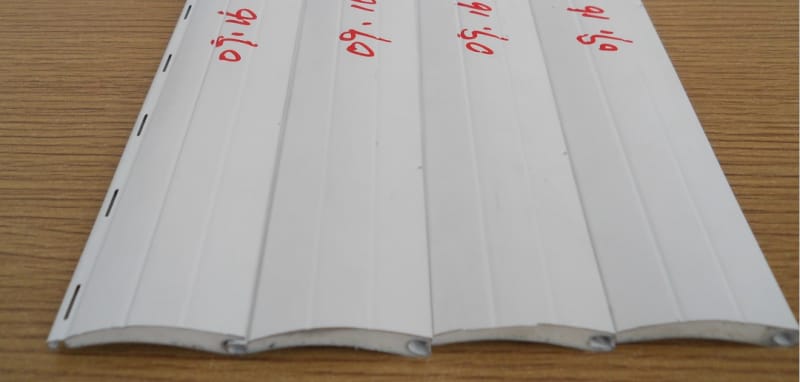

Zhongtuo cold rolling forming machinery Supply, Install, Maintain, Service And Repair A Wide Range Of Roller Shutters Roll Forming Machine and within a short period of time it turned out to be one of the most distinguished companies in Security rolling shutters roll forming machine and outer PU Foam Roller Shutter Door Roll Forming Machine industrial branch. we can produce a wide range of industrial doors includes sectional overhead doors and roller shutters and fire roller shutters and security doors also PU Foam Injection Shutter and etc.Steel roller shutters are very versatile and come with various options. PU foam shutter door section which is ideal for showrooms. So we take the following drawing profile for example to show you the PU roller shutter door roll forming machine designed.

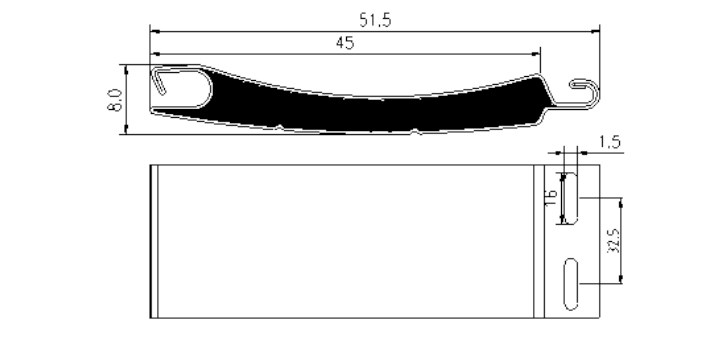

Profile Drawing



Machine Parameters

Roller stations 36+1 station
Roller material Gcr 15 steel after quenching processing HRC58-62℃, chrome plated surface
Shaft material 45# solid steel
Shaft diameter 50mm
Working speed 10-12m/min
Hydraulic cutting blade Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic Cutting Power 2.2kw
Cutting Servo tracking cutting
Hydraulic Oil 46#
Transmission Gearbox welded structure
Electricity 380V, 50HZ, 3 Phrase (Customizable)
Forming motor power 7.5kw
Machine Frame Middle plate 20mm
Color Blue & Yellow (Customizable)

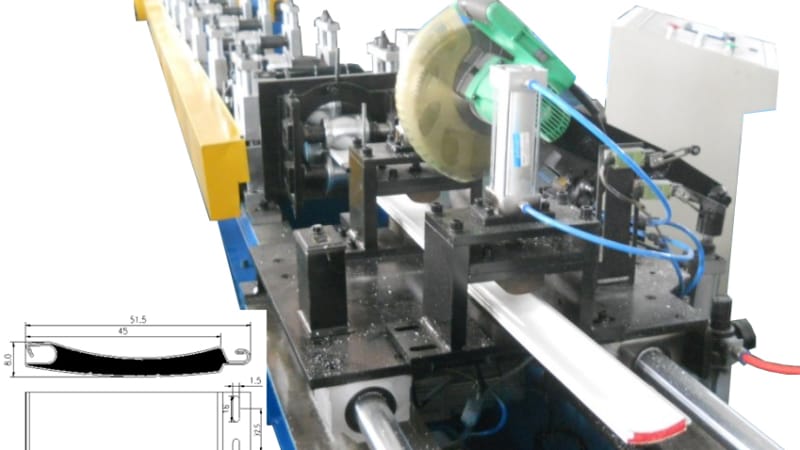

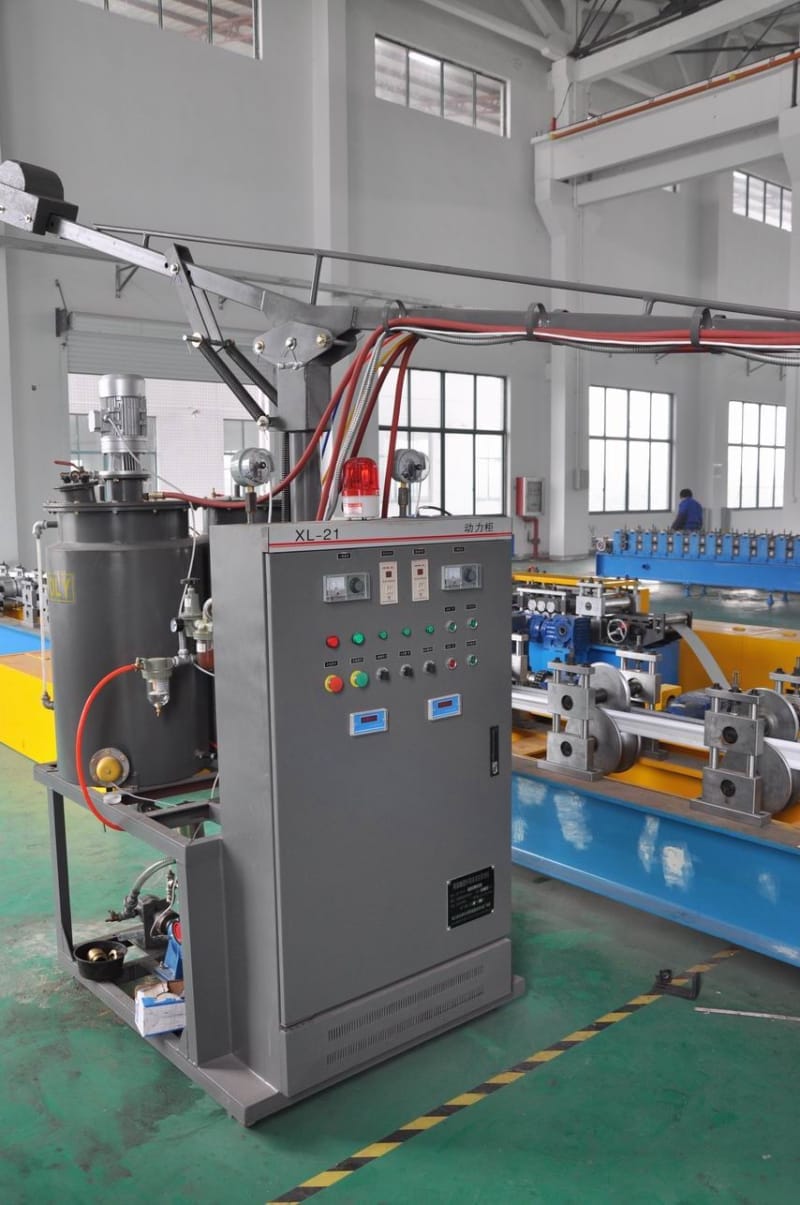

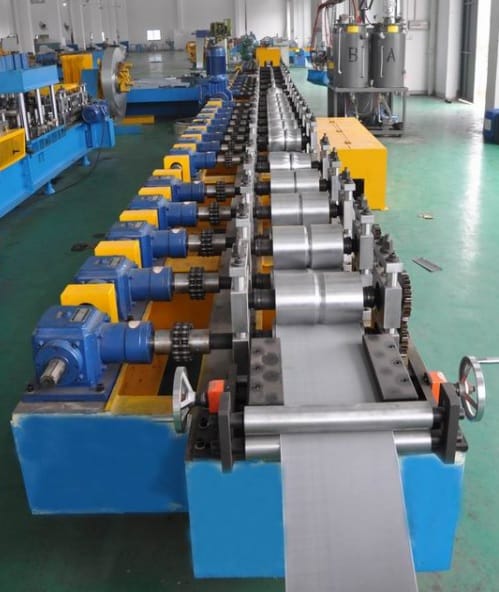

Machine Photos
