Windshield and Dustproof Board Rolling Machine

Category: roofing machineTags: Dustproof Board machine, windshield rolling machine
Products Inquiry

PRODUCT INFORMATION

Windshield and Dustproof Board Rolling Machine

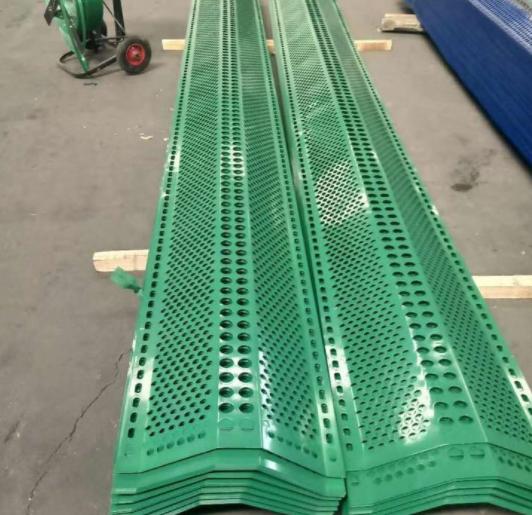

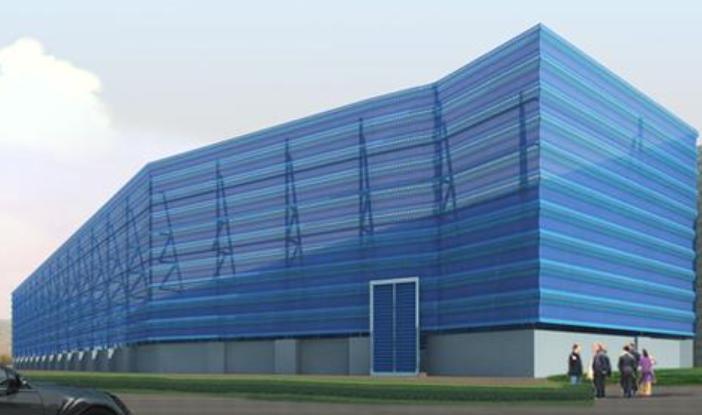

Windshield and dustproof board rolling machine is designed to make the windshield and dustproof board in batch fully automatically. The main components of the dust suppression plate produced by the fully automatic pressing and punching production line are based on the principle of aerodynamics, and the structural parameters are designed according to the results of the wind tunnel experiment that simulates the implementation of the on-site environment, and processed into a certain geometric shape. It is corrugated, with round, oblong, elliptical and other openings, which are used to reduce the wind speed of the incoming wind, limit the loss of the kinetic energy of the incoming wind, reduce the turbulence of the wind, and achieve the purpose of windproof and dust suppression.

According to the meteorological conditions of the coal field, the distribution of coal particle diameters, and the geometric parameters of the coal field, the wind and dust suppression board is calculated through experiments and optimized calculations to obtain the mechanical properties, geometric shape, and set of the corrosion resistance and insulation properties that the wind and dust suppression board must meet. , Anti-aging, color and other aspects require computer ingredients. SMC wind-proof and dust-suppressing board is made by compound process.

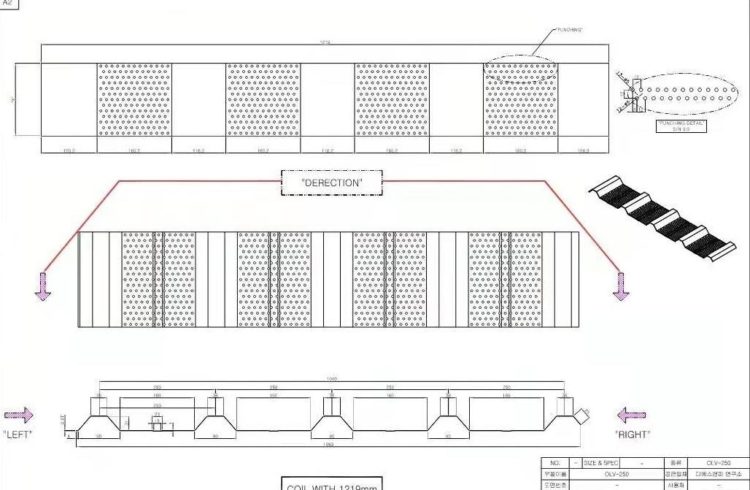

Take the following drawing profile for your reference:

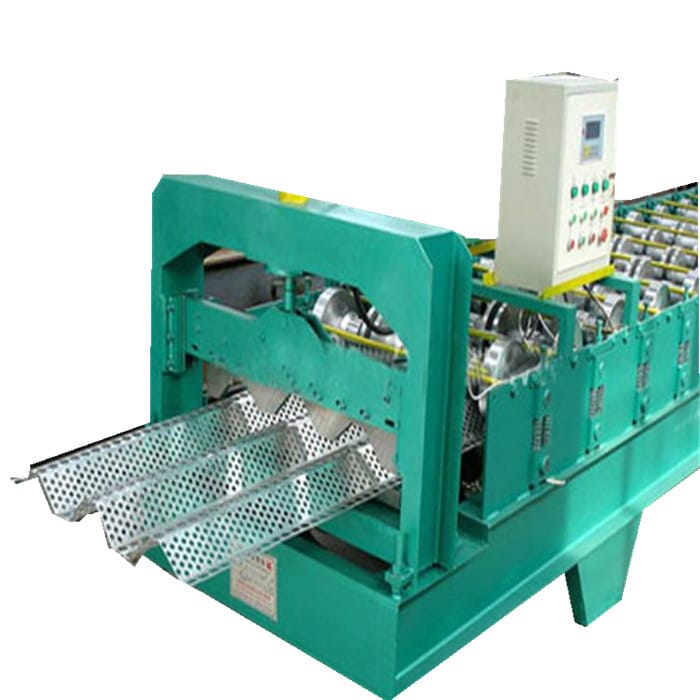

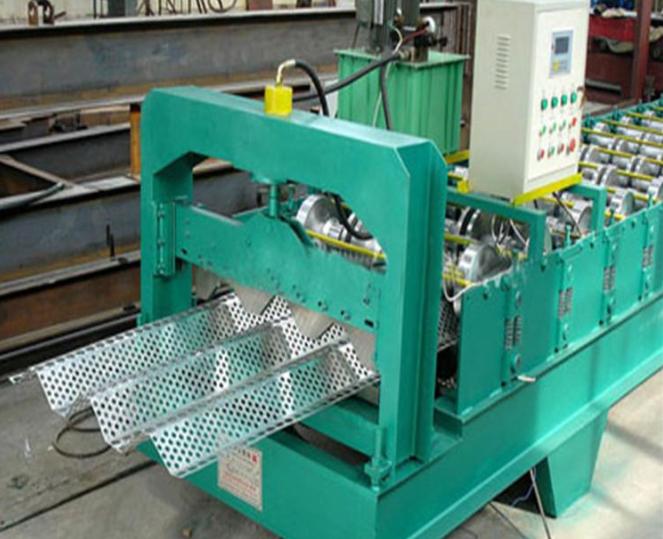

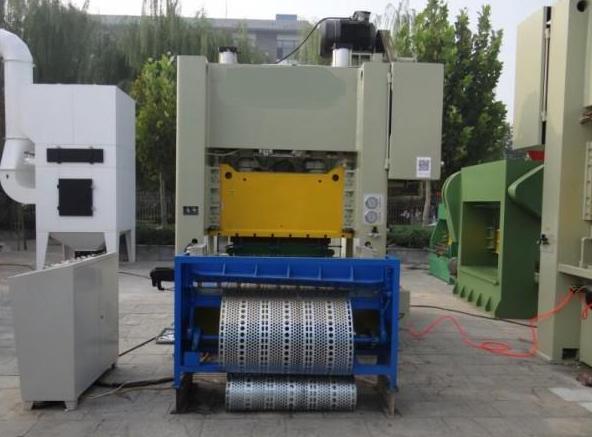

This machine is mainly composed by the following elements: Decoiler, servo coil feeder, punching machine, main rolling forming machine and receiving table.

Here are some machine parameters for your reference:

  1. Host volume: 7.8 meters long, 1.3 meters wide, 1.2 meters high
  2. Weight: about 5-5.5 tons
  3. Main motor power: 5.5KW
  4. Reducer: planetary cycloid reducer 6# reducer
  5. The thickness of the middle plate: 16MM
  6. Sprocket chain: 1.2 inches
  7. Spindle: Material 45#, shaft diameter?75
  8. Roll die: 45# steel forging processing, CNC finishing, heat treatment, quenching hardness up to 52°54°, polished and hard chrome plated
  9. Number of roll rows: 13 rows
  10. Rollable plate thickness: 0.61MM
  11. Rolling material speed: frequency conversion speed adjustment is about 1.5 to 3 m/min
  12. Hydraulic shearing cylinder: double-cylinder drive, cylinder diameter 100MM, stroke 150MM
  13. Shearing oil pump motor: 4KW
  14. Shearing tool: Cr12 quenching hardness 6062°, fine grinding wire cutting
  15. Electrical appliances: Mitsubishi PLC, 7.5

Advantages of wind-proof and dust-suppressing net products:
