Roof Panel Roll Forming Machine For ZT25-190-760

Roof Panel Roll Forming Machine For ZT25-190-760 Profile

ZT25-190-760Profile Roof Panel Roll Forming Machine is designed for making the metal roof panel sheet production in batch fully automatically. Metal profile ZT25-190-760 is designed as:

The wave height is 25mm, the wave distance is 190 and the effective width is760 and we use the input coil width is 1000mm. And this metal profile is popular in Europe, and other counties.

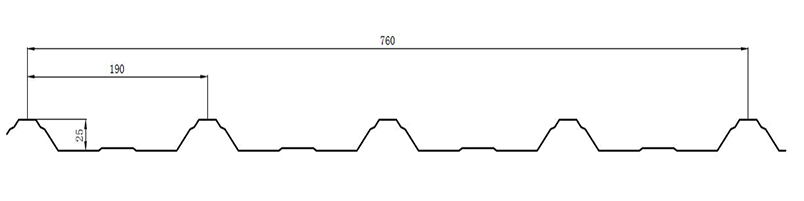

ZT25-190-760 Profile Roof Panel drawing profile for your reference:

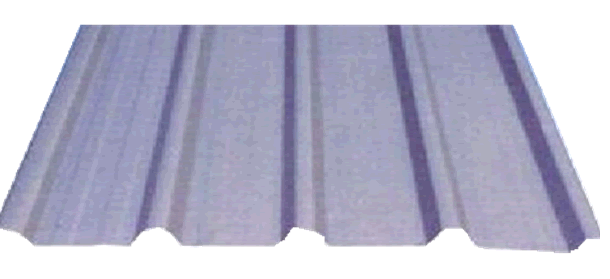

Finished product profile:

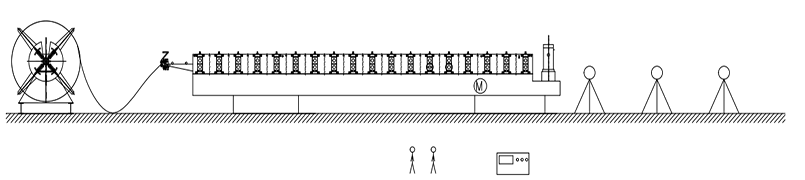

Based on the customer requirements and our experience, we design the ZT28-252-1010 Profile Roof Panel Roll Forming Machine like following picture:



Work Flow of ZT25-190-760 Profile Roof Panel Roll Forming Machine

Decoiler-→Manual Pre- Cutter-→Guide Feeding -→Roll Forming System- >Hydraulic Post Cutter -→Exit Rack

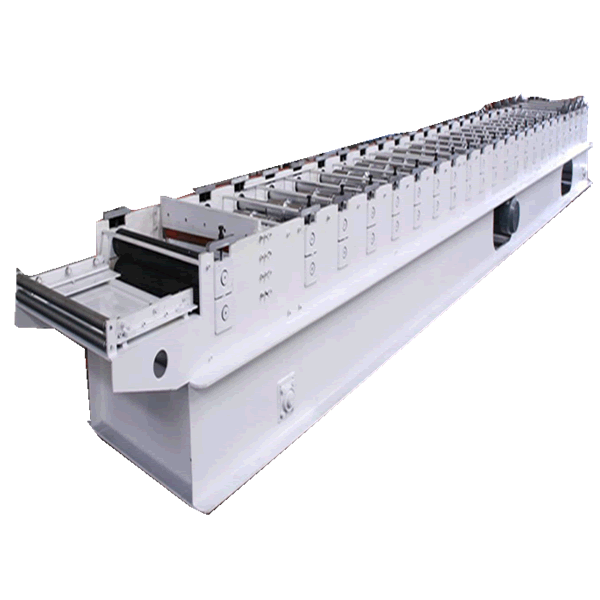

The ZT25-190-760 Profile Roof Panel Roll Forming Machine is composed by the following elements:

1.Main Machine(Can Choose The Pre-Cutter)

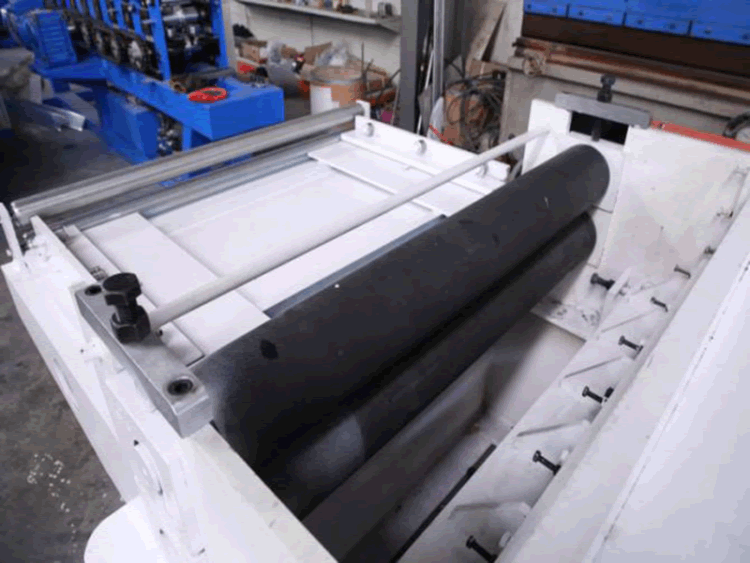

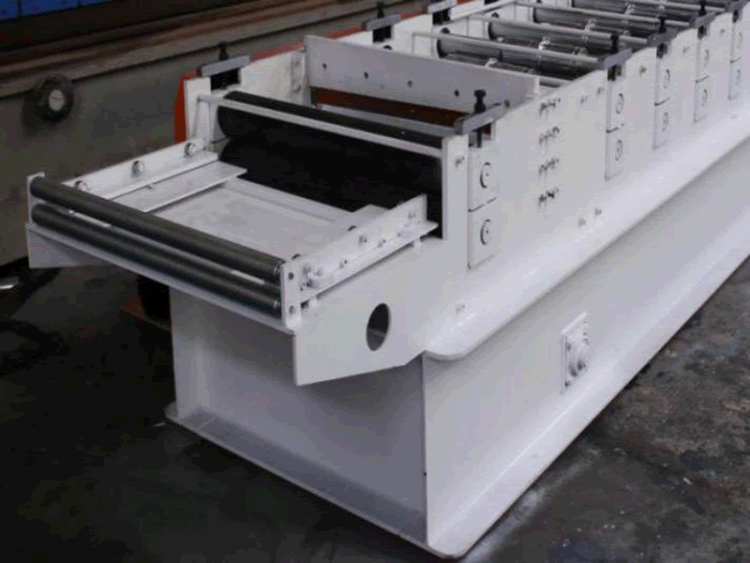

With feeding material guide, body frame made from H500 type steel by welding

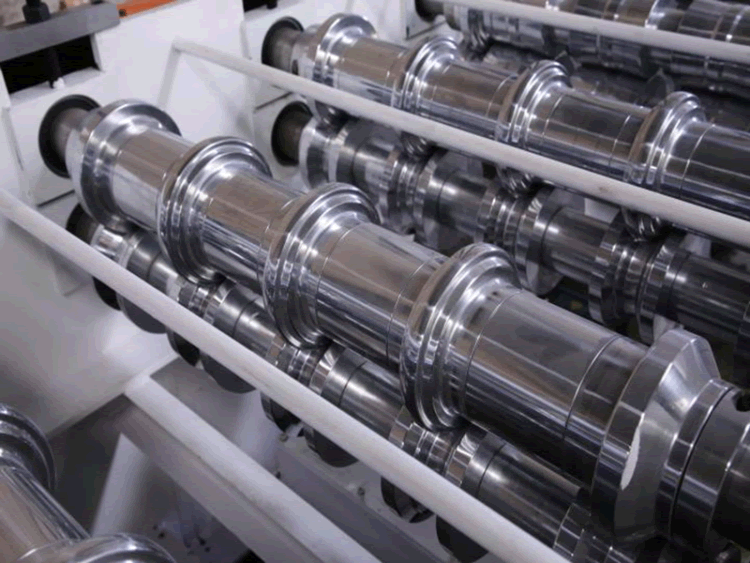

Rollers manufactured from 45# steel,CNC lathes, Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment(for longer life and anti-rust)

Shafts Diameter=p80mm Round steel,precision machined

Main Motor=11KW,Frequency speed control

Gear/Sprocket driving,about 24-step to form

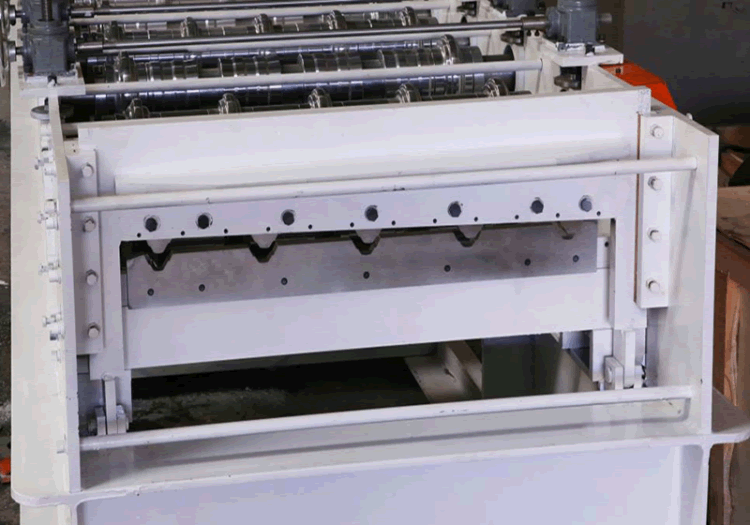

2.Post Hydraulic Cutting Device

Post to cut, stop to cutting,TWo pieces type of cutting blade design, no blanking

Hydraulic motor: 4KW

Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree

The cutting power is provided by the main engine hydraulic station



3.PLC operation system:

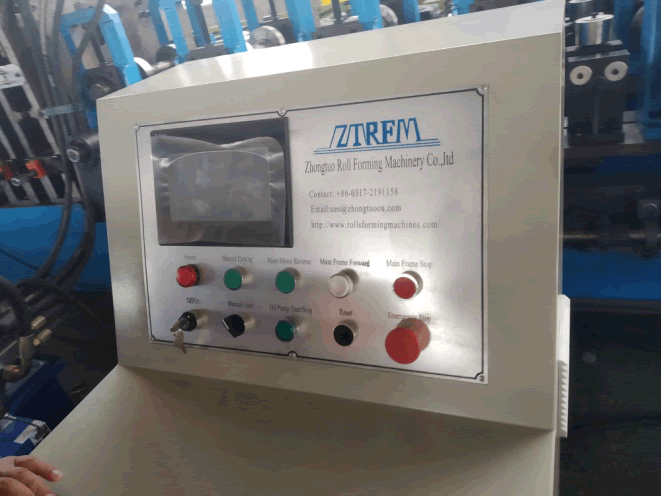

roof panel machine touching screen and control panel(Button brand :Schneider / screen brand Schneider)



ZT roofing panel machine advantages as follows:

1.Low cost, light weight but high strength, short building period, and re-cycle use

2. Save material ,no waste.

3.Easy operation, low maintenance cost

4. .Able to deal with stainless material

ZT MACHINE give good after-sale service.

1. The warranty of ZT25-205-1025 roof panel machineis 2 yearsafter the client receives the machine. Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients’ factories with extra cost.
