PRODUCT INFORMATION

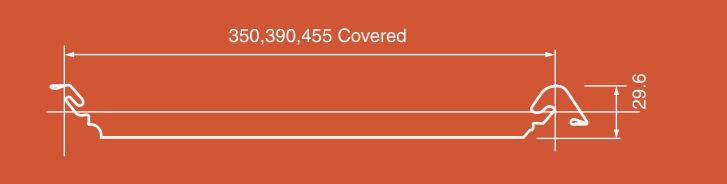

Japanese Design Concealed Clip Lock Roofing Sheet Rolling Machine is designed to make the concealed clip lock roofing sheet rolling machine. Here is one drawing to show you what is concealed clip lock roofing sheet.

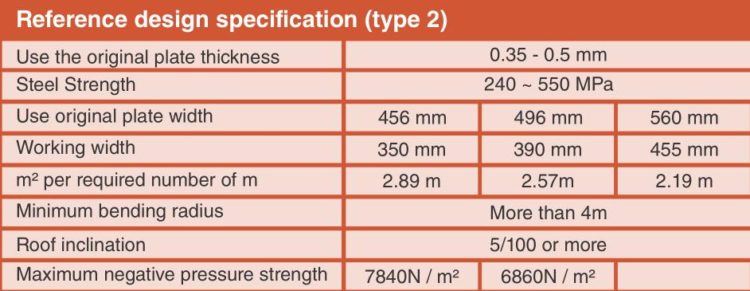

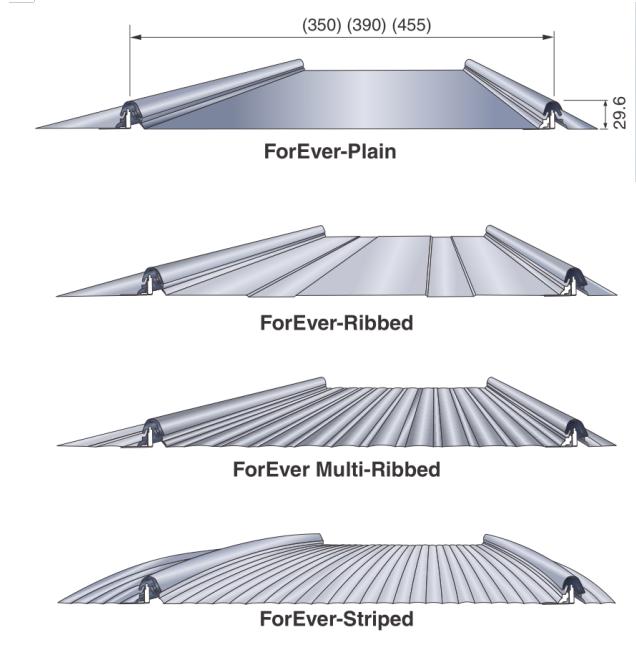

The drawing profile could be designed with different ribs:

For Zhongtuo rolling forming machine, we can design the ribs are adjustable. They will be designed with different embossing rollers, which one you need, simply down it, and the one you do not need, simple lift it.

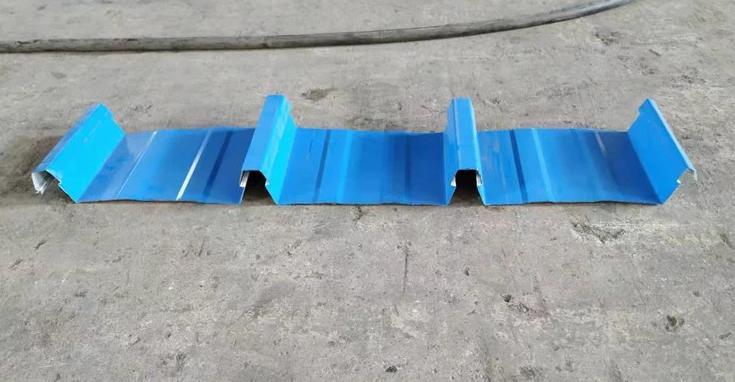

Features of Japanese Design Concealed Clip Lock Roofing Sheet:

Lightweight roofing with special concealed clip fixing. No holes hence leak proof.

Special designed clip fixing System makes it strong roof to wind, rain and earthquakes.

It supports the arc roof, available in many architectural designs: FR Plain | FR Ribbed | FR Multiribbed | FR Stripes

Available in materials-colour coated galvanized, galvalume.

Variety of colour available

Any length up to 12 meters. available more than 12 meters.

Some reasons why we recommend this design:

  1. Anti- earth quakes: A screw less roofing system fixed using concealed clip.Goby shape and compact integration of the childhanging and body makes it strong against wind, rain and earth quakes.
  2. Lightweight,economical and suitable for curved roofs.
  3. Smooth and Clean Look.

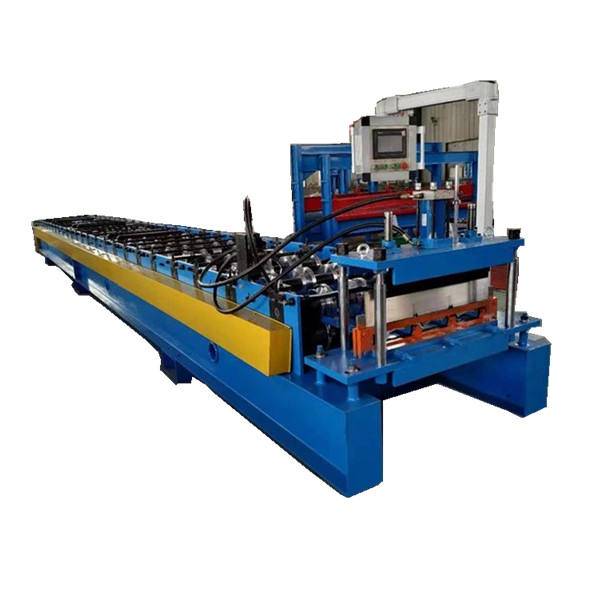

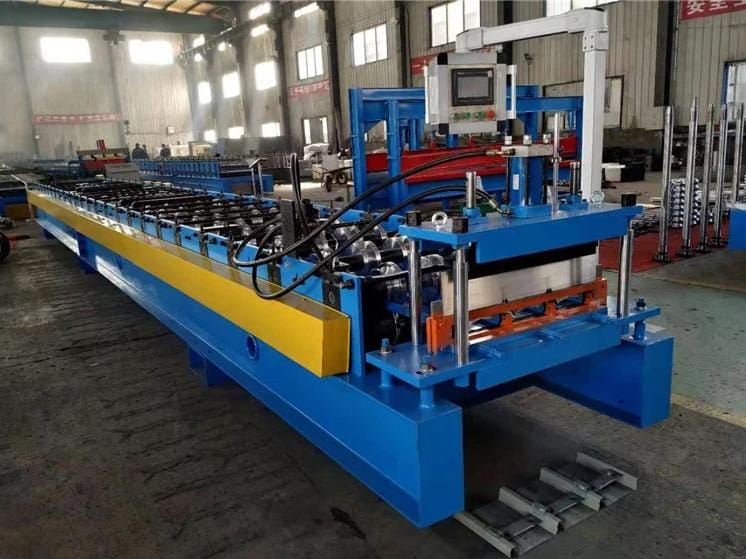

Japanese Design Concealed Clip Lock Roofing Sheet Rolling Machine

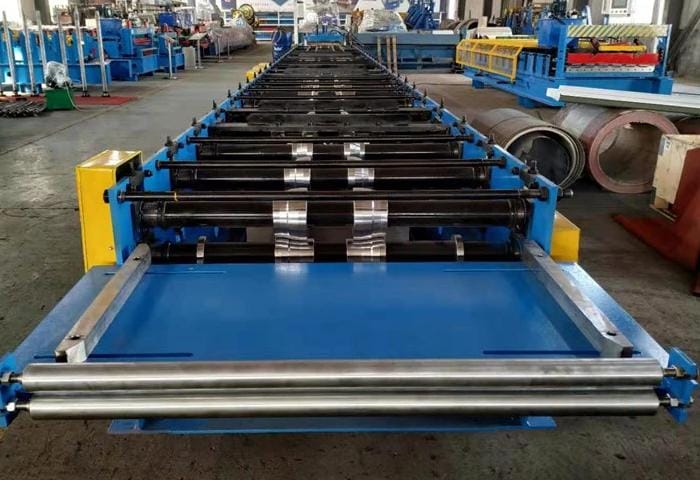

NO Clip lock concealed roof roll former machine
1 Suitable to process Color alu-zinc steel coil
2 Roller 26 Rows
3 Dimensions 18.2*1.65*1.7m
4 Motor Power 7.5Kw
5 Pump Station Motor 4Kw.Lichao Brand
6 Thickness of the plate 0.3-0.8mm
7 Productivity 10-15m/min
8 Material of the cutting blade Cr12,Quenched treatment 58ºC-60ºC
9 Diameter of the roller Φ70mm
10 Weight About 5800kgs
11 Main structure of the machine 400H beams
12 Processing precision Within 1.0mm
13 Side panel of machine 16mm
14 Chain Wheel and Cycle Chain 1 Inch
15 Voltage 380V 50Hz 3phases or as customer’s need
16 Control system PLC control (Delta)
17 Frequency system Delta
18 Drive mode Motor driver
19 Touch screen Delta
20 Rolling materials 45# forging steel with chromium plate
21 Length Tolerance ±2mm

The advantage of Clip lock concealed roof roll former machine:

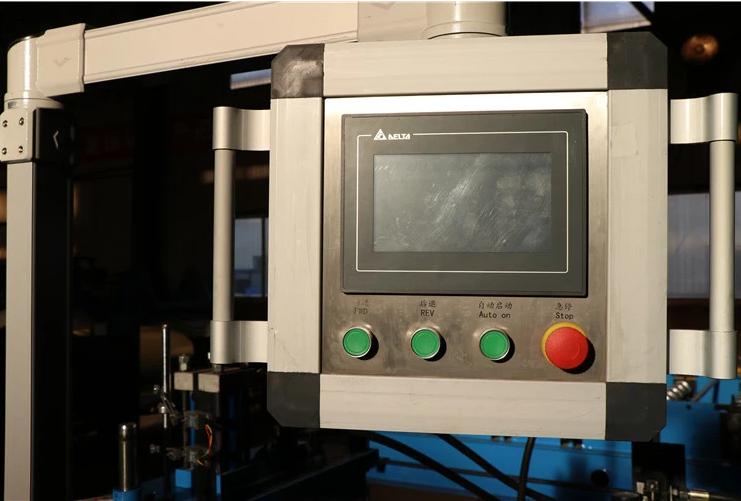

1.The system is easy to operate and use. PLC: Delta(Can customize as customer require)



2.The surface of the final product is very smooth and beautiful without any scratch on the surface.


For Japanese Design Concealed Clip Lock Roofing Sheet Rolling Machine, if you have any other questions, please let me know.
