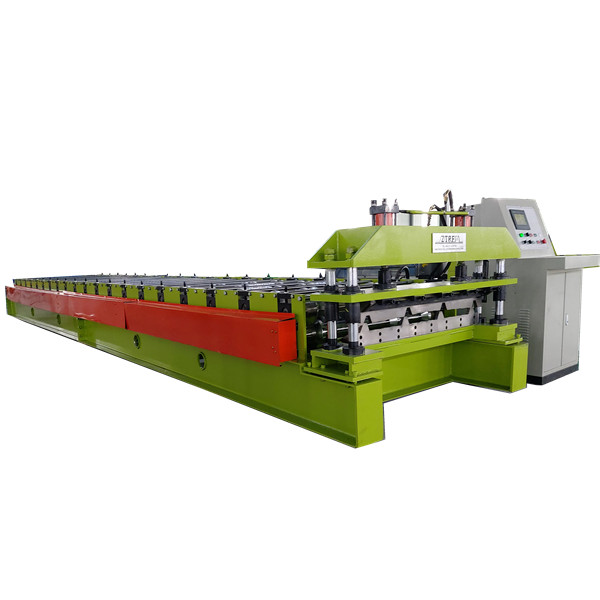

IBR Trapezoidal tile/panel roll forming machine popular mach

Trapezoidal tile/panel roll forming machine Ag/PBR panel making machine

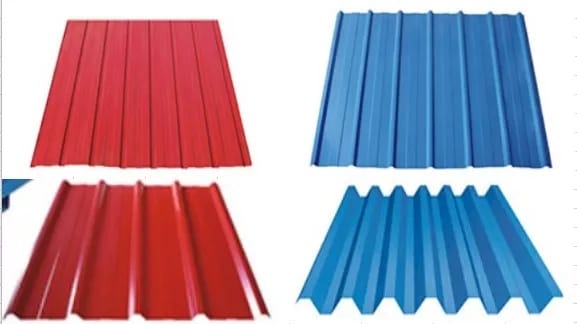

           Trapezoidal tile/panel roll forming machine is one of  most popular metal building material making machines,it can produce many kinds of  trapezoidal tile/panels,like Ag panel or PBR/R panel,which can be widly used in many scenes,like school,gym, warehouse,etc.

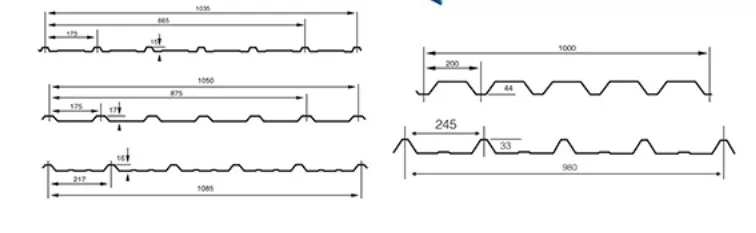

Here are some profile drawings for your reference:

Work flow:Uncoiling→ Feeding material into machine →Roll forming → Auto shearing →Products receiving table

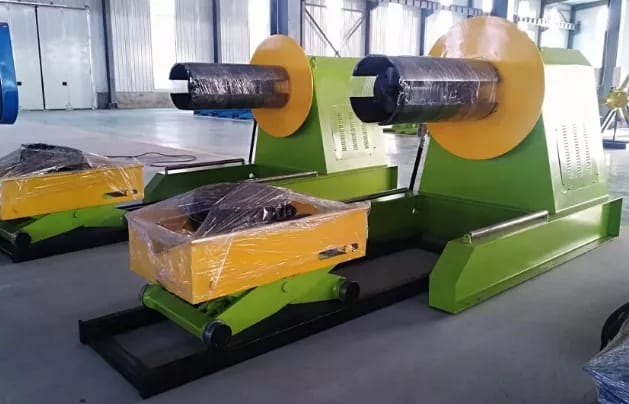

 Hydraulic Decoiler with loading car or you can choose the manual decoiler:



Loading capacity:5 T , 6Ton or  bigger
Uncoiling width: 1250 mm
Inner diameter: 450-550 mm

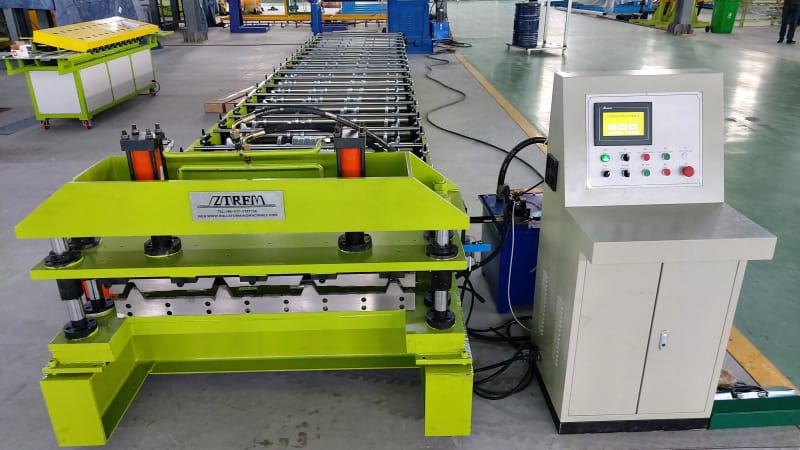

Roll forming system: power:5.5KW,speed:12m/min

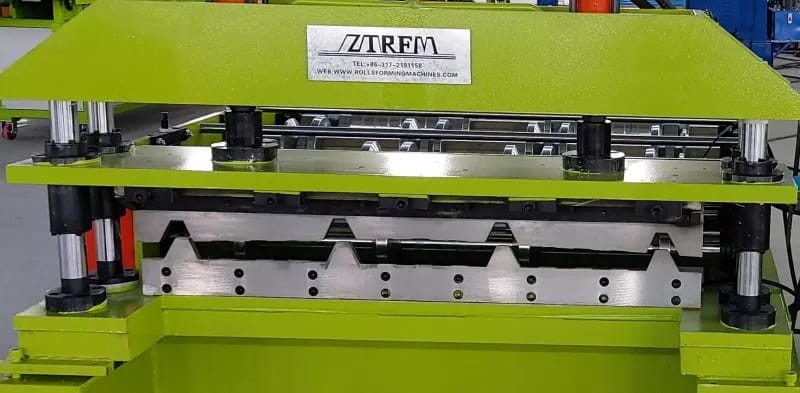

Auto shearing system of  Trapezoidal tile/panel roll forming machine:

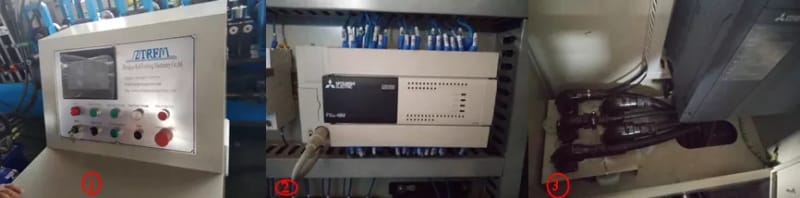

PLC system of  Trapezoidal tile/panel roll forming machine:

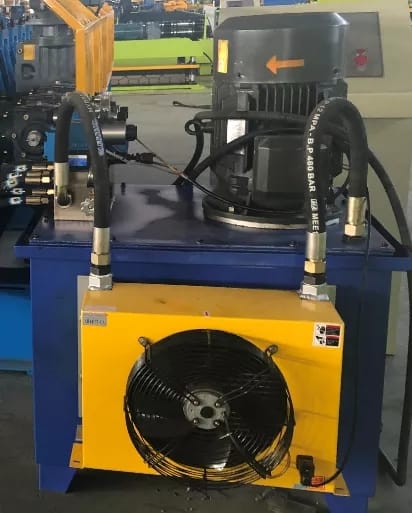

Hydraulic station  of  Trapezoidal tile/panel roll forming machine:

It designs with the big motor.

With the hydraulic cooling fan system.

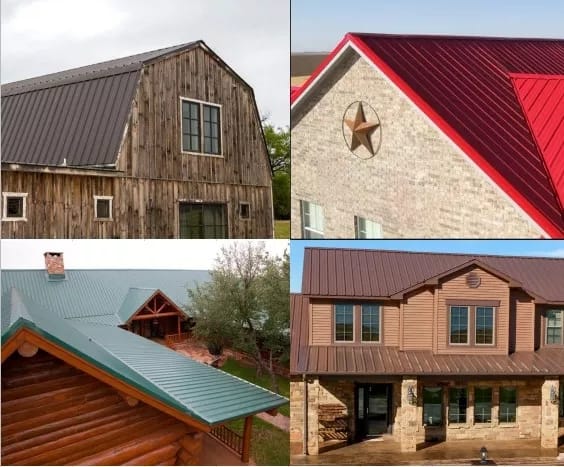

Here are some buildings built with trapezoidal tile/panel.
