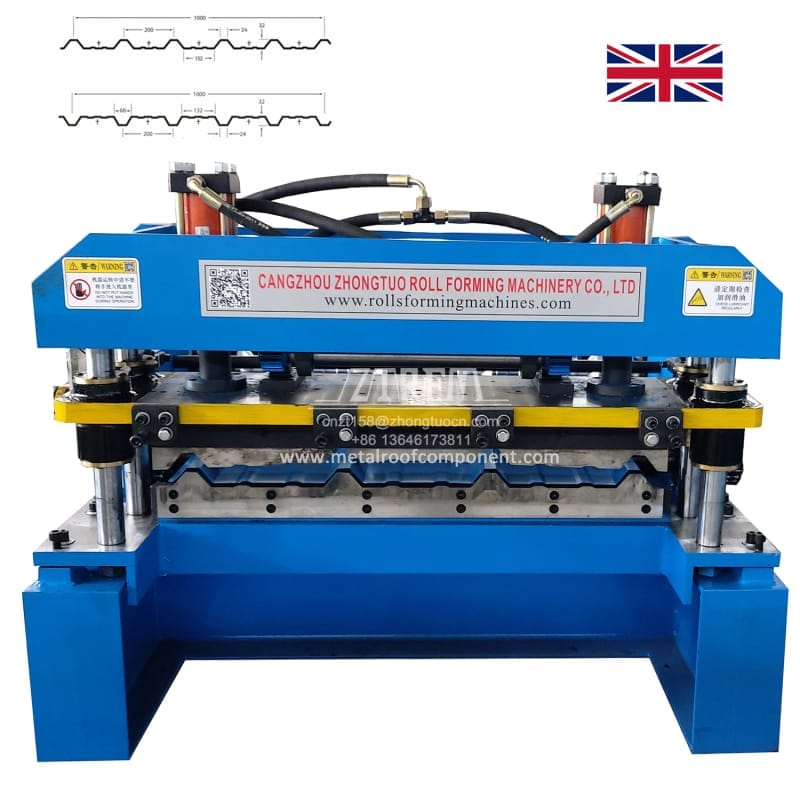

PV6 Metal roofing sheet roll forming machine

Introduction

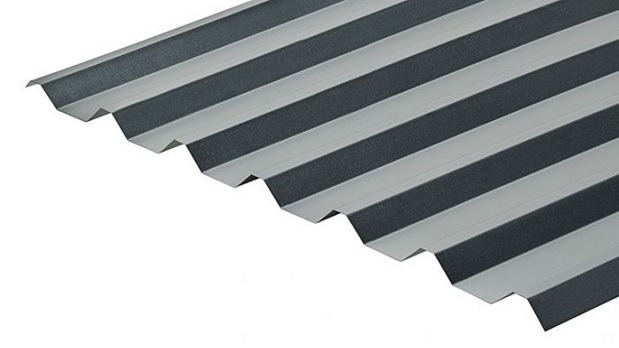

34/1000 box profile roofing sheets each single skin sheet having 7 strong 166mm profiles across its width. With a profile height of 34mm and coverage of 1000mm when installed, these box profile sheets give you a simple yet strong way to cover your build. Each 34/1000 box profile sheet will give your roof a secure weatherproof lap from sheet to sheet.

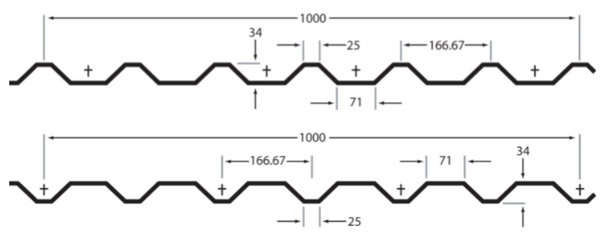

Profile Drawing




Machine Specifications

Roller stations	16 stations
Roller material	Gcr 15 steel quenching processing HRC 58-60℃ chrome plated
Shaft material	45# solid steel
Shaft diameter	70mm
Workding speed	0-20m/min
Hydraulic cutting blade	Gcr 12 Mov chromed and quenched HRC 58-62℃
Hydraulic cutting power	4.5kw
Hydraulic oil	46#
Transmission	Chain
Voltage	380v 50hz 3 phrase
Forming motor power	5.5kw
Machine structure	350# H-beam
Color	Blue & yellow (customizable)

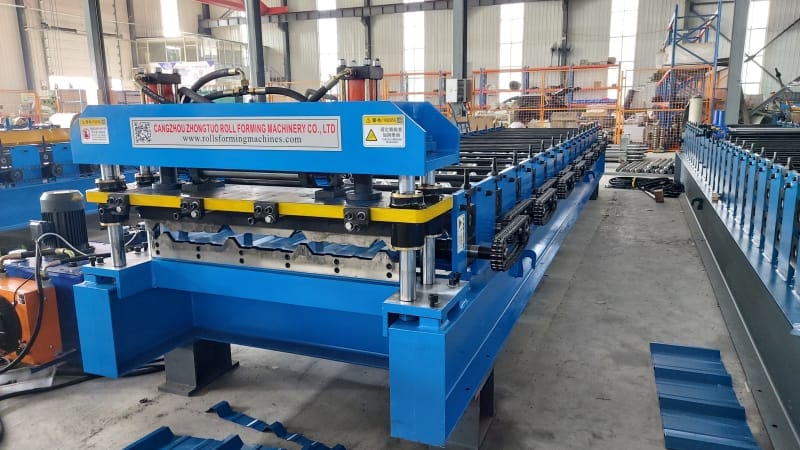

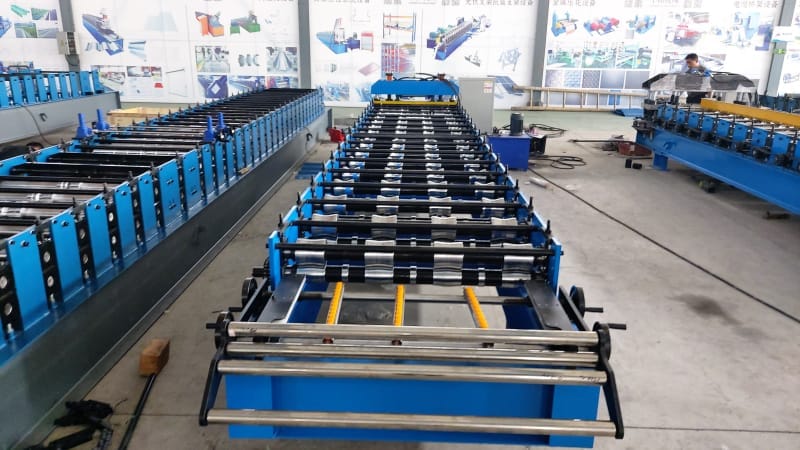

Machine Pictures
