Double Layer Machine for United States

Introduction Double Layer Machine for United States can manufacture two profile drawing roofing panels. These are the popular trapezoidal/ibr profile drawing in North American market. The specification for the machine can be customized such
Products Inquiry

PRODUCT INFORMATION


Introduction

Double Layer Machine for United States can manufacture two profile drawing roofing panels. These are the popular trapezoidal/ibr profile drawing in North American market. The specification for the machine can be customized such as production speed, logo stamping, and more. Our machine equip with removable switch, air break, radiator, transformer and electric leakage protector for operation convenience and safety. This machine is control by PLC system with world famous brand such as Mitsubishi Electric, Siemens, Delta to ensure flawless production wiht precision for a lifetime. It is ideal for manufacturing two different panels on demand with precision and efficiency.
This double layer machine can produce both trapezoidal roof tile and water wave roof tile . Feeding width is 1000mm , the finished trapezoidal roof tile is 840mm and water wave roof tile is 850mm . We have several set of same machine in stock , it has a big discount now . We also can produce the roofing sheet roll forming machine according to customer's requirement. Such as feeding width 914mm , 1200mm , 1219mm , 1250mm and 1450mm ect . If you want to know more about this machine , pls contact us freely . Contact: Zhang ; Tel/Whatsapp: 008615613740026 ; Email: cnzt007@zhongtuocn.com

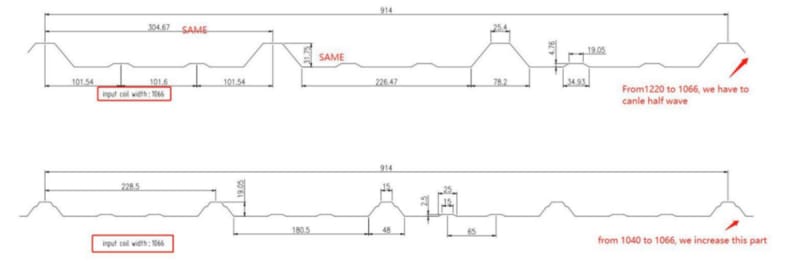

Profile Drawings



Machine Parameters

Roller stations
16 stations
Roller material
45# steel
Shaft material
45# solid steel
Shaft diameter
70mm
Workding speed
0-18m/min
Hydraulic cutting blade
Gcr 12 Mov chromed and quenched HRC 58-62℃
Hydraulic cutting power
4.5kw
Hydraulic oil
46#
Transmission
Double chain
Voltage
380v 50hz 3 phrase
Forming motor power
5.5kw
Machine structure 500# H-beam
Color
Blue & yellow (customizable)

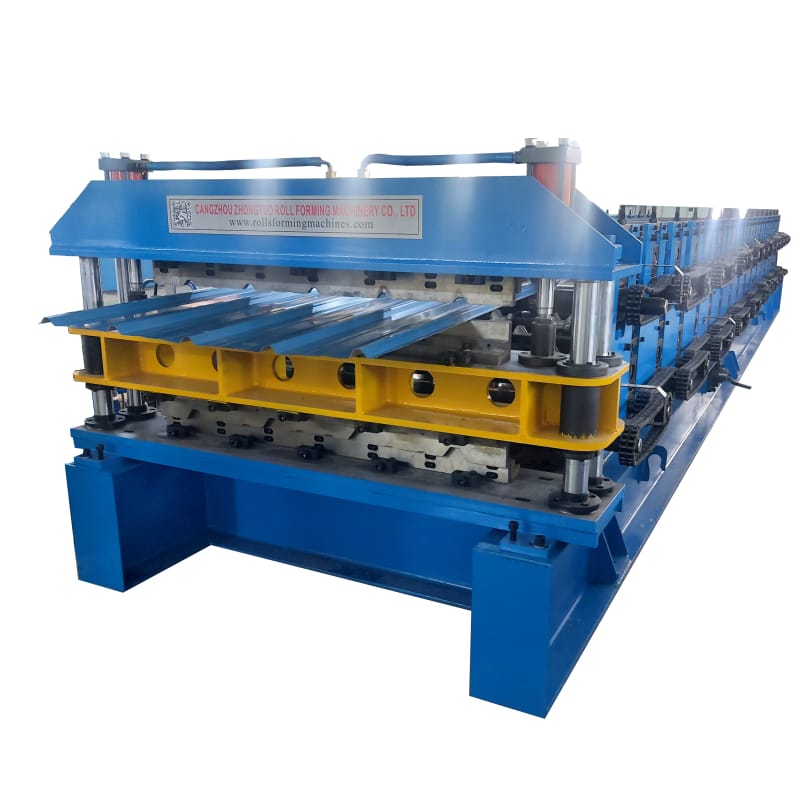

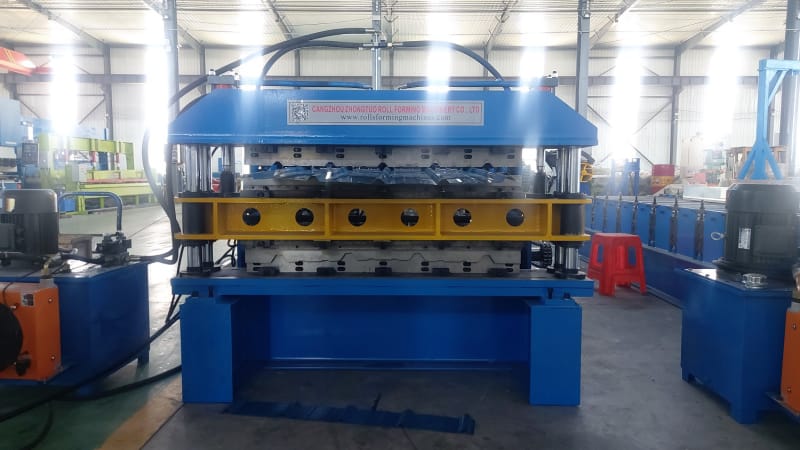

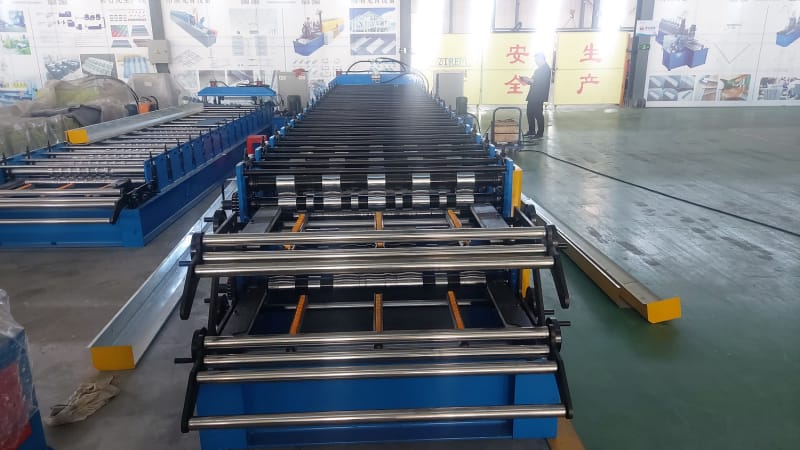

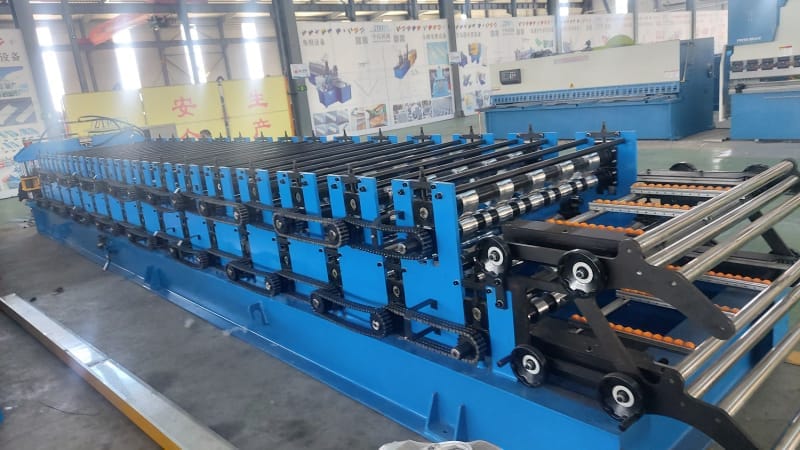

Machine Sample Pictures
