Slotted angle rolling forming machine

Source:未知Author:admin Addtime:2023-10-10 Click:

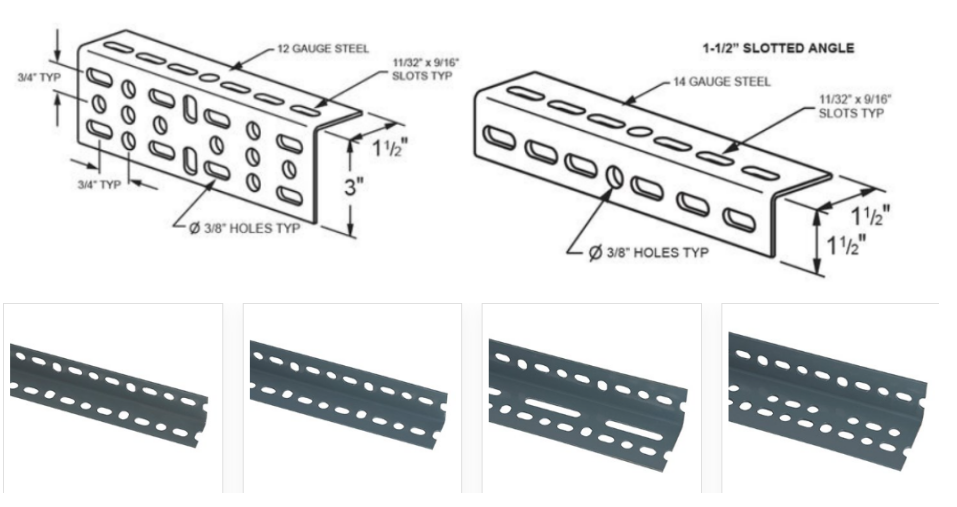

Slotted angle (also sometimes referred to as slotted angle iron) is a system of reusable metal strips used to construct shelving, frames, work benches, equipment stands and other structures. The name derives, first, from the use of elongated slots punched into the metal at uniform intervals to enable assembly of structures fixed with nuts and bolts, and second, from the longitudinal folding of the metal strips to form a right angle.Slotted angle rolling forming machine is designed to make the slotted angle in batch fully automatically with punching. Here are some drawing profiles for your reference:

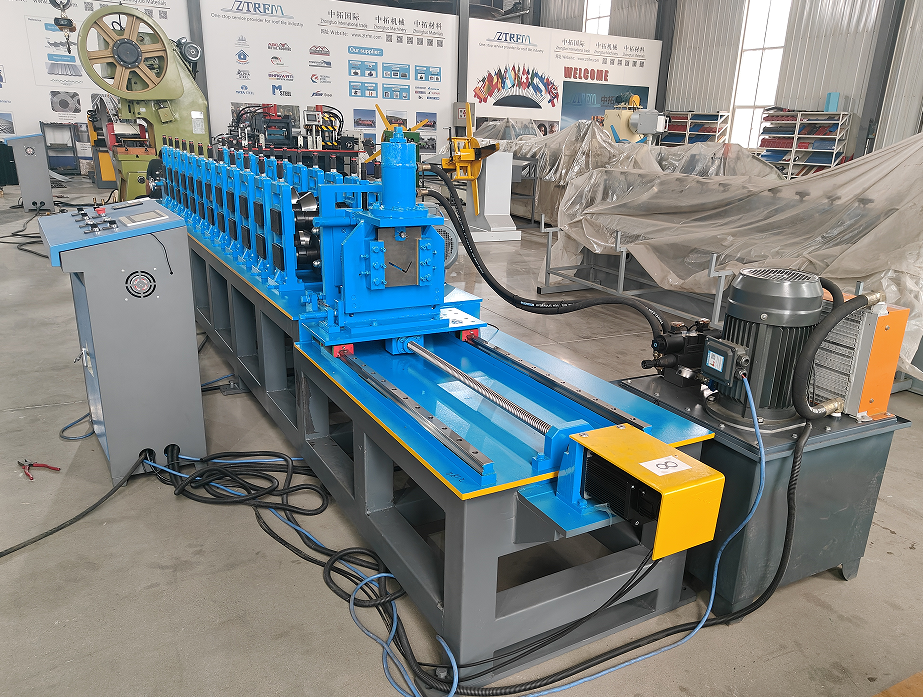

Slotted angle rolling forming machine:

Packing list-machine components
No.	Name	Unit	Quantity
1	3T uncoiler(manual decoiler) or hydraulic one	set	1
2	Leveling system	set	1
3	60 Ton punching device	set	1
4	Main roll forming machine	set	1
5	Cutting device	set	1
6	Output table	set	1
7	PLC control system	set	1
8	Oil pump	set	1

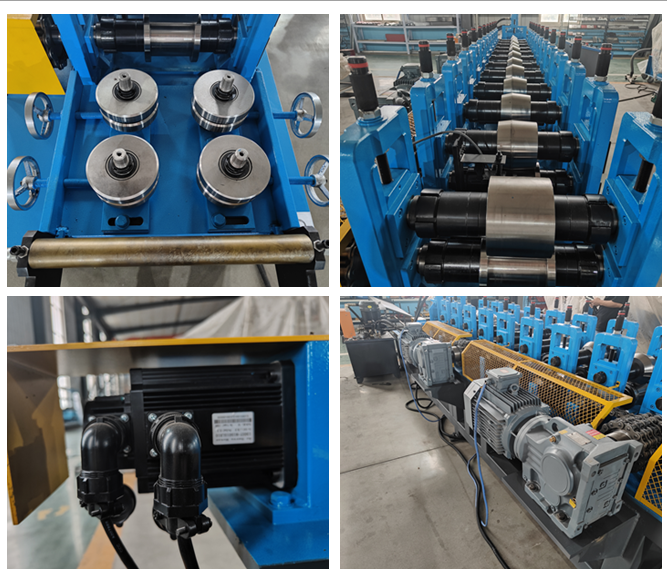

Feeding device	Bearing brand:Harbin
Shaft material	45# STEEL
Shaft diameter	80mm,solid shaft
Roller material	GB-Cr12 mould steel with quenched treatment
Roller station	16 stations
Bearing	China famous brand Harbin
Work speed	0-60m/min(including cutting process)
Work power	22 kw
Transmission	By gear(more precision and faster than chain)
Voltage	AC 415V,50Hz,3Phases(Or as customers’ request)
Appearance	Good appearance with no burrs in steel body nor traces of rust or defects in painting. Good electrical and hydraulic cable organization Car painting make the machine more glossy

For the punching machine, you can choose to use the YangLi brand, or normal brand punching machine and then the cost will be different.

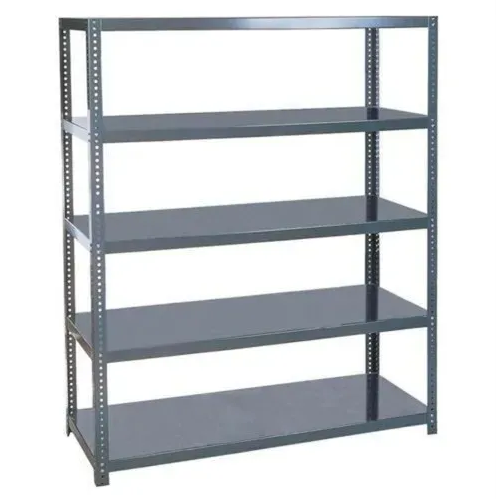

Where is the slotted angle used:

Slotted angle rolling forming machine working videos for your reference:
