Picking beams or Z beam rolling forming machine

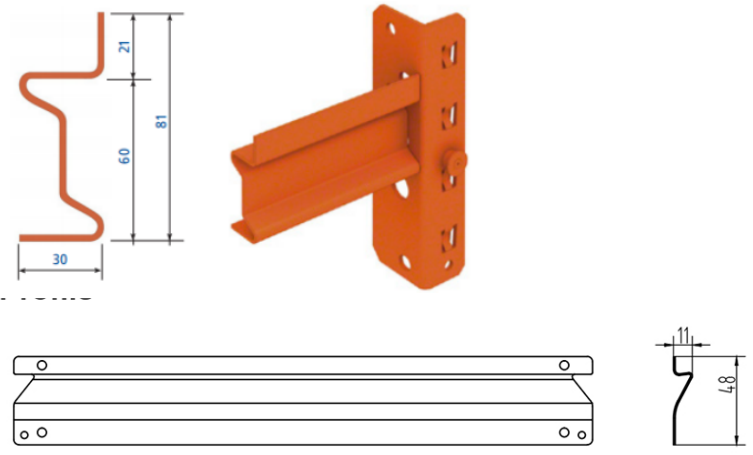

Picking beams or Z beam rolling forming machine is designed to make the Z beams or picking beams in batch fully automatically. Shelves can be fitted into these picking beams, and then used to store loose goods or pick items from them. ZS-60P Z beam this profile, made of a Z-profile welded to a four-hook connector

at each end, is folded to create a raised edge into which shelves can be placed. This beam is used to create picking levels in pallet rack installations. Z-Beam Boltless Shelving Roll Forming Machine

Picking beams or Z beam Rivet Shelving rolling forming machine

Work Flow of Picking beams or Z beam Rivet Shelving rolling forming machine

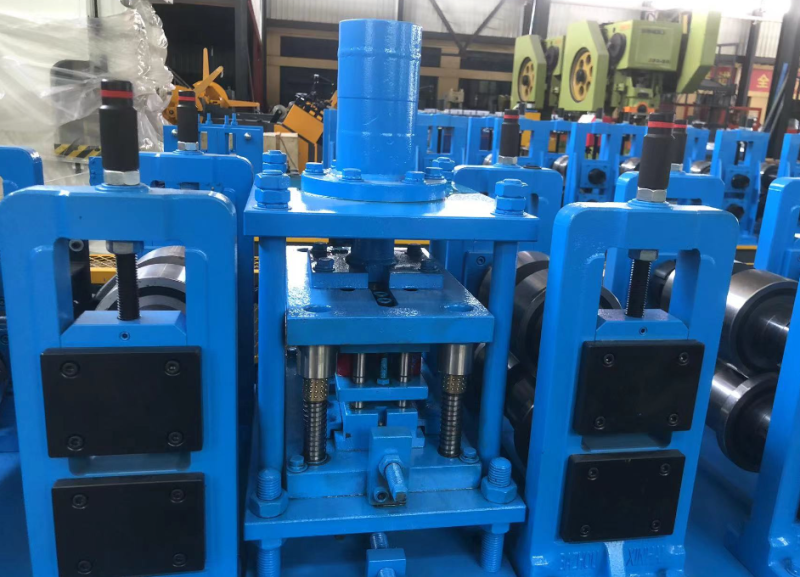

Decoiler→Feeding Guide Device→Leveling Device→Punching Device→Roll Forming System→Hydraulic Post Cutting Device→Exit Rack

Advantages of Z beam Rivet Shelving rolling forming machine

1. Top accuracy, the accuracy could be controlled within 0.5mm.
2. Before punching, higher in speed and lower cost.
3. Use molding frame, when higher speed, it can also work steady.

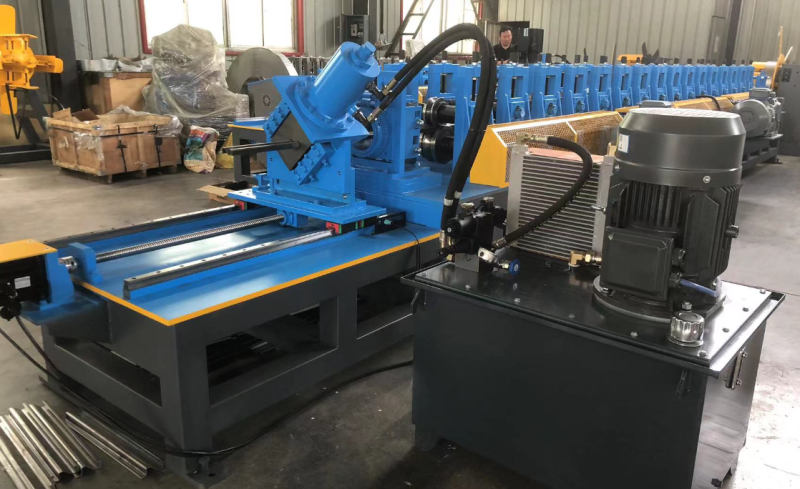

4. Big hydraulic station with cooling fan for powerful shearing.
5. Servo motor shearing to enhance the working speed.

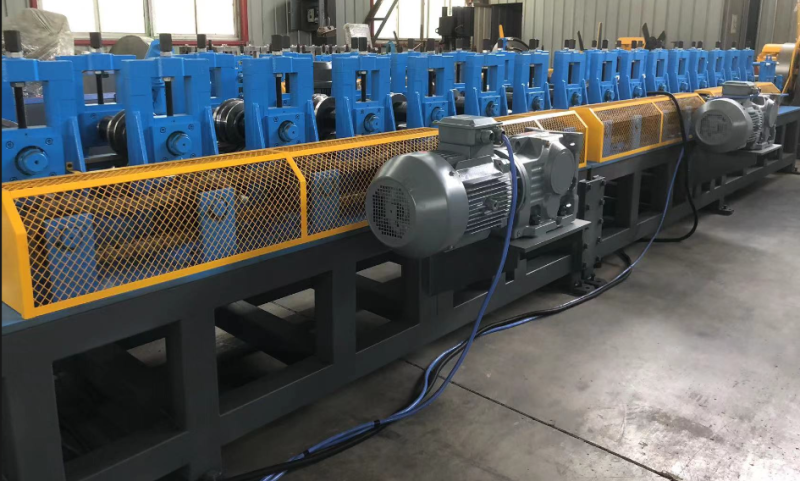

6. With the protection cover for safety.

7. Hydraulic shearing for cutter the corner.

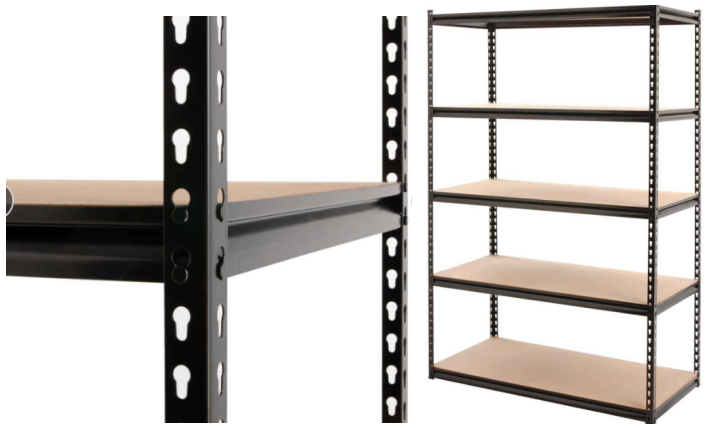

Picking beams or Z beam Rivet Shelving usage and application.
