Rack Upright Roll Forming Machine

Source:未知Author:admin Addtime:2023-07-04 Click:

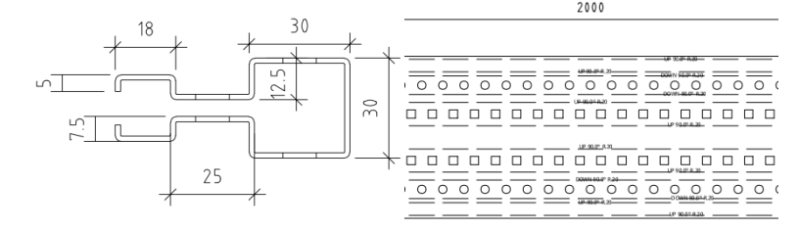

Rack Upright Roll Forming Machine is designed to make the rack upright profile in batch fully automatically. Storage pallet racking is a common storage device used to store and organize goods in a warehouse or industrial setting. Here are some general dimensions and accessories for storage pallet racks and I take a random one drawing profile for your reference and then share more information about how the Rack Upright Roll Forming Machine is designed:


This design is quite special like other upright profiles but the working principle is same. This machine takes galvanized steel or cold rolled steel as the raw materials,

through the a series steps to form it into a shelving profile with specific shape and size.

The forming steps devices include decoiler, Feeding and Leveling Device,

Hydraulic Punching device,main forming mill, hydraulic post-cutter.

The inverter controls the motor speed, the PLC system controls length and quantity automatically,

therefore, the machine achieves a continuous automatic production,

which is the ideal equipment for cold roll forming industry.

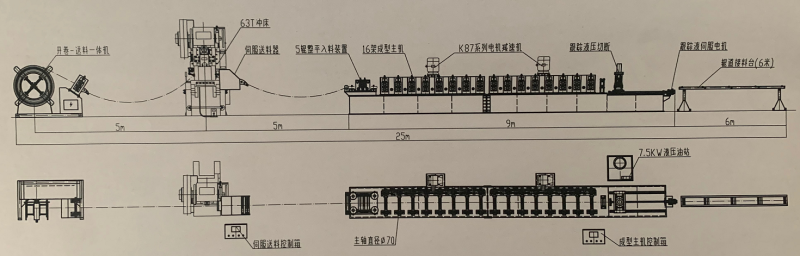

NO.2. Flow Chart of Rack Upright Roll Forming Machine:

Decoiler →Feeing and Leveling Device→Hydrualic Punching device →Main forming machine

→ Hydraulic post-cutting→Exit rack.


Punching machine

Punching power


Feeding Part

Pressure roller material

Stainless steel

Feeding width adjustment


Main roll forming machine


220V 60Hz 3Phase (as customer request)

Frame type

Molding frame

Drive mode

1.2 inch Chain with Gear drive

Material of rollers

GCr12 Quenching

Material of shafts

45# steel with tempering

Diameter of shafts


Number of rollers

20 rows of roller station

Main motor power

11 kw + 11 kw

Material thickness


Forming speed

10 m per minute

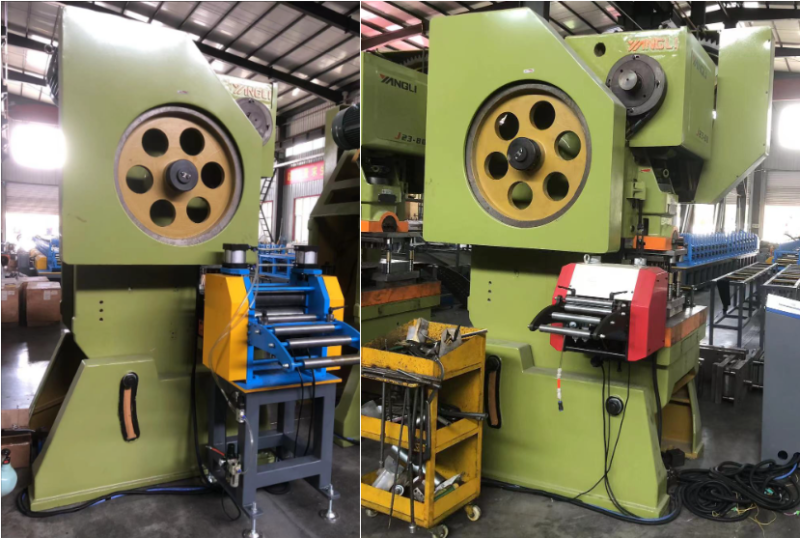

As to the punching machine, you can choose the type you like, here is one example for your reference:

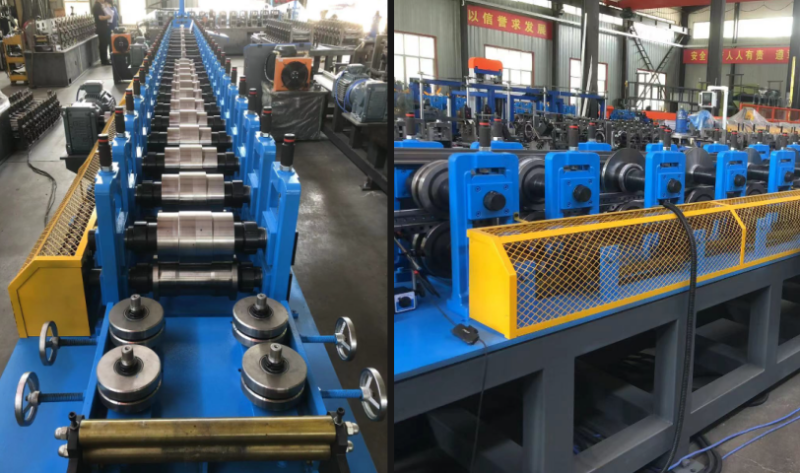

Roll forming machine combined with body frame, transmission mechanism and forming rollers, etc.


a)The body frame is side wall type: main shaft diameter φ75mm,made from 45# steel, heat treatment. The lower shaft is main transmission by gear chain.

b)Transmission by motor driving, gear chain transmission or you can

c)Rollers manufactured from bearing steel GCr12move, you can call it as D2,precision machined ,hard Chrome Coated,HRC50-60 with high durability

  1. d) Body frame made from  H450 type steel by welding with beautiful appearance, natural aging treatment and SR(stress relief) treatment.


  1. We design with the molding frame thickness is around 35 to 45mm, more steady and long time to use.
  2. We design with protection cover.

3.With turkey head for straight when making.

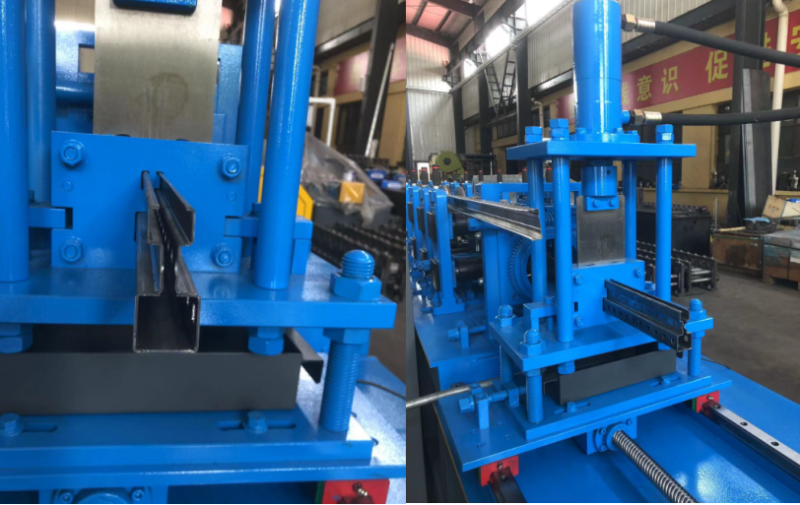

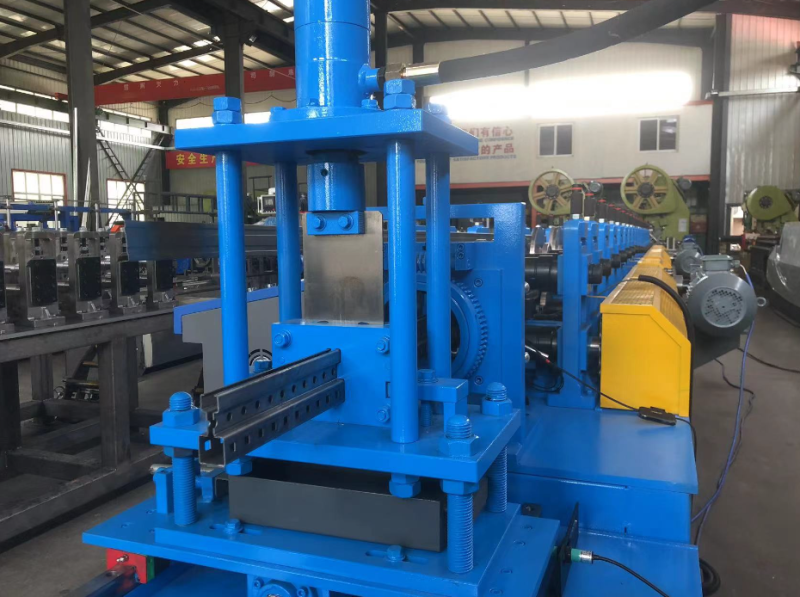

Now we can check the shearing system.

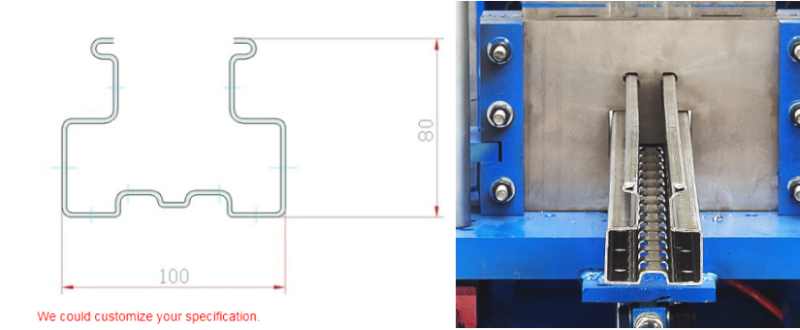

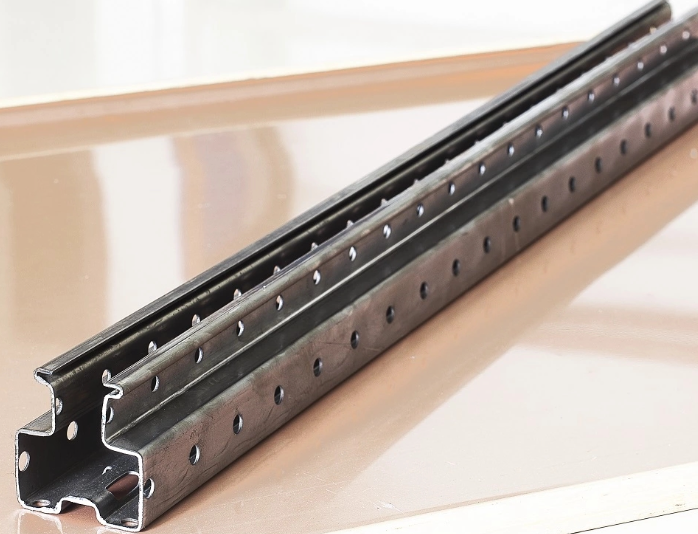

And there are more other profiles for your reference:



And those machine, if you need to know more information, please contact us at any time.
