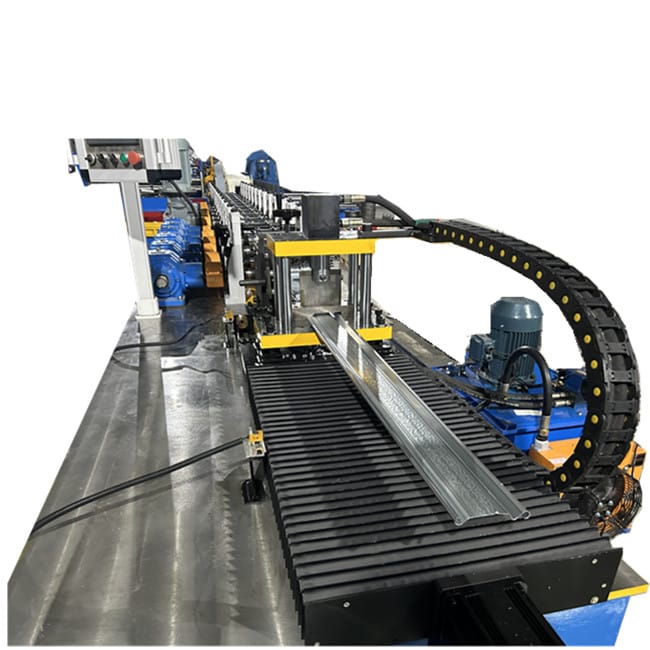

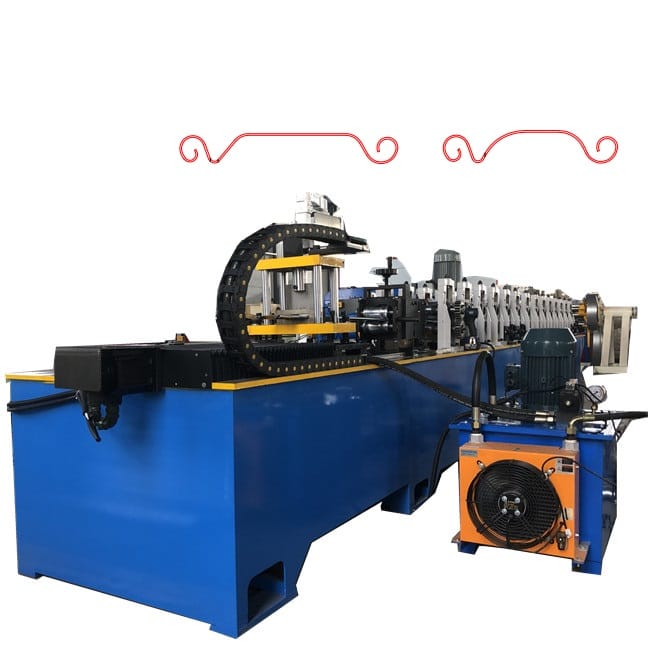

High speed rolling shutter machine 35 meter per minute
High speed rolling shutter machine 35 meter per minute is designed to make the rolling shutters in batch fully automatically with embossing. The Roller shutter is a door that is connected in series with multi joint movable door pieces and rotates up and down in the fixed slide way with the roller above the door as the center. Roller shutter is usually widely used in shops.

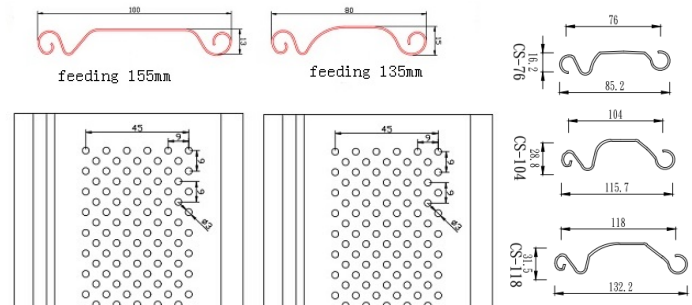

The Roller shutter, like the wall, plays the role of horizontal separation. It is composed of many parts, such as the shutter, base plate, guide rail, support, reel, box, control box, rolling door machine, limiter, door header, manual quick release switch device, button switch and safety device. It is generally installed at the location where wall separation is inconvenient. Here are some drawing profiles for your reference:
For the profile making, one machine we can design it either with punching or without punching. One machine we can design it either with embossing or without embossing.
Advantages of high speed rolling shutter door machine:
1. The machine we designed using gearbox transmission for long time to use and small noise.
2. The machine we use the molding frame so even if in high speed working, it still steady.
3. Using servo tracking shearing system to reach the high speed, non-stop shearing and cutting.
4. More type embossing rollers, you can choose to use which type embossing.

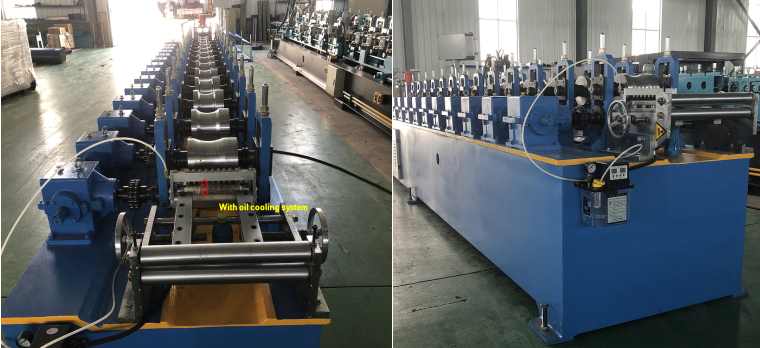

5. With oil cooling system to make sure the rollers are cool when high speed working
More parameters of the high speed rolling shutter door machine:
Rolling shaft: Shaft material: 45# steel
Shaft diameter: 50 mmTempering treatment
Roller Roller : material: Cr12 Quenched treatment
Rolling station :14 stations
Machine frame:Molding frame of thickness 35 to 45mm
Machine body:steel plate welded with grinding
Bearing :Chinese famous brand Harbin Work power 7.5 kw
Transmission: By Gear box
As to the PLC, you can chose the portable type or cabinet type:

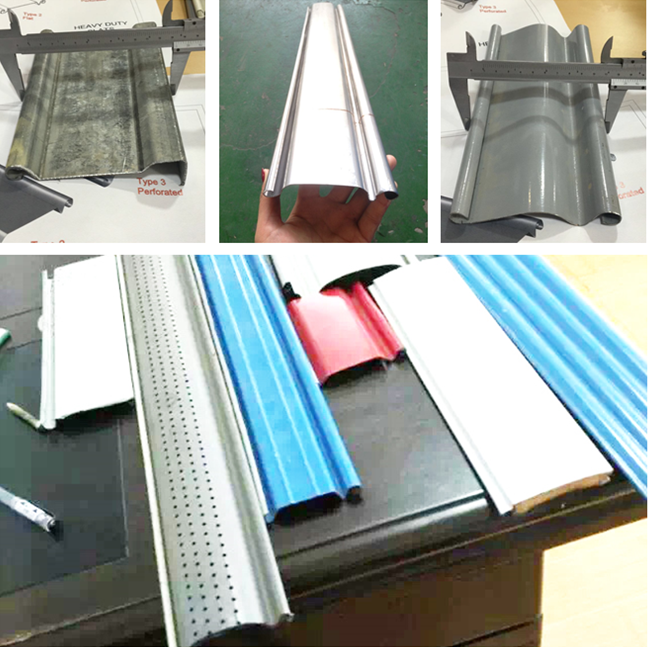

Here are more types shutter designs for your reference:
this mill capable to produce shutter profile up to 25-50mtr/min. closed loop servo flying cutoff provides least length tolerances with high performance, you may contact us at
cnzt007@zhongtuocn.com, +86-15613740026 (call/WhatsApp)
