Rolling shutters and rolling grilles require very little headroom above the structural opening. They roll up compactly behind the lintel. No valuable hall space is lost at the sides or ceiling. In fact, we can supply different kinds of roll forming machines for different shutter doors and the rolling shutters rolling forming machines have been sent to lots of countries. If you have yourself door design, show us your design drawing, the good suggestion can be given out by our engineer. If you have any idea about your new project, some professional idea can be getting from us. Here we will take the popular design in Algeria for your reference:

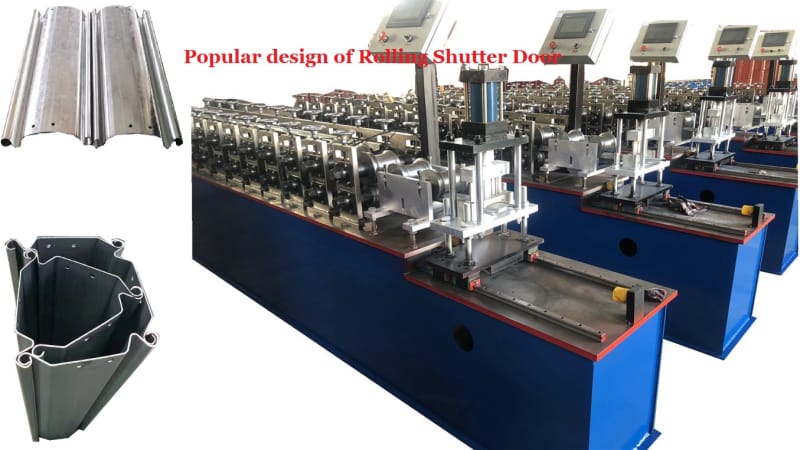

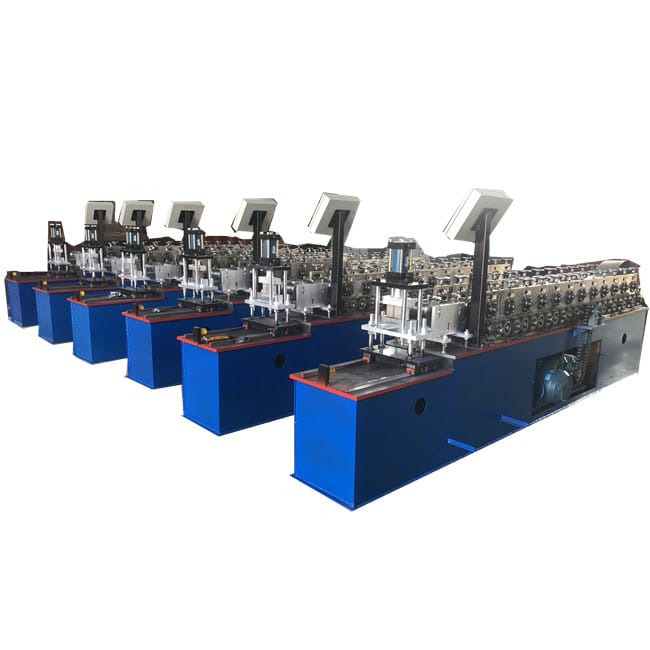

Features of Popular Design of Rolling Shutter Machine for Algeria:
1. Fully automatic and controlled by PLC, the rolling speed can reach 25 meter per minute.
2. The frame uses pillar design, looks more beautiful and long time use, will not go rusting easily.
3. Lower cost but high quality, that is the reason why it is quite popular.
4. Use the Gcr12 for the roller material and it could be used for a long time.
5. Portable PLC control, take up small space.
6. Small and smart design of the machine.
Here are some parameters for your reference:
|
No. |
Item |
Specification |
|
1 |
Can Formed Material |
GI,AI |
|
2 |
Equipment operation |
Automatic |
|
3 |
Voltage |
380V 60Hz 3Phase or as your requirement |
|
4 |
Thickness of sheet (mm) |
0.8-1.2mm |
|
5 |
Material width(mm) |
As your requirement |
|
6 |
Cover Width of the sheet after formed |
as your drawing |
|
7 |
The size of the roll forming machine |
5000mmx800mmx1400mm |
|
8 |
Speed |
8-15m/min |
|
9 |
Diameter of shaft |
40mm |
|
10 |
Weight of the Machine |
3000-3500KGS |
|
11 |
Material of rollers |
C45 steel quenched and chromed |
|
12 |
Motor brand |
Siemens or Guomao |
|
13 |
PLC |
Siemens or Delta or Mitsubishi |
|
14 |
Total power (kw) |
8kw |
|
15 |
Power of hydraulic system |
4kw |
|
16 |
Power of main molding core |
4kw |

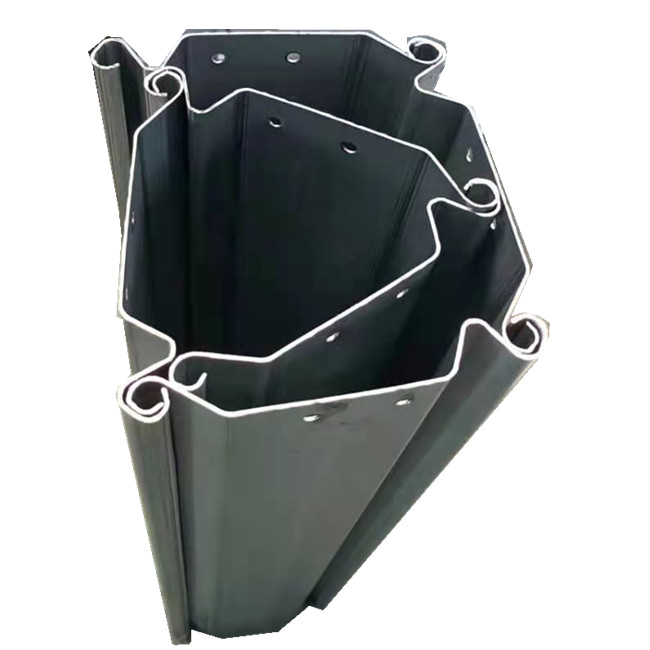

We also supply the following tube related to the shutters:
1.Guardrail.
2. Bottom rolling shutters.

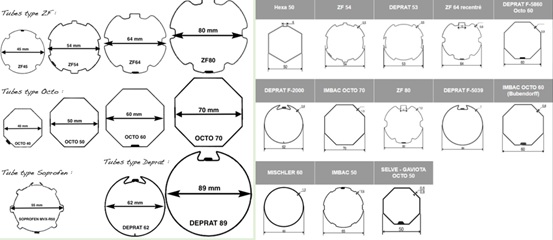

3. Shutter Octagonal tube
4. Rolling shutter protection cover.
All those elements rolling forming machine design could be customized according to the rolling shutter design. Actually all elements are optional like molding frame, middle plate frame, or others. And the machine you can choose hydraulic shearing, disk shearing or flying shearing cutting saw.
And other elements, only if it could be made by rolling, we can try to design for you.

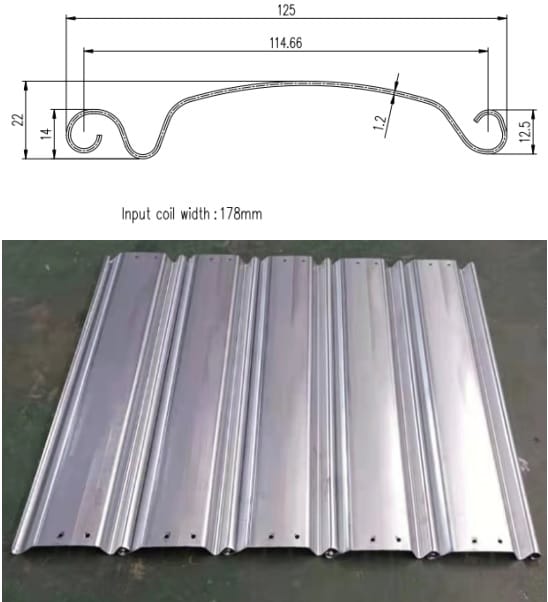

Here are more drawing profile for your reference:
If you need to know more information, please contact us at any time.
