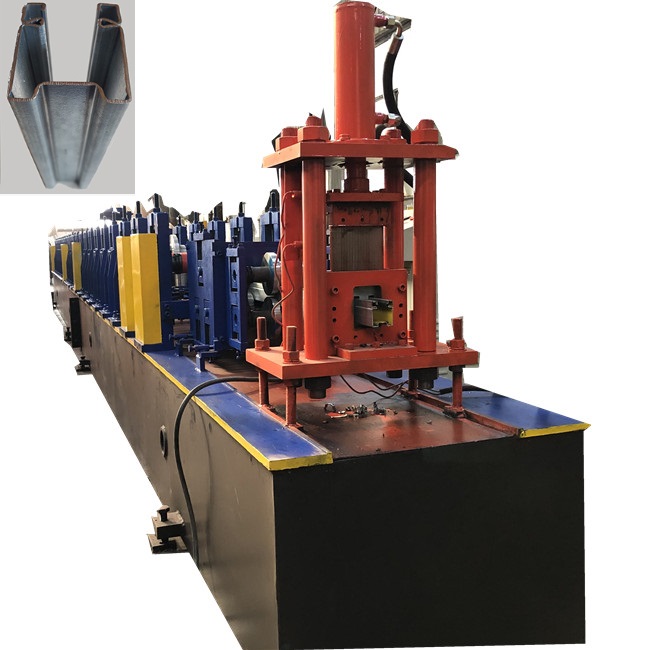

Rolling shutter rail rolling forming machine with anti noise

Rolling shutter rail rolling forming machine with anti noise rubber seal filling online

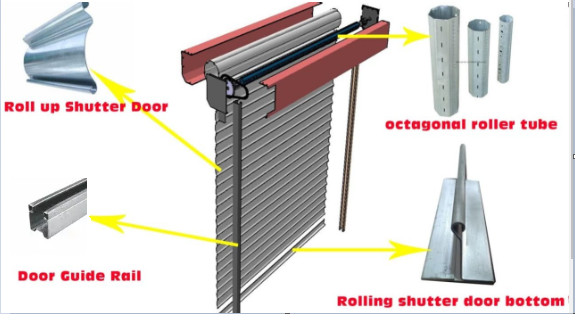

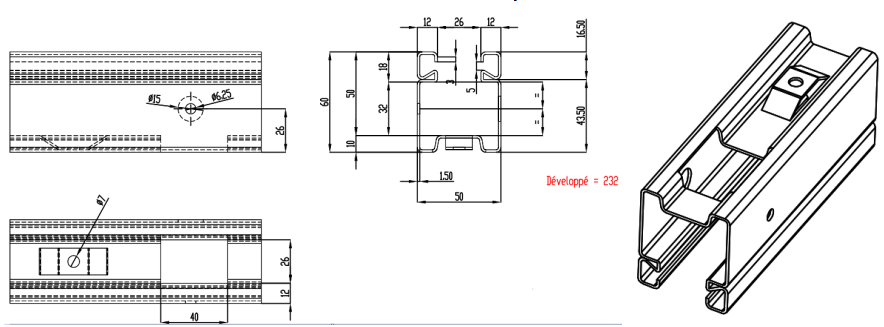

In the daily rolling shutter using, there is big noise. The noise normally is from your roller shutters sliding from bottom to top. Now we have one type rolling shutter rails with the rubber seals online and by this way, it can make the anti noise rail. Here is some drawing profile for your reference.

The machine is composed by the following elements:

Parts 1: 3T decoiler (3 Ton decoiler) set 1 Manual Free as default

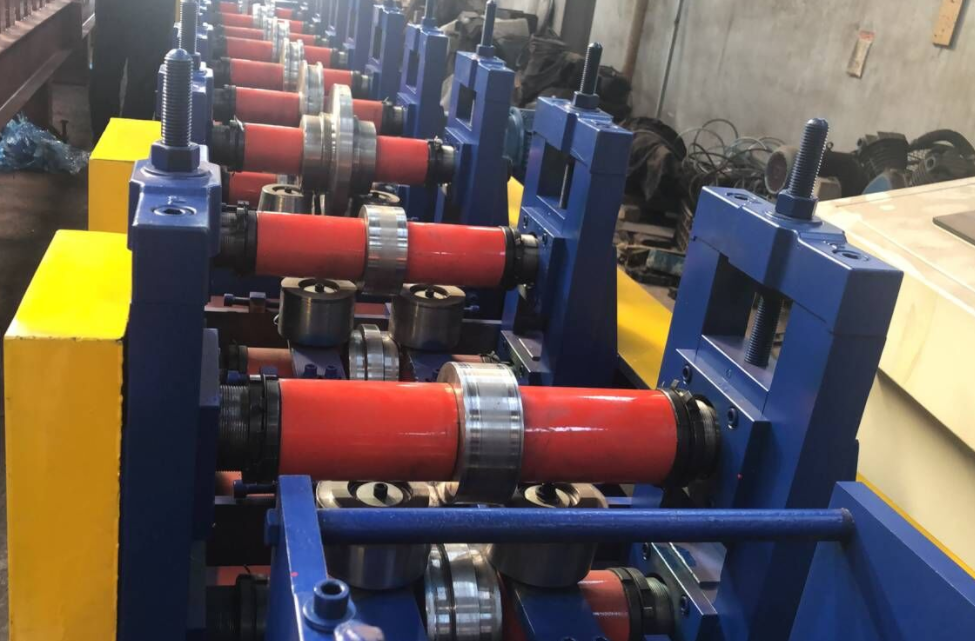

Part 2 Main roll forming machine mold frame and gearbox set 1

Part 3 PLC control station set 1 Siemens brand with WiFi sensor

Part 4 Hydraulic Cutting system (Disk shearing optional) set 1 Hydraulic

Part 5 Product table set 1 Regular

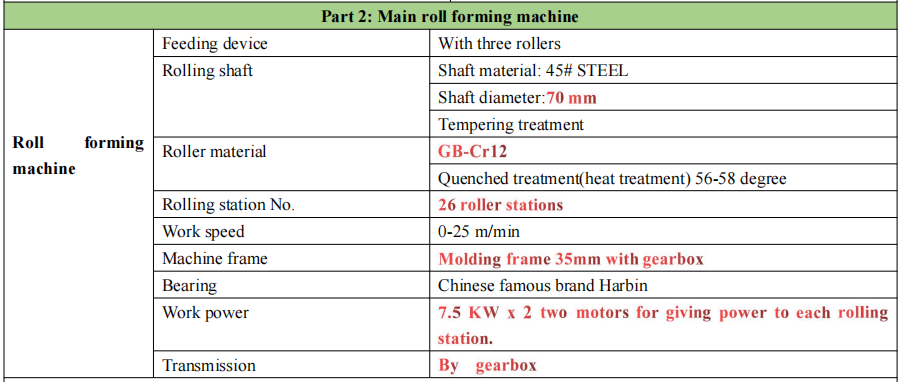

Rolling shutter rail rolling forming machine parameters for your reference:

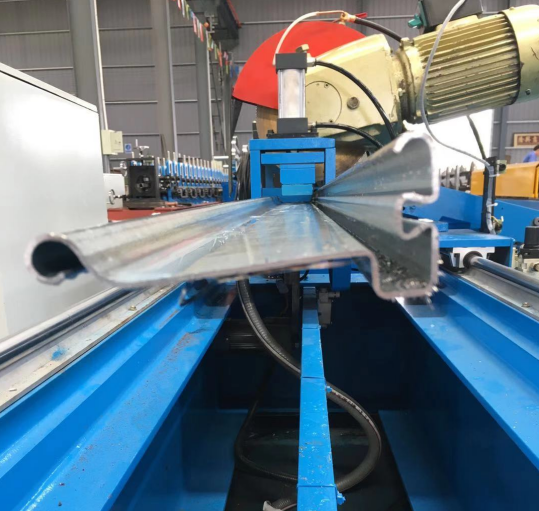

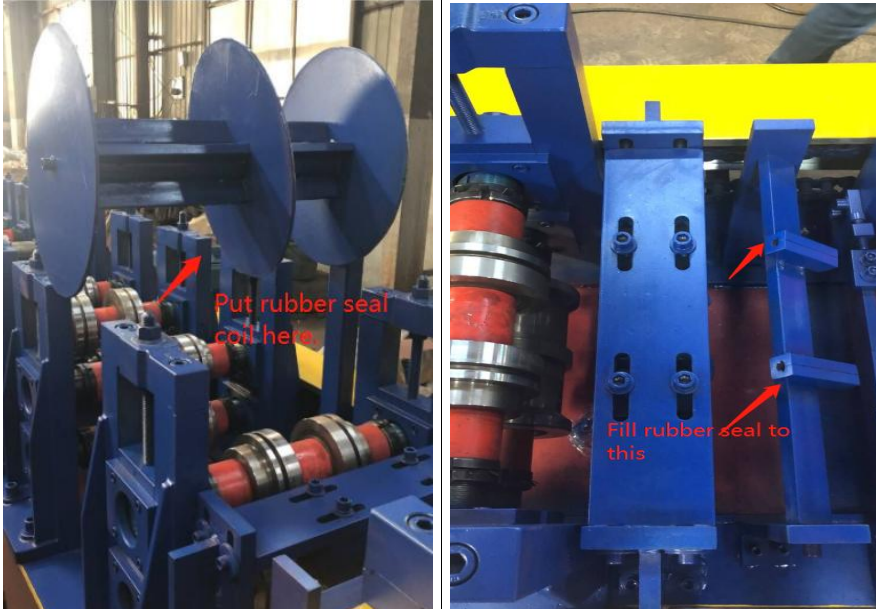

Different of our Rolling shutter rail rolling forming machine with anti noise rubber seal filling online with other suppliers, we also add the rubber seal online feeding and then no need you fill offline.

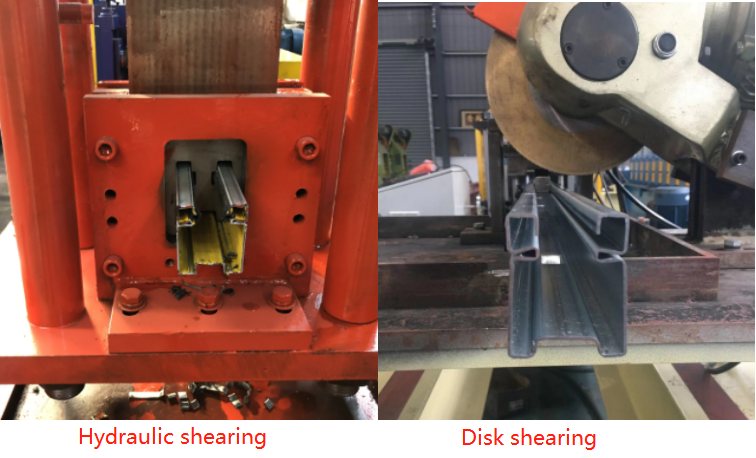

As to the shearing part, we have two types for your reference:

Shearing type 1: molding shearing

Type 2: Disk shearing.

For the hydraulic shearing, it is good for safety but there will be some wasted coil. And the shape will change a little bit. For the disk shearing, there will be some big noise when shearing but it is cost a little lower and the working speed will be a little faster. But you can choose according to your own design.

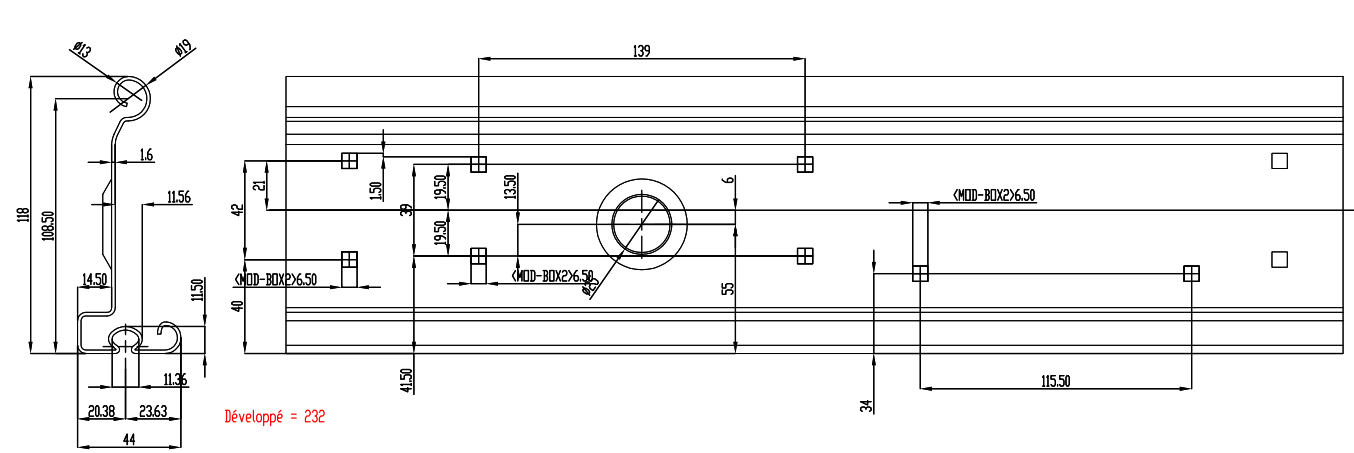

Together with this profile, the following profile as the shutter bottom slat is also popular also.
