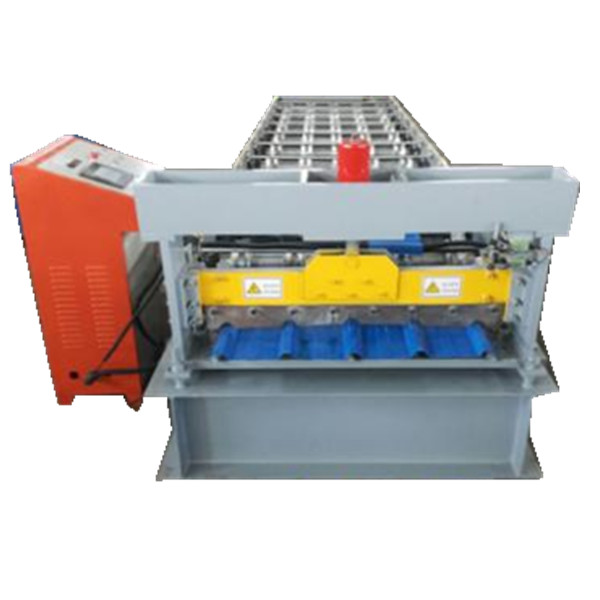

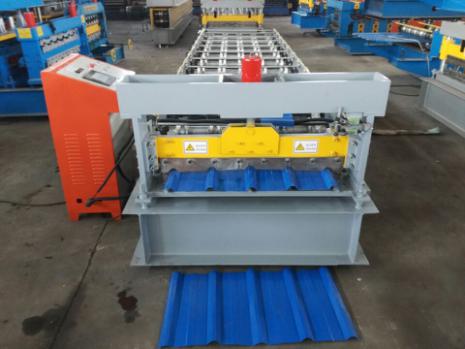

ZT840 Roof sheet roll forming machine

Introduction
ZT840 roll forming machine consists of uncoiler and it’s base,infeed guides,fixed position driven forming machine,shearing device,hydraulic station,PLC control console and so on. Our company has hundreds of profile models for this series roll forming machine,we can design different kinds of profile and fittings for machine, as per customers’ requirement.



Technical Parameters (depending on specific requirements of customers)

Suitable steel plate





 Type Color steel plate,



galvanized sheet,

aluminum coils,etc
Thickness As users needs
Production speed 8-12m/min
Roller stand 11 rows
Roller Diameter 80mm
Main power 3kw
Pump power 4kw
Side panel of machine 14mm
Roller material Carbon 45# steel
Blade material Cr12
Control system PLC Control
Main structure of the machine 300mm H-Beam

Work-flow
Decoiler– Roll Forming Part– Control System– Hydraulic System– Cutting– Output table

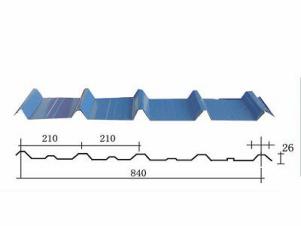

Profile drawing
