Metal Roof Roll Forming Machine

Category: roofing machine
Products Inquiry

PRODUCT INFORMATION

Metal Roof Roll Forming Machine

ZT35-820Profile Roof Panel Roll Forming Machine is designed for making the metal roof panel sheet production in batch fully automatically. Metal profile ZT35-820 is designed as:

The wave height is 35mm, the effective width is 820 and we use the input coil width is 1000mm. And this metal profile is popular in Europe, and other counties.

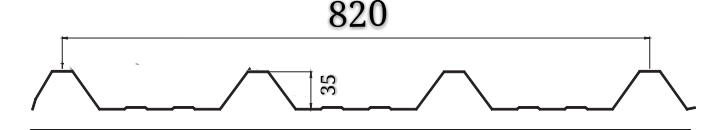

ZT35-820 Profile Roof Panel drawing profile for your reference:

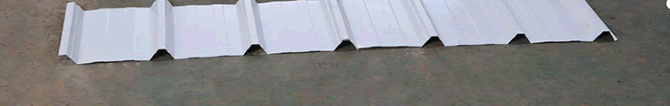

Finished product profile:

ZT35-820 Profile Roof Panel Roll Forming Machine is Suitable for processing material thickness 0.3-0.8mm. And the shafts manufactured from 45# ,Main shaft diameter=75mm, precision machined. And as to the power motor driving,Gear chain transmission,14 steps to form.Main motor=5. 5KW,Frequency speed control. Forming speed approx. 12-15m/min

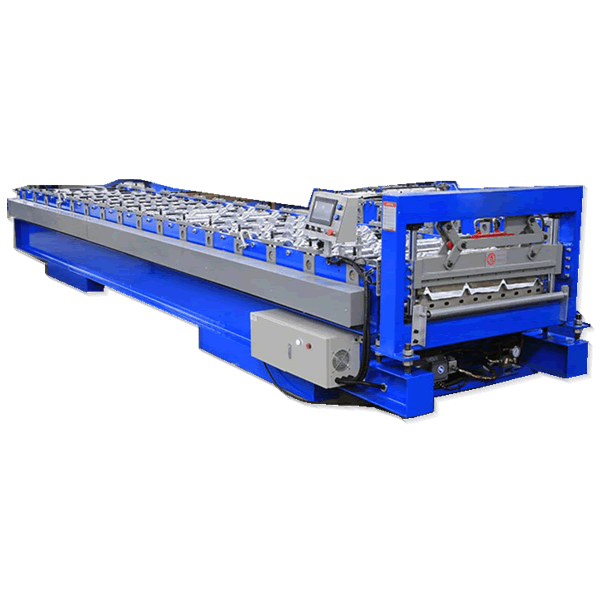

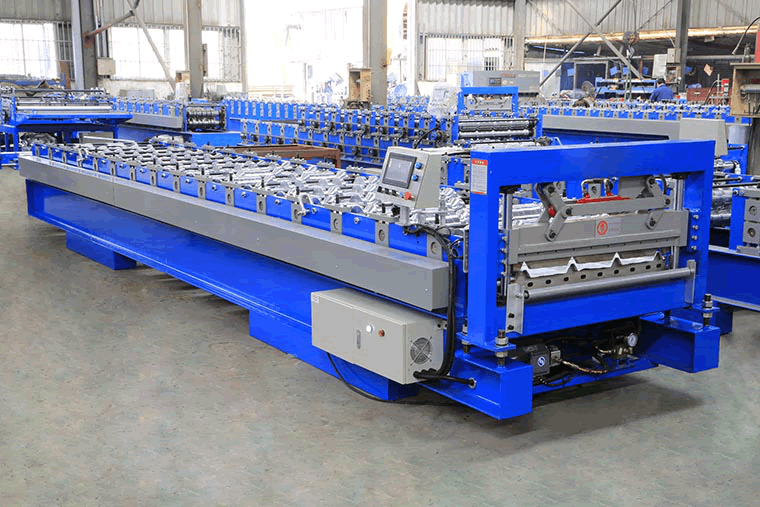

Based on the customer requirements and our experience, we design the ZT35-820 Profile Roof Panel Roll Forming Machine like following picture:



The ZT35-820 Profile Roof Panel Roll Forming Machine is composed by the following elements:

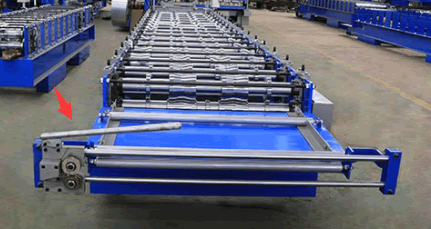

1.Roof panel machine pre-cutter

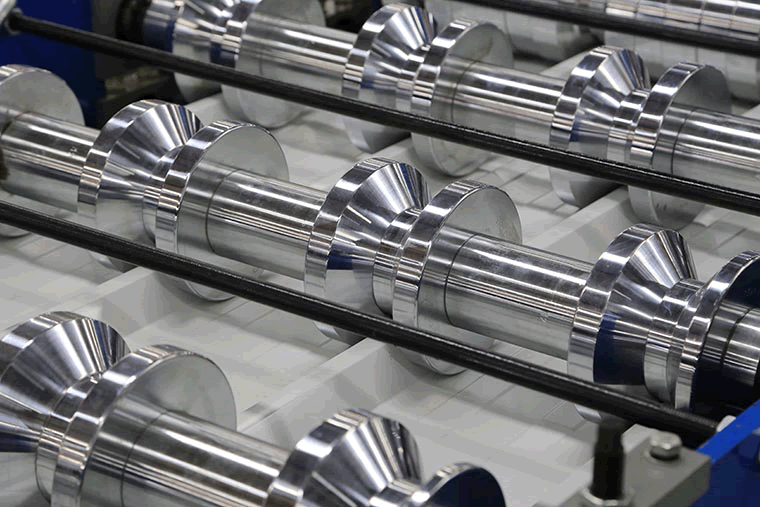

2.ZT35-820 Profile Roof Panel Roll Forming Machine rolling rollers

ZT roof panel rollers we use high quality 45# steel,CNC lathes, Heat Treatment for long time use

And we do black treatment or Hard-Chrome Coating for options.

Machine frame use350# H type steel by welding

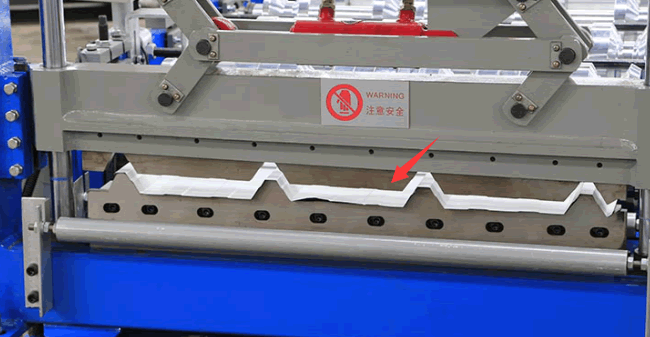

3.Shearing part of ZT35-820Profile Roof Panel Roll Forming Machine

It takes high quality mold steel Cr12 with heat treatment and the frame made from high quality 20mm steel plate by welding. The power we design Hydraulic motor:5.5KW, Hydraulic pressure range: 0-16Mpa

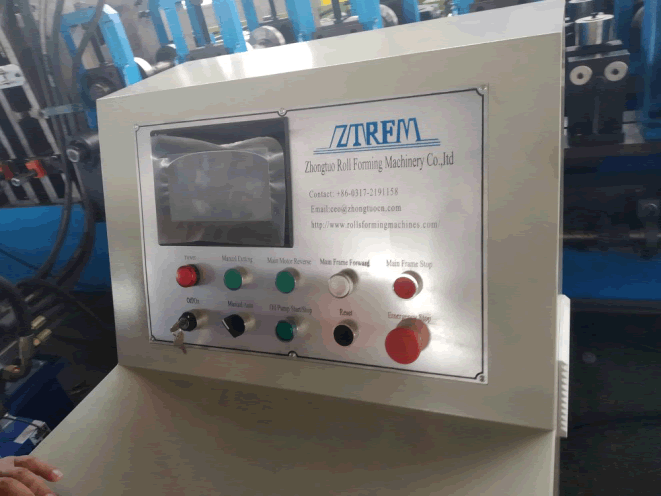

4.PLC operation system:

roof panel machine touching screen and control panel(Button brand :Schneider / screen brand Schneider)



ZT roofing panel machine advantages as follows:

1.It has low cost, light weight but high strength, short building period, and can re-cycle use

  1. It can save material ,no waste.
  2. It is Easy operation, low maintenance costand durable for long time to use.

ZT MACHINE give good after-sale service.

  1. The warranty of ZT35-820roof panel machineis 2 years after the client receives the machine. Within the two years, we will courier the replacement parts to the client free of charge.
  2. We offer technical support for the entire life of our machines.
  3. We can send our technicians to install and train the workers in the clients’ factories with extra cost.
