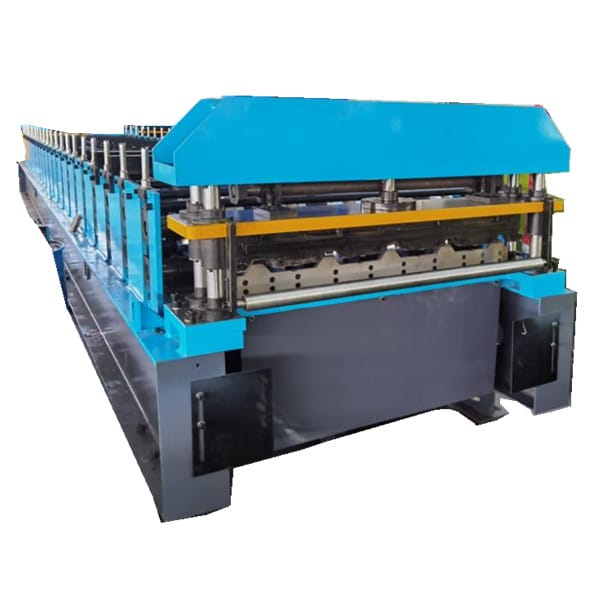

European Style Strong Screw-down Trapezoidal Roofing Sheet R

Category: roofing machineTag: Trapezoidal Roofing Sheet Rolling Forming Machine
Products Inquiry

PRODUCT INFORMATION

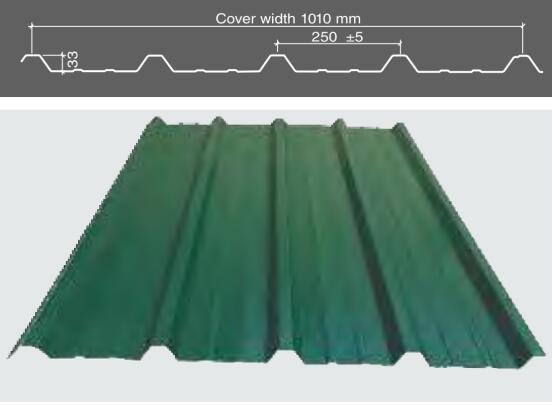

European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine is designed to make the metal roofing sheet in batch fully automatically. Here is the drawing profile for your reference:

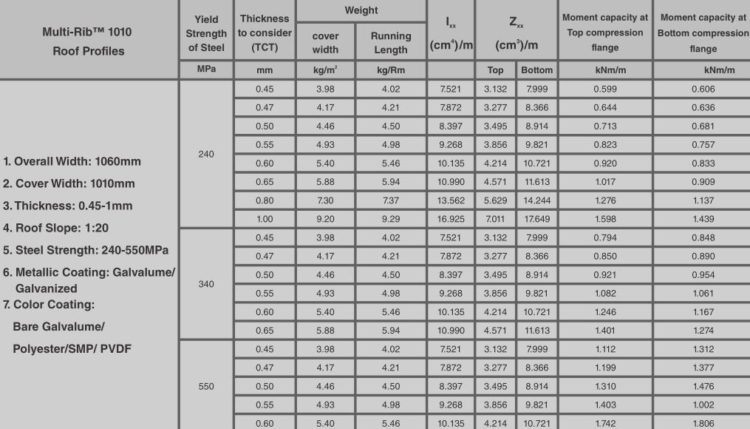

Detail information of European Style Strong Screw-down Trapezoidal Roofing Sheet:

Millions of square meters factories installed for projects like Indian Tata Motors,, Defence services, Railways, Power Plants in last 10 years, what it can benefit you?

  1. As it is Lightweight, Economical roof profile withexcellent design flexibility
  2. The wave height is 33mm height, 250 mm pitch with two stiffeningribs for easy water shedding.
  3. Cover width 1010mm & available upto 13m in length
  4. Full side lap corrugation gives extra support at panel overlap.
  5. Recommended roof-pitch 3°(1 in 20 or 5%)
  6. Matching light panels of FRP / Polycarbonate
  7. Optional: – Various kinds of under deck insulation



So Zhongtuo cold rolling forming machinery also make the machine of producing this European Style Strong Screw-down Trapezoidal Roofing Sheets, here are some machine pictures for your reference:



Some parameters of Trapezoidal Roofing Sheet Rolling Forming Machine:

Suitable material Q235 color steel sheet;0.3-0.7mm, 1000&1250mm coil width
Forming speed about 20m/min
Power Requirement Main motor power: 7.5 Kw(Depend on final design)
Hydraulic station power: 2.2Kw(Depend on final design)
Material of rollers No.45 steel, plated with chrome on surface.
Material of cutter Cr12 mould steel with quench treatment, HRC58-60
Material of shaft High quality 45# steel with heat treatment. Roller grinder milling.
Shaft diameter 80mm
Controlling system Mitsubishi PLC & converter
Total weight of machine About 8500KGS
Machines size about 15m,1.8m 1.5m (Depend on final design)
Shipping 1x40GP container can load one machine

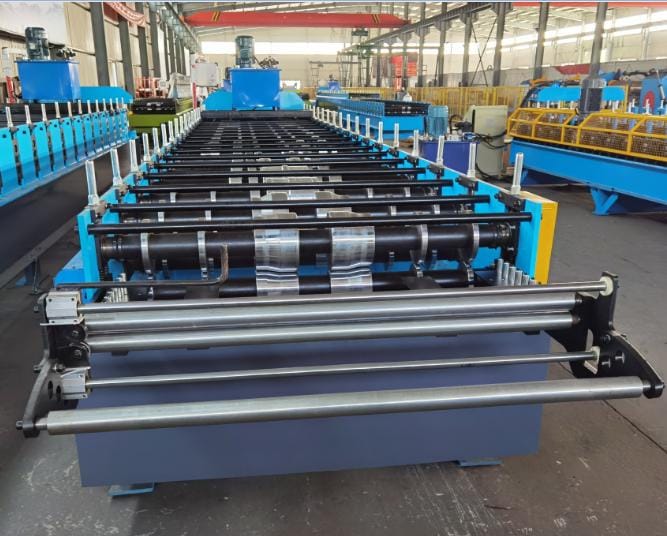

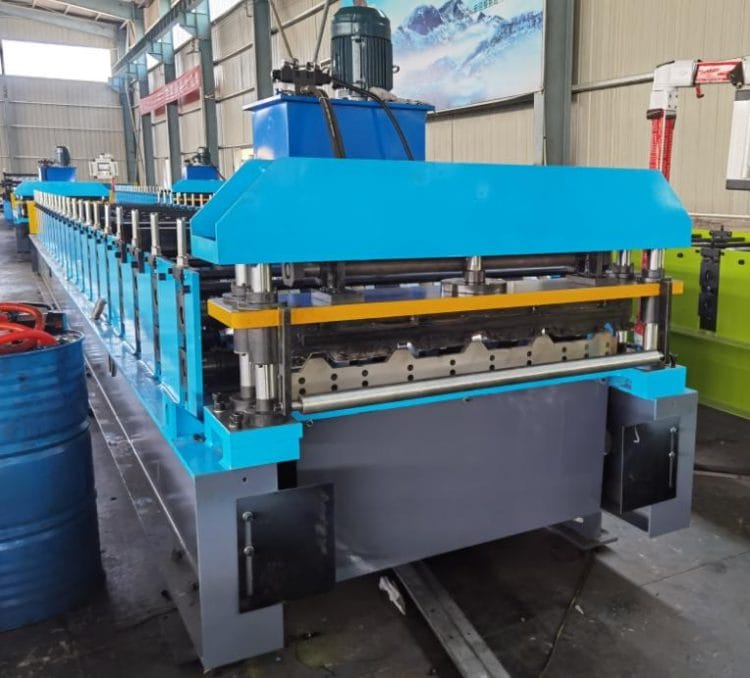

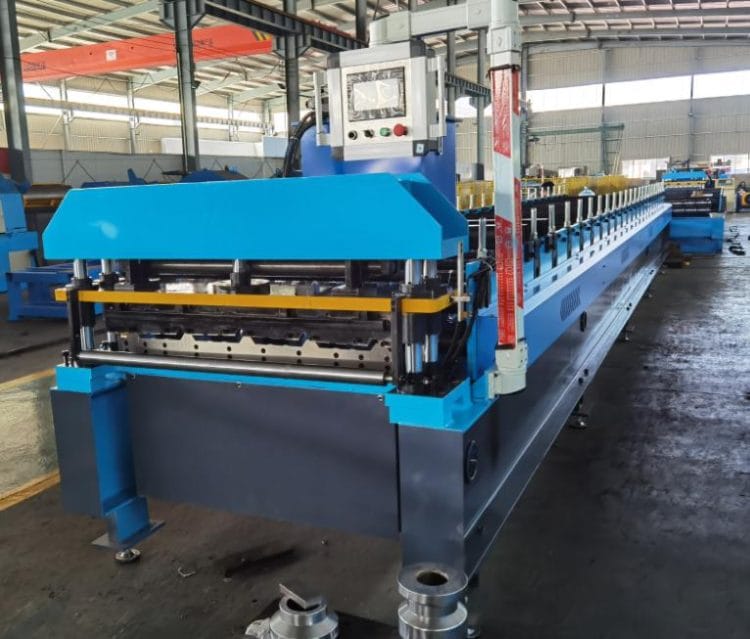

More details pictures of Trapezoidal Roofing Sheet Rolling Forming Machine:




Zhongtuo European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine features:

  1. For the machine design, we use the separated mold rolling forming. It can make sure the shape is good but not damage the surface of the raw material.
  2. It can do the rolling in the speed of 20 to 45 meter per minutes. Zhongtuo can design either slow speed or fast speed roofing sheet rolling forming machines.
  3. For machine, we design as easy installation. We will put all hydraulic station and electricity wire all together, when machine arrives, simple connection the main electricity within 5 minutes.



Here European Style Strong Screw-down Trapezoidal Roofing Sheet Rolling Forming Machine working video for your reference:
