ZT18-76.2-840 Profile Roof Panel Roll Forming Machine is designed for making the metal roof panel sheet production in batch fully automatically. Metal profile ZT18-76.2-840 is designed as:

The wave height is 18mm, the wave distance is 76.2 and the effective width is 840 and we use the input coil width is 1000mm. And this metal profile is popular in Europe, and other counties.

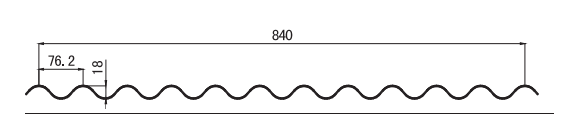

ZT18-76.2-840 Profile Roof Panel drawing profile for your reference:

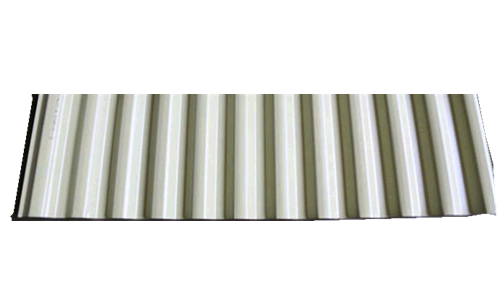

Finished product profile:

ZT18-76.2-840 Profile Roof Panel Roll Forming Machine is Suitable for processing material thickness 0.3-0.8mm. And the shafts manufactured from 45# ,Main shaft diameter 75 mm, precision machined. And as to the power motor driving,Gear chain transmission,20 steps to form.Main motor=7. 5KW，Frequency speed control. Forming speed approx. 12-15m/min

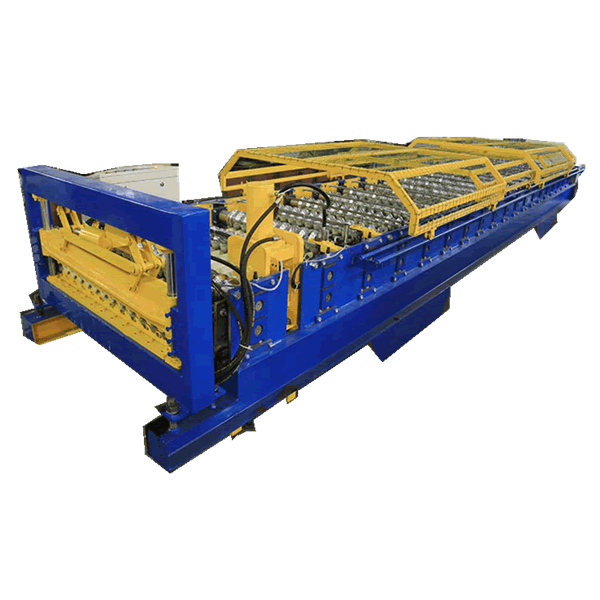

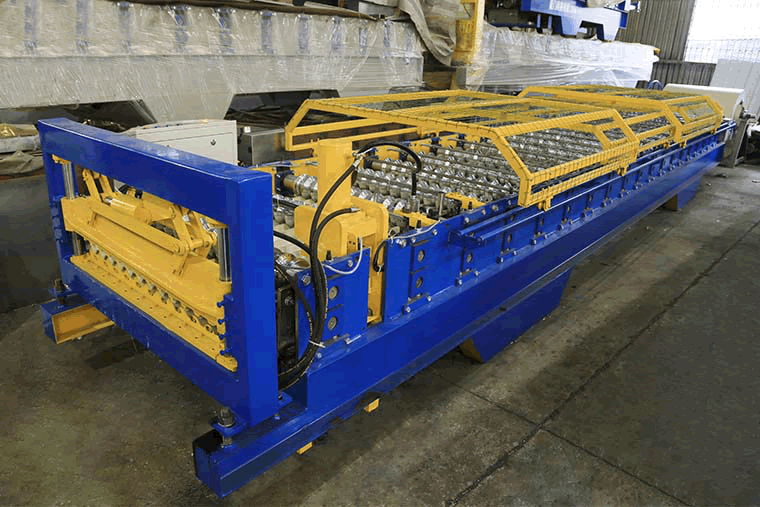

Based on the customer requirements and our experience, we design the ZT18-76.2-840 Profile Roof Panel Roll Forming Machine like following picture:

The ZT18-76.2-840 Profile Roof Panel Roll Forming Machine is composed by the following elements:

1.roof panel machine logo punching device

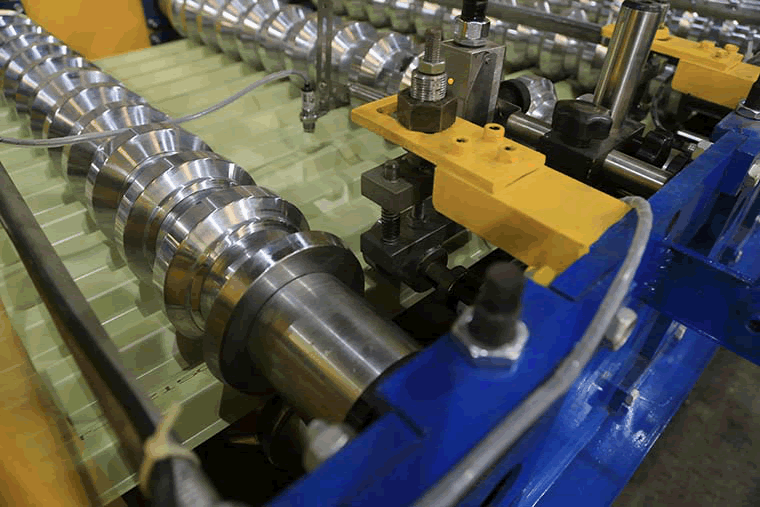

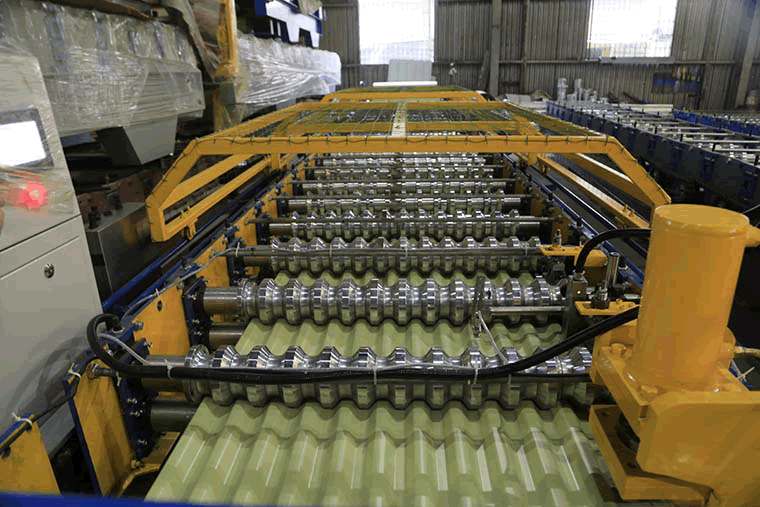

2.ZT18-76.2-840Profile Roof Panel Roll Forming Machine rolling rollers

ZT roof panel rollers we use high quality 45# steel，CNC lathes, Heat Treatment for long time use

And we do black treatment or Hard-Chrome Coating for options.

Machine frame use 400# H type steel by welding

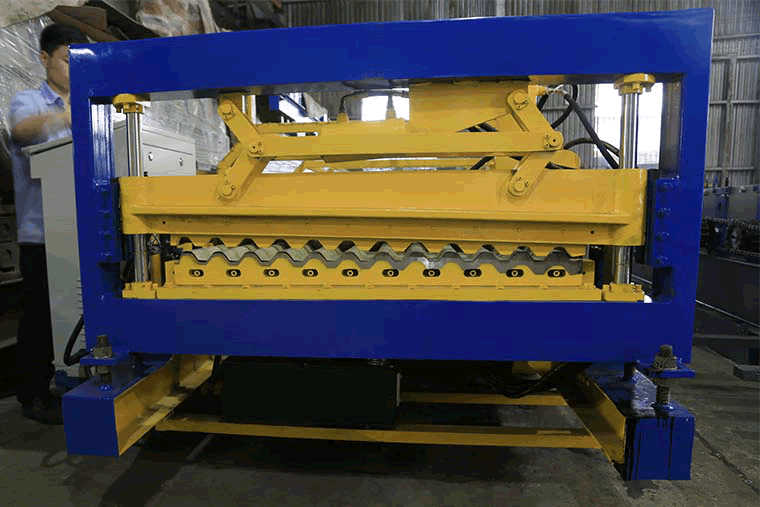

3.Shearing part of ZT18-76.2-840 Profile Roof Panel Roll Forming Machine

It takes high quality mold steel Cr12 with heat treatment and the frame made from high quality 20mm steel plate by welding. The power we design Hydraulic motor is 2 .2KW, Hydraulic pressure range is 0-16Mpa.

ZT roofing panel machine advantages as follows:

1.It can produce two different profiles with different input coil width .

2. It is Easy operation, low maintenance costand durable for long time to use.
3. Stable and durable

ZT MACHINE give good after-sale service.

1. The warranty of ZT18-76.2-840roof panel machineis 2 years after the client receives the machine. Within the two years, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients’ factories with extra cost.
