4 angles roofing roll forming machine

Introduction Our High speed IBR Roofing panel machine metal sheet roll forming machine will meet your production demand,the weight of the roofing panel is 40mm so it is called as TN40 which is very famous in Algeria. Profile drawings can be
Products Inquiry

PRODUCT INFORMATION

Introduction
Roofing roll forming machine also called a trapezoidal, rib type, spandek, trimdek, 4 angles roofing, waves roofing can create IBR roofing panels by forming metal/steel sheets. There are various rib-type profiles depending on the country, including 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, but the most common is the 5 rib type profile.

Our High speed IBR Roofing panel machine metal sheet roll forming machine will meet your production demand,the weight of the roofing panel is 40mm so it is called as TN40 which is very famous in Algeria. Profile drawings can be specified by customers to customized the machine.

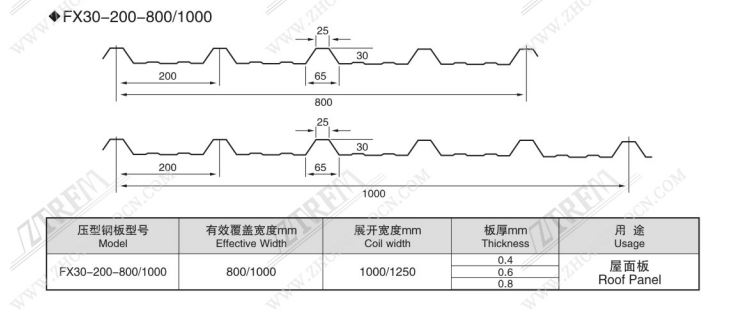

Profile Drawing



Machine Parameter

Roller stations
16 stations
Roller material
High grade 45# steel chrome treatment
Shaft material
40Cr soild steel
Shaft diameter
80mm
Working speed
30-40m/min
Hydraulic cutting blade
Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic cutting power
11kw
Hydraulic oil
46#
Servo motor power 5.5kw
Transmission
Gearbox
Voltage
380v 50hz 3phrase
Forming power motor
11kw
Machine structure 500# H beam
Color
 Blue & Yellow (Customize)

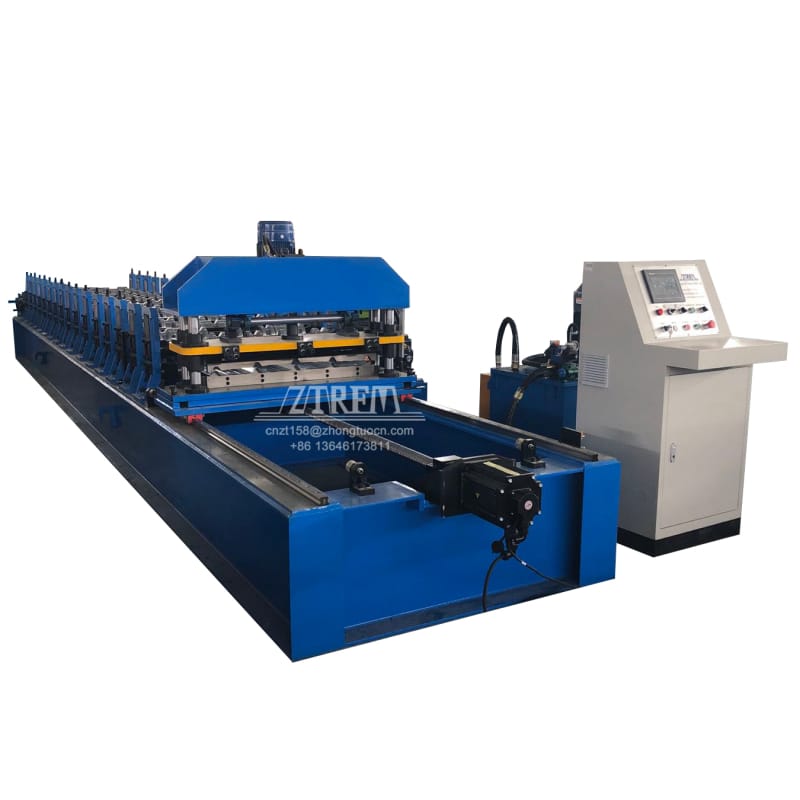

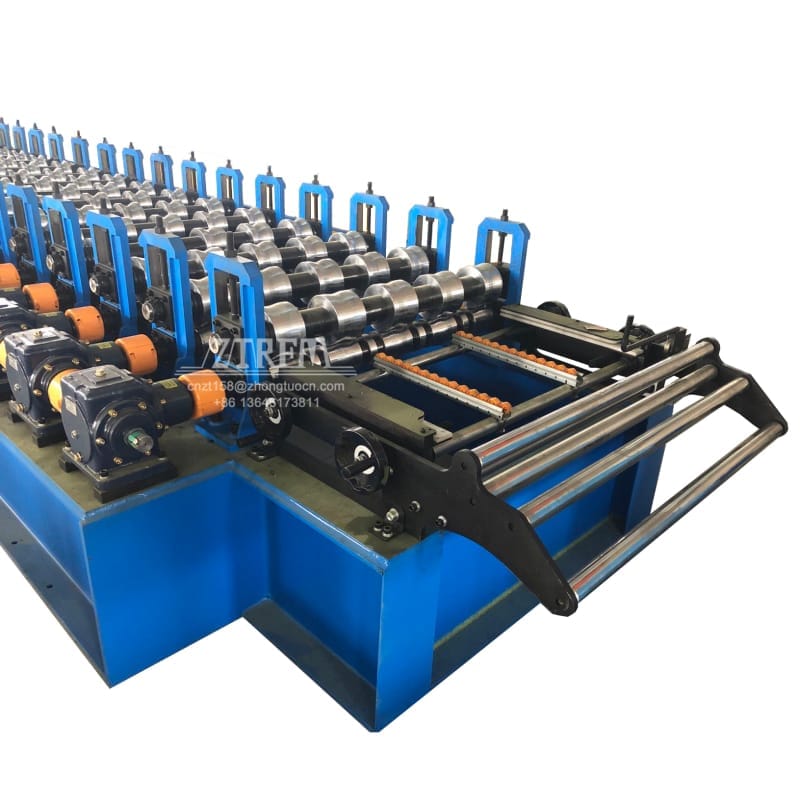

Machine Picture
