Monterry Tile metal step tile roofing sheet rolling forming

Monterry Tile metal step tile roofing sheet rolling forming machine Monterry Tile metal step tile roofing sheet rolling forming machine is designed to make the metal step tile in batch fully automatically. Steel Tile Roll Forming Machine is
Products Inquiry

PRODUCT INFORMATION

Monterry Tile metal step tile roofing sheet rolling forming machine

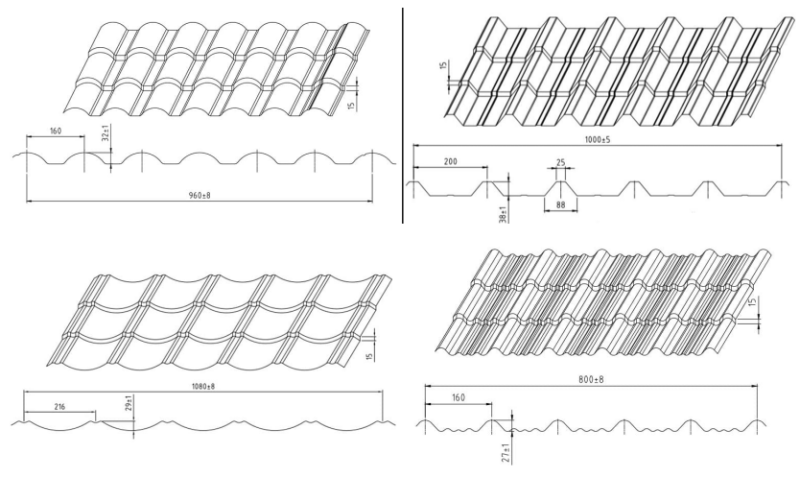

Monterry Tile metal step tile roofing sheet rolling forming machine is designed to make the metal step tile in batch fully automatically. Steel Tile Roll Forming Machine is a whole automatic line to produce steel tiles. The workers only need input the desired data( length, quantity, step length) on the touch screen. Here are some popular designed for your reference: Profiles of roofing tile forming machine 1.Versatile step tile roofing sheet machine 2.C-tile step tile roofing sheet machine 3.Monterrey step tile roofing sheet machine 4.European type tile step tile roofing sheet machine 5.Mondarin profile step tile roofing sheet machine 6.Metecoppo tile step tile roofing sheet machine 7.Teja step tile roofing sheet machine 8.Galvateja step tile roofing sheet machine Drawing profiles for example: at the bottom website, we will list more of them for your to choose.

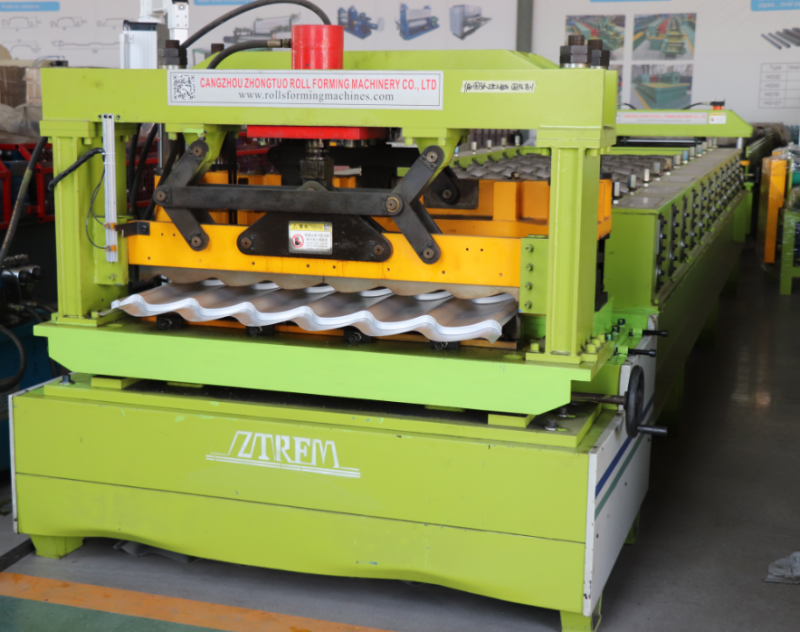

Metal step tile roofing sheet rolling forming machine:

Advantage of Monterry Tile metal step tile roofing sheet rolling forming machine： 【Strong Frame】Use box frame, long shaft and big mold, when working more safe and long time to use. 【High Efficiency】working speed about 6m/min .one shift or 8 hours can Produce 2880m or about 12-15ton coils 【Long Life use】90mm shaft and big mold. 500 based frame. 【High Precision】high precision controlled by Mitsubishi system guarantee tiles connect very closely to avoid water leakage. 【Automatic & Easy Operation】Safe and easy to operate with Mitsubishi control system. 【excellent service】Technicians and engineers can be sent to your factory to install the machine and train your workers if you required

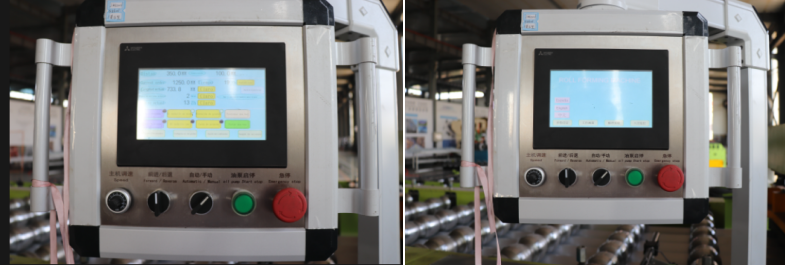

Portable PLC for easy to use:

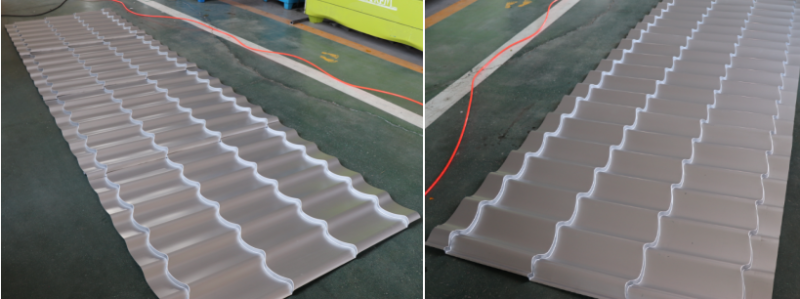

Step tile making machine
1.Formed Material
PPGI,GI,AI
Thickness:0.3-0.6mm
2.Decoiler
Hydraulic automatic decoiler
Manual decoiler(will give you as free）
3.Main body

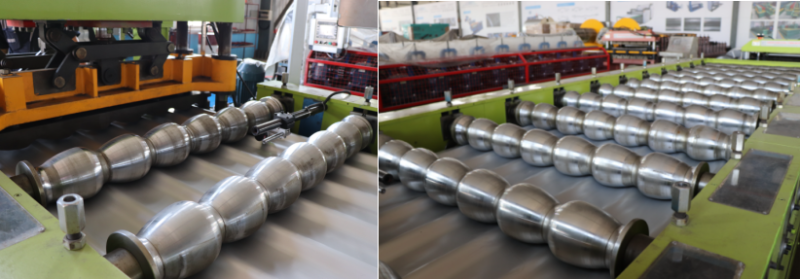

Roller station
18 rows(As your requirement)
 Diameter of shaft
80mm solid shaft
Material of rollers
45# steel, hard chrome plated on the surface
Machine body frame
350 H steel
Drive
Chain transmission
Dimension(L*W*H)
9500*1600*1600(customize)
Weight
6.5T
4.Cutter
Automatic
cr12mov material, no scratches, no deformation
5.Power
Motor Power
5.5KW
Hydraulic system power
5.5KW
6.Voltage
380V 50Hz 3Phase
As your requirement
7.Control system
Electric Box
Customized(famous brand)
Language
English(Support multiple languages)
PLC
Automatic production of the whole machine. Can set batch, length, quantity, etc.
18.Forming Speed
15-20m/min
The speed depends on the shape of the tile and the thickness of the material.

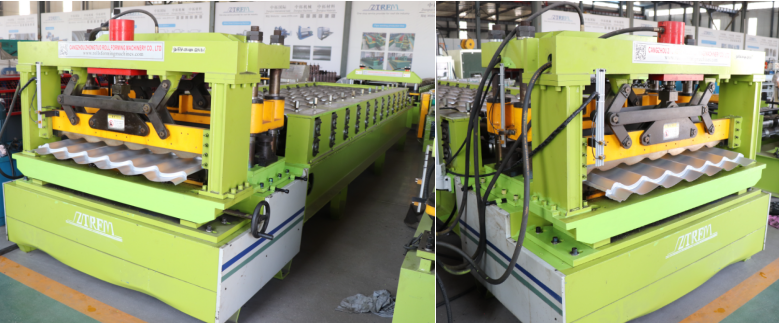

Strong shearing system: Compared with pillar frame, this type is more strong and steady.
