Picket Fence Rolling Forming Machine for Russia

Picket fences are a type of fence often used decoratively for domestic boundaries, distinguished by their evenly
Products Inquiry

PRODUCT INFORMATION


Introduction

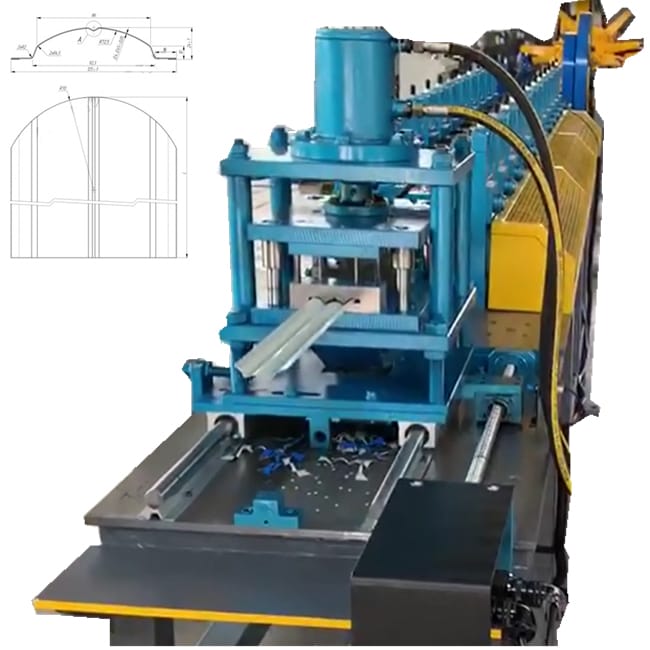

Picket fence rolling forming machine for Russian is designed to make the metal fence in batch fully automatically. Picket fences are a type of fence often used decoratively for domestic boundaries, distinguished by their evenly spaced vertical boards, the pickets, attached to horizontal rails. Picket fences are particularly popular in the United States, with the white picket fence coming to symbolize the ideal middle-class suburban life. Here are some popular drawing profile for your reference:

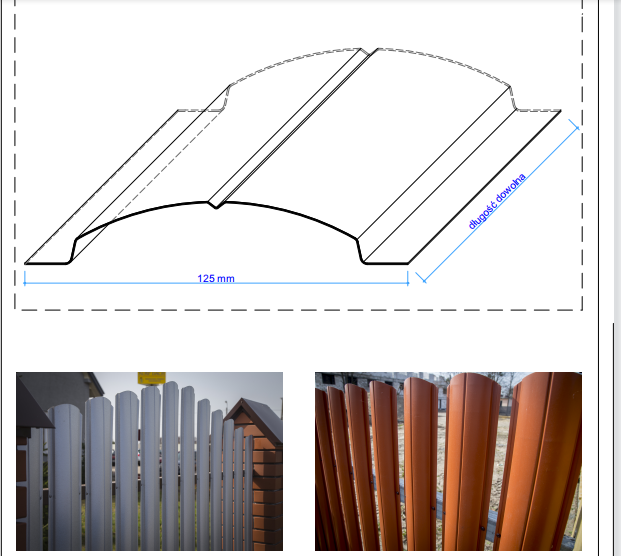

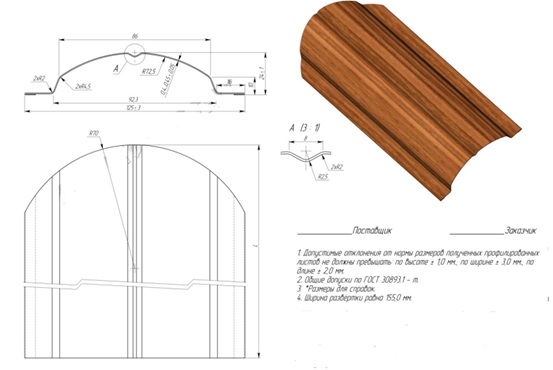

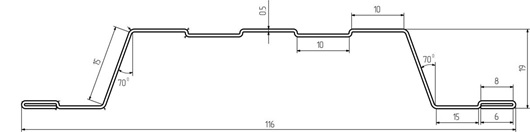

Profile Drawing



Machine Parameter


Roller stations 12 station
Roller material Gr12 Mov
Shaft material 45# solid steel
Shaft diameter 60mm
Working speed 25m/min
Hydraulic cutting blade Gcr 12 Mov Chromed and quenched HRC 58-62
Hydraulic Cutting Power 3kw
Hydraulic Oil 46#
Transmission Gear
Electricity 380V, 50HZ, 3 Phrase (Customizable)
Forming motor power 5.5kw
Machine Frame Middle plate 25mm
Color Blue & Yellow (Customizable)

Advantages of Picket Fence Roll Forming Machine:

1. Speed can reach up to 25m/min

2. Molding frame thickness of 25 to 35mm

3. Roller use Gcr12 for long life time

4. Hydraulic shearing can cut and punch bose for connection

5. PLC system can set specific length within 0.5mm error

6. Treated roolers will not damage the coil

7. Strong base frame for stebility

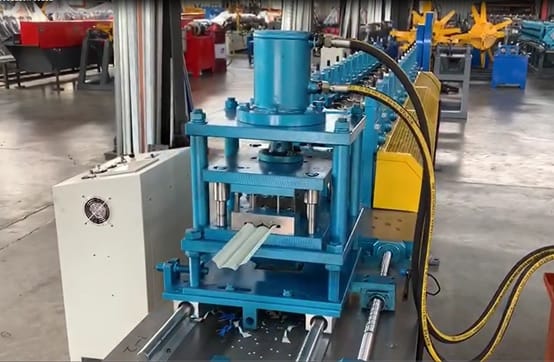

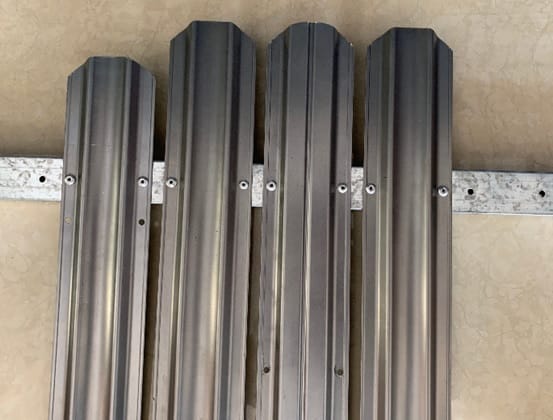

Pictures




Other Types of Fences


Popular Fence Rolling Forming Machine for Russian is designed for the Russian market. The machine can do the rolling forming in the speed of 25 meter per minute. It can do the lace shearing, connection holes punching all together. It is more durable and long time to use. Use Gcr12mov as mold for long time to use. For this machine, if you want to know more information, please contact us as soon as possible. Contact: 00861515613740026 Email: cnzt007@zhongtuocn.com
