Highway Guard W beam Cold Rolled Forming Machine

Source:未知Author:admin Addtime:2023-06-20 Click:

This Highway Guardrail & Crash Barrier Roll Forming Line is designed and produced for European Customer in 2016. The video recorded the roll-forming equipment working in the customer's factory. It manufactures Freeway Road Guardrails & Barriers automatically from galvanized steel coil and black oxide steel coil. In the production line, both 2-waves （W-Beam） and 3 waves (Thrie-Beam) vehicular guardrails are able to be produced by interchangeable cassettes (raft-type / plate type roll forming). The roadside railing system mainly consists of guard rail beams (W-Beam or Thrie-Beam , posts uprights ( C / U / Sigma), and other parts. it is a safety barrier system for running vehicles on the roads. This line consists of an uncoiler, flattener, servo-feeding, hole-punching system,pre-cut off, roll former, and automatic stacking system. The automatic stacking machine conveys the finished guardrails and side-transport them to the unloading position, forklift lifts the guardrail piles and loads them into the trucks. Safety barriers around the machine are also available for customers. This roll forming line is modular-designed and is available to ship by container transportation. Brother Union Machinery experts in Roll Forming Machine and Lines Design and Manufacturing, we provide rollforming equipment in a variety of industries. Guardrail and Barrier Production. Steel Door Frame Production. Garage Door Production. Automotive metal forming. Storage Shelving and Racking Production. Solar Framing and Racking. Stud & Track, Purlin Production. Roofing and Wall Siding，Decking Rollforming. and other custom rollforming machinery. Brother Union, providing a complete metal rollforming solution with High Quality.

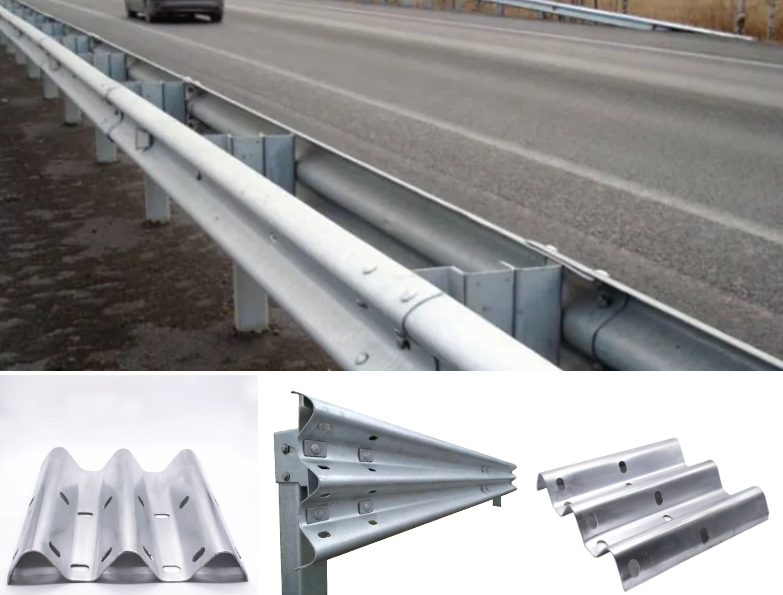

Highway Guard Rail Two Wave or W beam Cold Rolled Forming Machine is designed to make the W beam or two wave guardrail in batch fully automatically.Highway collision avoidance facilities, isolation and other facilities. Mainly used for traffic security projects such as highways, primary and secondary roads, provincial roads, county roads and rural road scenic spots, large parking lots, etc.

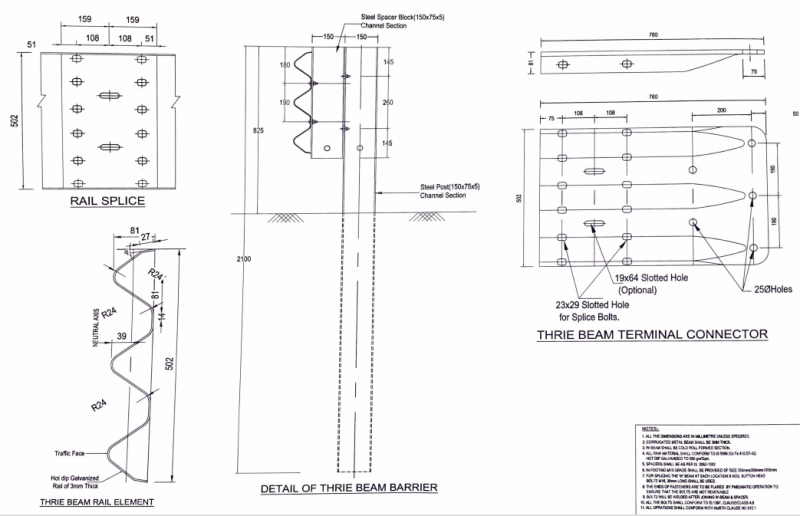

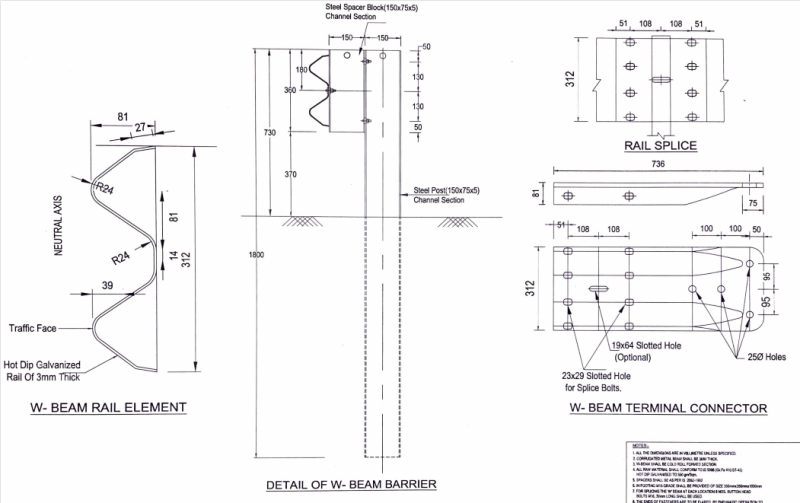

Here are some highway guardrail drawing profiles for your reference:

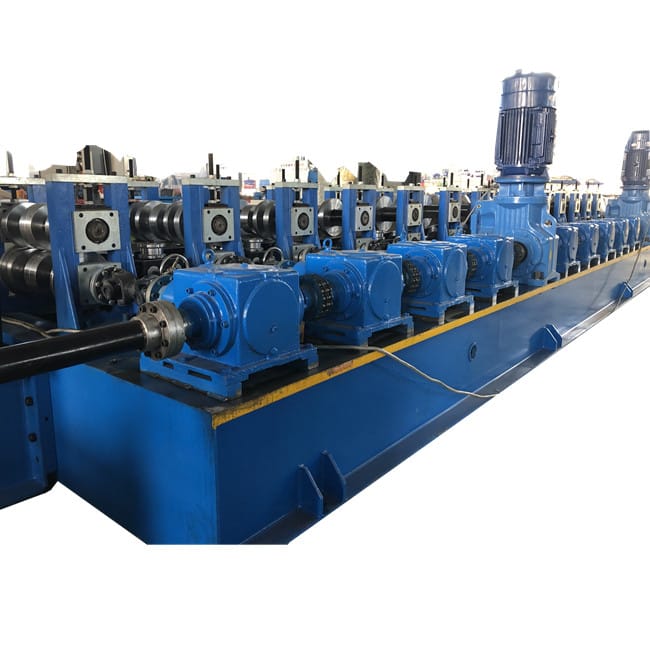

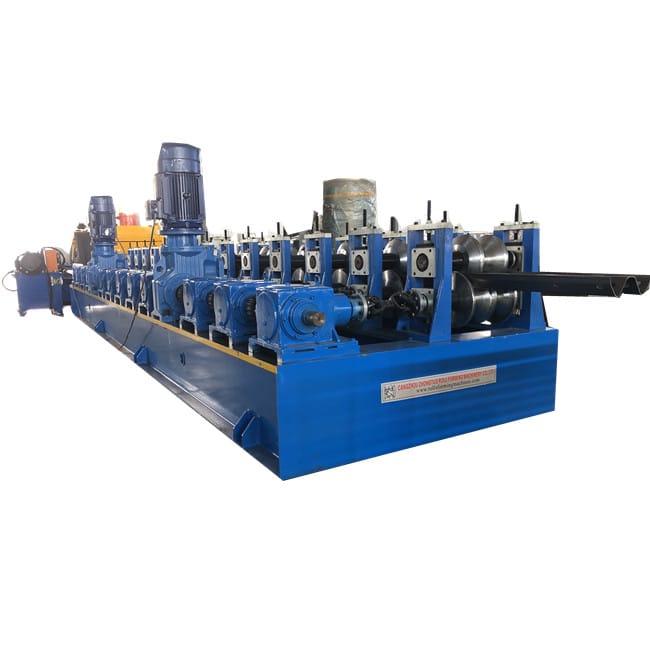

Highway Guard Rail Two Wave or W beam Cold Rolled Forming Machine:

For the guardrail machine design, we have the following types for your reference:

Two wave guardrail rolling forming machine.
Three wave guardrail rolling forming machine.
Two and three wave guardrail rolling form machine.

As to the machine design whole working flow, it could be designed as before shearing and after shearing.

The difference of before shearing and after shearing lies in that:

Before shearing will be a little faster than the after shearing.

If two types supported, no need to change the cutting blade.

But before shearing end and start will be a little sizes error.

For the transmission part, we can use the gearbox type or the middle plate chain transmission

Working flow of guardrail rolling forming machine :

Uncoiling ð Alignment guiding roller ð 9 rollers leveling ð hydraulic punching hole ð Panel Transport table ð Swift sheet feeding ð Photoelectrical switch ð Roller guiding table ð 15 stations roll forming ð Finished product support table.

Features for Highway Guard Rail Two Wave or W beam Cold Rolled Forming Machine

As to the decoiler, you can choose manual one or the hydraulic one.

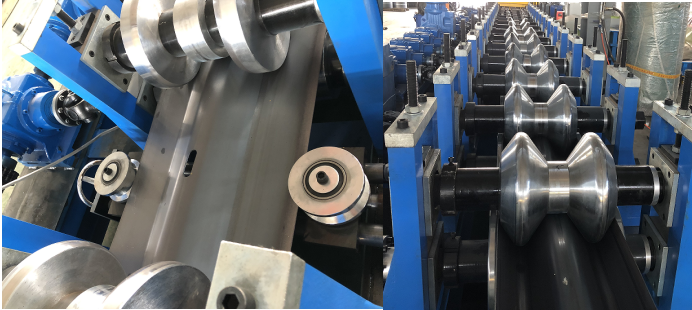

For the roller material, we use G2 or SKD11 material for long time to use.
For the frame, we use the molding frame.

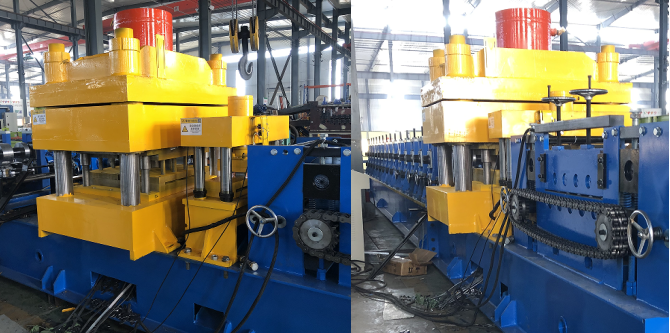

For the punching, we use before punching and PLC control.
For the based frame, solid steel and steady and long time to use.
Before shearing and after shearing both optional.
